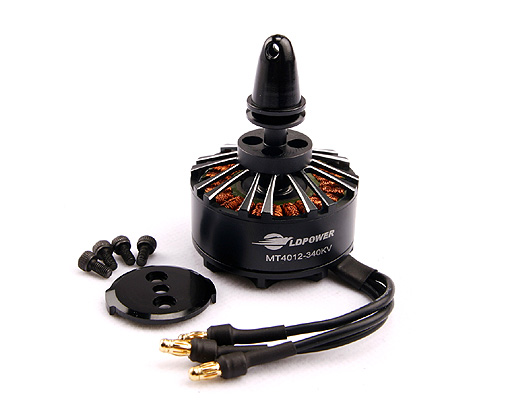

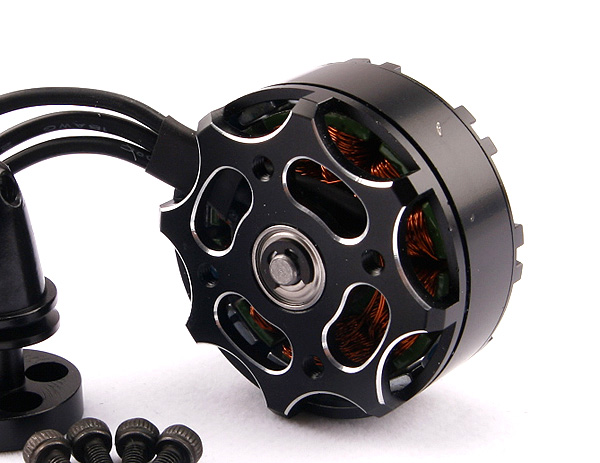

LD-Power MT4012 340KV Brushless Motor for Multicopter (3-6S)

SKU: MT401234

Browse LD-Power

LD-Power MT4012 340KV Brushless Motor for Multicopter (3-6S)

Customers rating.

Add To Wish List

Added:2013/12/05
Updated:2013/12/05

Follow Us on:

Follow @HiModel

Tags: multi-rotor brushless motor ldpower

Specifications:

LD-Power MT4012 340KV Brushless Motor for Multicopter (3-6S)

Model	MT4012
Motor Diameter	45mm
Motor Length	33mm
Stator Diameter	40mm
Stator Length	12mm
Shaft	4mm
Weight	135g
Batteries	4-8Cells
No Load Current	0.9A

Prop Test Data MT4012-340KV
Voltage(V)	Propeller (inch)	Throttle	Current (A)	Watts(W)	Thrust(g)	RPM (RPM/Min)	Efficiency (G/W)
18.5	APC14*4.7	50%	2.4	44.64	600	3220	13.44
		65%	4.4	81.84	900	3840	11.00
		75%	6.5	120.9	1200	4450	9.93
		85%	8	148.8	1350	4745	9.07
		100%	10.5	195.3	1600	5110	8.19
	DJI15*5	50%	2.5	46.5	600	3255	12.90
		65%	4	74.4	800	3880	10.75
		75%	6	111.6	1150	4550	10.30
		85%	7	130.2	1300	4850	9.98
		100%	9	167.4	1550	5300	9.26
	JXF 16*8	50%	3	66.6	670	2950	10.06
		65%	5	111	1000	3530	9.01
		75%	7.5	166.5	1400	4110	8.41
		85%	10	222	1600	4450	7.21
		100%	12.7	281.94	1900	4800	6.74
22.2	APC14*4.7	50%	3.5	77.7	800	3690	10.30
		65%	5	111	1100	4350	9.91
		75%	8	177.6	1500	5000	8.45
		85%	10.5	233.1	1800	5400	7.72
		100%	13.5	299.7	2100	5850	7.01
	DJI15*5	50%	2.8	62.16	750	3650	12.07
		65%	4	88.8	1050	4355	11.82
		75%	7	155.4	1400	5100	9.01
		85%	9.5	210.9	1760	5675	8.35
		100%	11.5	255.3	2050	6075	8.03
	JXF 16*8	50%	3.8	84.36	900	3365	10.67
		65%	6.5	144.3	1300	4085	9.01
		75%	10	222	1780	4685	8.02
		85%	12.8	284.16	2100	5110	7.39
		100%	16.5	366.3	2450	5475	6.69

Includes/Requires:

Includes:
1 x motor
1 x prop adaptor
1 x prop holding down plate
4 x screws
