LD-Power MT4014 330KV Brushless Motor for Multicopter (3-6S)

SKU: MT401433

Browse LD-Power

LD-Power MT4014 330KV Brushless Motor for Multicopter (3-6S)

Customers rating.

Add To Wish List

Added:2013/12/05
Updated:2013/12/05

Follow Us on:

Follow @HiModel

Tags: multi-rotor brushless motor ldpower

Specifications:

LD-Power MT4014 330KV Brushless Motor for Multicopter (3-6S)

Model	MT4014
Motor Diameter	45mm
Motor Length	35mm
Stator Diameter	40mm
Stator Length	14mm
Shaft	4mm
Weight	155g
Batteries	4-8Cells
No Load Current	1.1A

Prop Test Data MT4014-330KV
Voltage(V)	Propeller (inch)	Throttle	Current (A)	Watts(W)	Thrust(g)	RPM (RPM/Min)	Efficiency (G/W)
18.5	APC14*4.7	1	18.5	270	2135	14.59
		2	37	460	2780	12.43
		3	55.5	630	3225	11.35
		4	74	790	3600	10.68
		5	92.5	920	3880	9.95
		6	111	1050	4070	9.46
		7	129.5	1200	4300	9.27
		8	148	1300	4465	8.78
		9	166.5	1400	4635	8.41
		10	185	1500	4800	8.11
		11	203.5	1600	5000	7.86
		12	222	1700	5150	7.66
		100%	12.4	229.4	1750	5200	7.63
	DJI15*5	1	18.5	300	2150	16.22
		2	37	500	2850	13.51
		3	55.5	650	3390	11.71
		4	74	810	3755	10.95
		5	92.5	950	4080	10.27
		6	111	1100	4375	9.91
		7	129.5	1200	4630	9.27
		8	148	1370	4860	9.26
		9	166.5	1500	5100	9.01
		10	185	1600	5250	8.65
		100%	10.8	199.8	1690	5400	8.46
	17*5.5 Carbon prop	1	18.5	300	1855	16.22
		2	37	500	2500	13.51
		3	55.5	700	2825	12.61
		4	74	850	3130	11.49
		5	92.5	1000	3360	10.81
		6	111	1200	3580	10.81
		7	129.5	1300	3800	10.04
		8	148	1400	4000	9.46
		9	166.5	1500	4090	9.01
		10	185	1650	4250	8.92
		11	203.5	1750	4350	8.60
		12	222	1850	4500	8.33
		13.5	249.75	2000	4650	8.01
		100%	15.8	292.3	2200	4850	7.53
22.2	APC14*4.7	1	22.2	300	2300	13.51
		2	44.4	500	3000	11.26
		3	66.6	710	3450	10.66
		4	88.8	900	3800	10.14
		5	111	1050	4000	9.46
		6	133.2	1200	4500	9.01
		7	155.4	1300	4600	8.37
		8	177.6	1450	4700	8.16
		9	199.8	1590	4870	7.96
		10	222	1690	5000	7.61
		11	244.2	1800	5170	7.37
		12	266.4	2000	5300	7.51
		13.5	299.7	2070	5500	6.91
		100%	16	355.2	2300	5900	6.48
	JXF 15*6	1	22.2	280	2200	12.61
		2	44.4	500	2900	11.26
		3	66.6	700	3500	10.51
		4	88.8	860	3800	9.68
		5	111	1050	4250	9.46
		6	133.2	1200	4400	9.01
		7	155.4	1300	4600	8.37
		8	177.6	1450	4900	8.16
		9	199.8	1600	5150	8.01
		10	222	1700	5350	7.66
		11	244.2	1850	5400	7.58
		12	266.4	1950	5600	7.32
		13	288.6	2100	5800	7.28
		100%	15	333	2300	6000	6.91

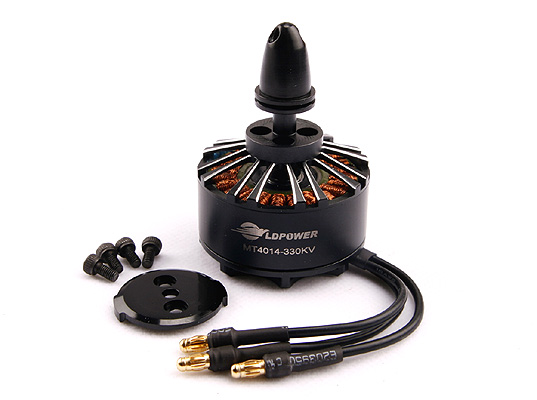

Includes/Requires:

Includes:
1 x motor
1 x prop adaptor
1 x prop holding down plate
4 x screws
