Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.
   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner LD-Power MX1804 2480KV 2-3S Brushless Motor CW/CCW Set for Multicopter
   Multi-rotors Motors
SKU:  180424
Browse LD-Power
LD-Power MX1804 2480KV 2-3S Brushless Motor CW/CCW Set for Multicopter
Customers rating.
Add To Wish List
Added:2015/03/24
Updated:2015/03/24
Follow Us on:



  Tags: multi-rotor  brushless motor  ldpower

Specifications:

LD-Power MX1804 2480KV Brushless Motor CW/CCW Set for Multicopter

Model MX1804
Motor  Diameter 22.8mm
Motor Length 12.8mm
Stator Diameter 18mm
Stator Length 4mm
Shaft Diameter 3mm
Weight 12.5g
Batteries 2-3 Cells
No Load Current 0.3A
Mounting Hole Spacing 12mm/ 12mm


Testing result:
Voltage: 11.1V
Prop: 5x3 inch
Throttle position: 100%
Current: 7.1A
Power: 78.8W
Pull: 300g
RPM: 17200
G/W ratio: 3.8

Includes/Requires:
Includes:

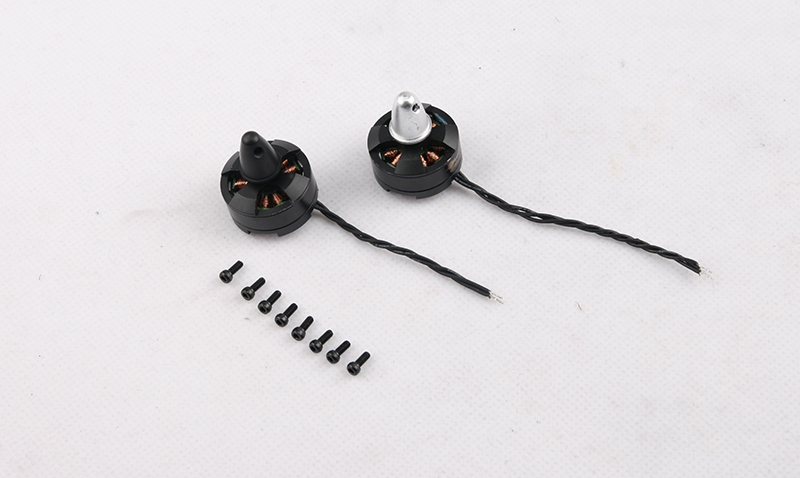

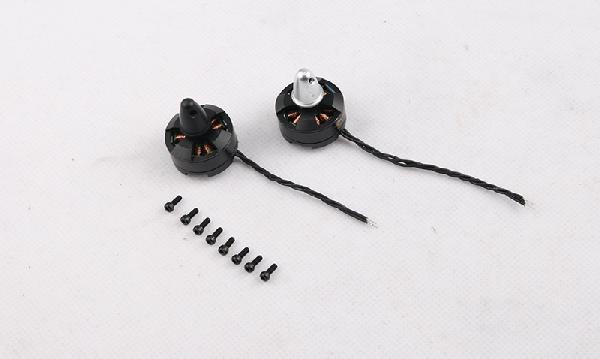

1 x CW  motor with prop adaptor
1 x CCW motor with prop adaptor
8 x screws
