LDPower LD2216M 900KV Outrunner Brushless Motor for Multi-rotor

Lithium Polymer (Li-poly) & Ni-Mh battery packs, battery chargers, Electric (Brushless) Motors, Electric Speed Controllers ( ESC ), Gyros, Electric Accessories etc.

Model	LD2216M
Motor Diameter	27.8mm
Motor Length	34mm
Stator Diameter	22mm
Stator Length	16mm
Shaft	3mm
Weight	75
Batteries	3-4Cells
No Load Current	0.3A

Prop Test Data LD2216M KV900
Voltage(V)	Propeller (inch)	Throttle	Current (A)	Thrust(g)	RPM (RPM/Min)	Power(W)
11.1	APC10*3.8	50%	2.7	370	4431	29.97
		65%	4.5	480	5135	49.95
		75%	7.9	670	6000	87.69
		85%	10.1	780	6360	112.11
		100%	12.4	900	6762	137.64
	APC11*4.7	50%	3	390	3875	33.3
		65%	5.6	550	4705	62.16
		75%	8.6	730	5298	95.46
		85%	12.1	890	5768	134.31
		100%	14.7	1000	6154	163.17
	APC12*3.8	50%	4	500	3780	44.4
		65%	6.8	670	4345	75.48
		75%	11.3	870	4940	125.43
		85%	13.3	940	5108	147.63
		100%	17.3	1100	5451	192.03
14.8	APC10*3.8	50%	4.2	540	5400	62.16
		65%	7.1	740	6240	105.08
		75%	11.4	980	7097	168.72
		85%	13.8	1060	7400	204.24
		100%	18.1	1280	7945	267.88

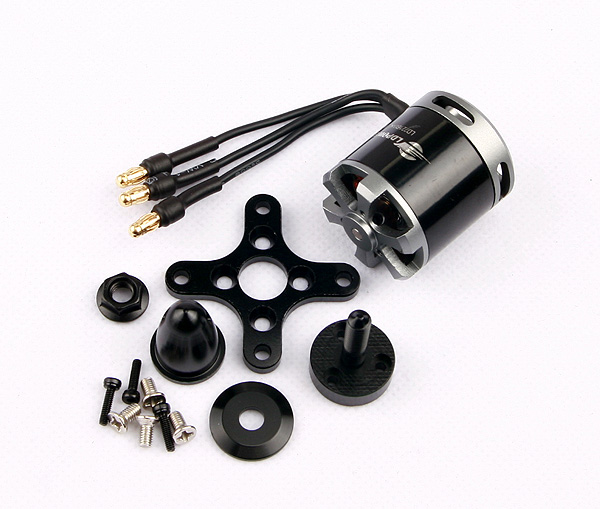

Includes:
1 x motor
1 x prop adaptor
1 x motor mount
4 x prop adaptor screws
