   Electric Battery Chargers & Battery Accessories Lithium Polymer Battery ( Li-Poly, LIPB) Chargers SKYRC/IMAX 100-240V 1-6S 6A LiPo/NiMh/LiFe Balance Charger E-6650
SKU:  E-6650
Browse SKYRC

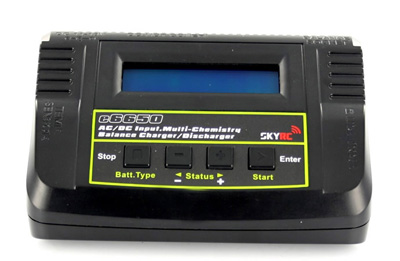

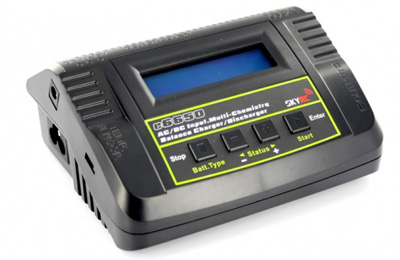

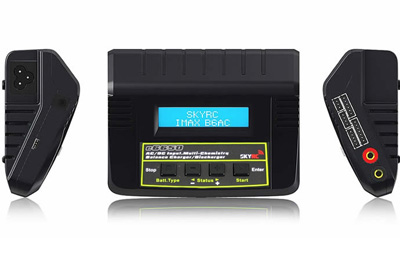

SKYRC/IMAX 100-240V 1-6S 6A LiPo/NiMh/LiFe Balance Charger E-6650
Customers rating.
Manual:
Add To Wish List
Added:2011/04/22
Updated:2011/05/25
Follow Us on:


  Tags: SKYRC  IMAX  1-6S  Balance Charger  LiFe charger  A123 compatible

Features:
Optimized operating software



e6650 features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!



Internal independent lithium battery balancer

e6650 employs an individual-cell-voltage balancer. It isn’t necessary to connect an external balancer for balance charging.

Balancing individual cells battery discharging

During the process of discharging, e6650 can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.

Adaptable to various type of lithium battery

e6650 is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.

Fast and storage mode of lithium battery

Purposes to charge Lithium battery varies, ‘fast’ charge reduce the duration of charging, whereas ‘store’ state can control the final voltage of your battery, so as to store for a long time and

protect useful time of the battery.

Maximum safety

Delta-peak sensitivity: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically.

Automatic charging current limit

You can set up the upper limit of the charging current when charging your NiCd or NiMH battery; it is useful for the NiMH battery of low impedance and capacity in the 'AUTO' charging mode.

Capacity limit

The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.

Temperature threshold*

The battery’s internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated. * This function is available by connecting optional temperature probe, which is not included in our package.

Processing time limit:

You can also limit the maximum process time to avoid any possible defect.

Input power monitoring

To protect the car battery used as DC input power from being damaged, its voltage keeps being monitored. If it drops below the lower limit, the process will be ended automatically.

Data store/load

The maximum five batteries’ data can be stored for users’ convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.

Cyclic charging/discharging

1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is operable for battery refreshing and Balancing to stimulate the battery's activity.
Specifications:
Specifications:

AC Input: 100-240Volt
DC Input: 11-18Volt
Circuit Power: Max. Charge Power 50W
Max. Discharge Power 5W
Charge Current Range: 0.1-6.0A
Discharge Current Range: 0.1-1.0A
Current Drain For Balancing LiPo: 300mA/cell
NiCd/NiMH Battery Cell Count: 1-15Cells
LiPo/LiFe/Lilon Cell Count: 1-6Cells
Pb battery voltage: 2-20V
Net Weight: 433g
Dimension: 135x112x60.9mm

AC plug type: EU (Two round pin)

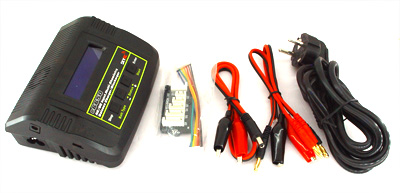

Includes/Requires:
