FEATURES

Measures energy (Wh), charge (Ah), power (W), current (A) and voltage (V)
Measures peak Amps, peak Watts ,voltage minimum (sag), peak temperature.
Measures temperature in both Celsius & Fahrenheit (optional temperature probe is necessary)
Auxiliary battery to power watt meter for measurement down to 0V
Accurate & precise – 0.01 A current and 0.01V voltage resolutions
Rugged – handles 50 A continuous and 100 A peak at 60V
Small & light with a tough plastic case
Precision Alu-Chrom current sensing resistor, with only 0.001 Ohms resistance
Factory calibration stores constants in EEPROM to compensate for component tolerances

APPLICATION

Watt Meter measures current, voltage, peak current (Amps), peak power (Watts), minimum voltage (Volts), power (Watts), energy (Watt-hours), charge (Amp-hours) and temperature, peak temperature values for you, in real-time, for the circuit in which you connect it


Now you can stop wondering what's going on with your electric model and get answers that allow you to apply science to your hobby. The precise measurements you collect will help you fine tune your model to get all the performance that you paid for.


With watt meter function, it is now easy to determine things like:

Current through an ESC and motor
The temperature & peak temperatures of ESC, motor
Estimate battery's running time for car or airplane
ESC, BEC and motor efficiencies
Charge put into and discharge from a battery
Presence of peak currents that can damage components
Presence of voltage sags that cause components to operate out of specification
Why power is lost during acrobatics or extreme conditions
Effect of gearing and propeller size and shape on power consumption and battery currents Clever hobbyists will discover new applications to further improve electric model performance.

Voltage: 0-60V (*1), resolution 0.01V
Current: 0-100A peak (*2), resolution 0.01A
Power: 0-6000 W, resolution 0.1W
Charge: 0-65Ah, resolution 0.1mAh
Energy: 0-6554Wh, resolution 0.1KWh
Temperature: 0-150℃/ 32°F - 302°F
Auxiliary power: 4-60V
Dimensions: 51.3 x 42.9 x 13.7mm
Net weight: 42g/ 1.48oz
Display: 26.5 x 28.5mm LCD

Note:
(*1) 0V minimum with auxiliary power
(*2) 50A continuous, 100A peak, assumes device's wire are in free air and attached to connections at or below temperature of 35 flow. 100A operation time depends on ambient temperature and wiring temperature.

You can calibrate all values to zero by pressing 'SW' button for more than 3 seconds.

Includes:

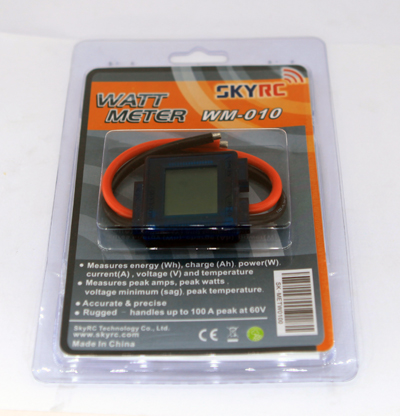

1 x multi-function watt meter

* Temperature sensor is not included, to be purchased separately.
