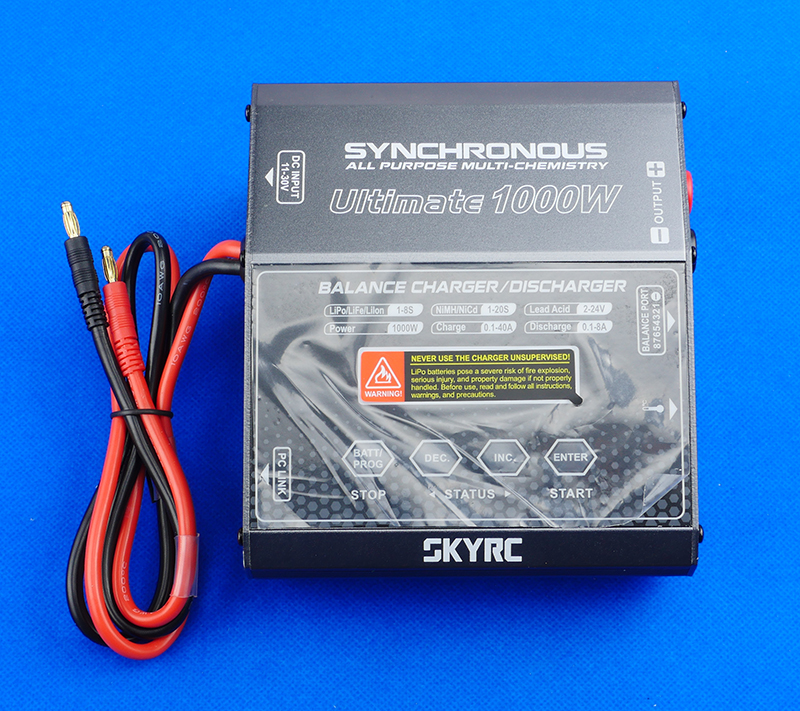

SKYRC Synchronous 1-8S 1000W/ 40A Balance Charger SK-100069
Customers rating.
Add To Wish List
Added:2015/03/16
Updated:2018/06/21
Follow Us on:


  Tags: SKYRC Synchronous 1-8S 1000W/ 40A Balance Charger SK-100069

Features:
SKYRC Ultimate 1000W features with high efficiency with synchronous rectification technology, it is accurate and stable and also has some new features and functions. Users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. What's more, users could also use it as Lithium Battery Meter and Lithium Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safe to use.

SKYRC

SKYRC

Feature:


Balance port for charging/discharging: For some small batteries without main connector, you could use the battery socket to charge and discharge the battery to storage status.
LiHV Mode Available: The additional LiHV mode is able to charge the new generation of LiPo batteries with an end of charge voltage of 4.35 V.
Special Features:
Ultimate 1000W employs the circuit that features output power of 1000 watts. It can charge or discharge up 20 cells of NiCd/NiMH or 8 series of Lithium batteries with maximum current of 40A.
SKYRC Ultimate 1000W employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging.
The charger can store up to 10 different charge/discharge profiles for your convenience. Users can call out these data at any time without any special program setting.
The user can check battery's total voltage, the highest voltage, the lowest voltage and each cell's voltage by this charger.
The user can check battery's total internal resistance and each cell's internal resistance.
Automatic Charging Current Limit Capacity Limit Temperature Threshold Processing Time Limit
The charger allows user to set the charge/ discharge end voltage.

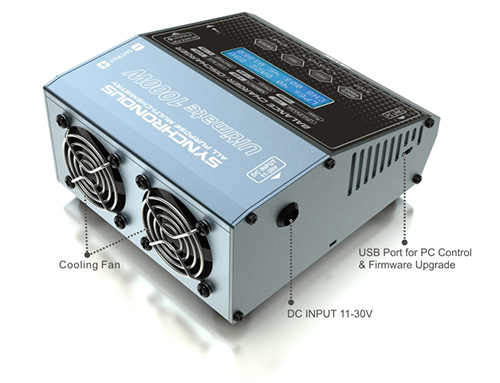

The user can monitor pack voltage, cell voltage and other data during the charging, view charge date in realtime graphs, and can also control charging and update firmware from Charge Master.
Charger Master: The user can monitor pack voltage, cell voltage and other data during the charging, view charge data in realtime graphs, and can also control charging and update firmware from Charge Master.
Finally, Your Charge Gets Its Own App! Smart Phone Control via Wi-Fi Module (both iOS and Android) This charger can be controlled and operated by smart phones via Wi-Fi module (optional part SK-600075).
Specifications:

SKYRC Synchronous 1-8S 1000W/ 40A  Balance Charger SK-100069


Size: 156 x 138 x 76mm
Weight: 1240g
LiPo/LiFe/Lilon/LiHV Battery Cell Count: 1-8S
DC Input Voltage: 11-30V
Charge Circuit Power: 1000W
Charge Current: Max. 40.0A
Balance Port Charge Current: 10-500mA
Discharge Circuit Power: 80W
Discharge Current: 0.1-8.0A
Regenerative Discharge Current: 0.1-40.0A
Current Drain for Balancing: Max. 800mA
NiMH/NiCd Battery Cell Count: 1-20S
Trickle Charging Current: 50mA-300mA & OFF
Pb Battery: 2-24V

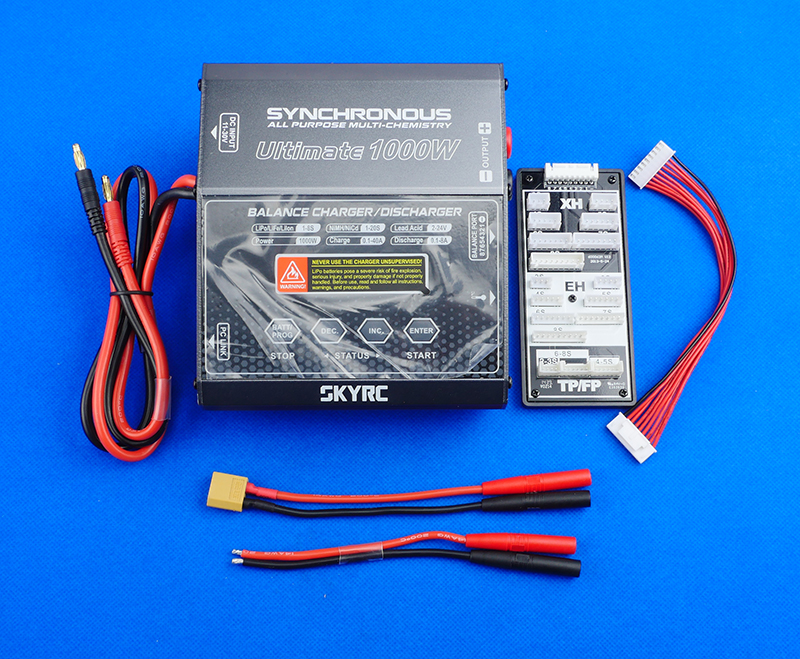

Includes/Requires:
Includes:
1 x charger
1 x balance charging distribution board (with connection cable)
2 x power wires
