Input Voltage:                          AC Input: 100-240V/DC Input: 11-18V

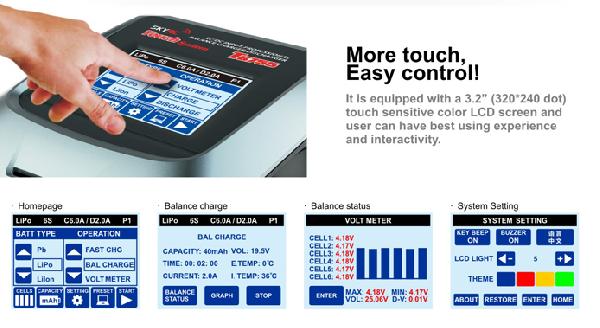

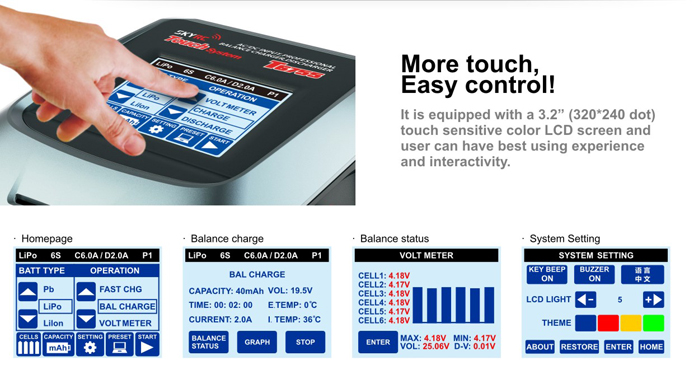

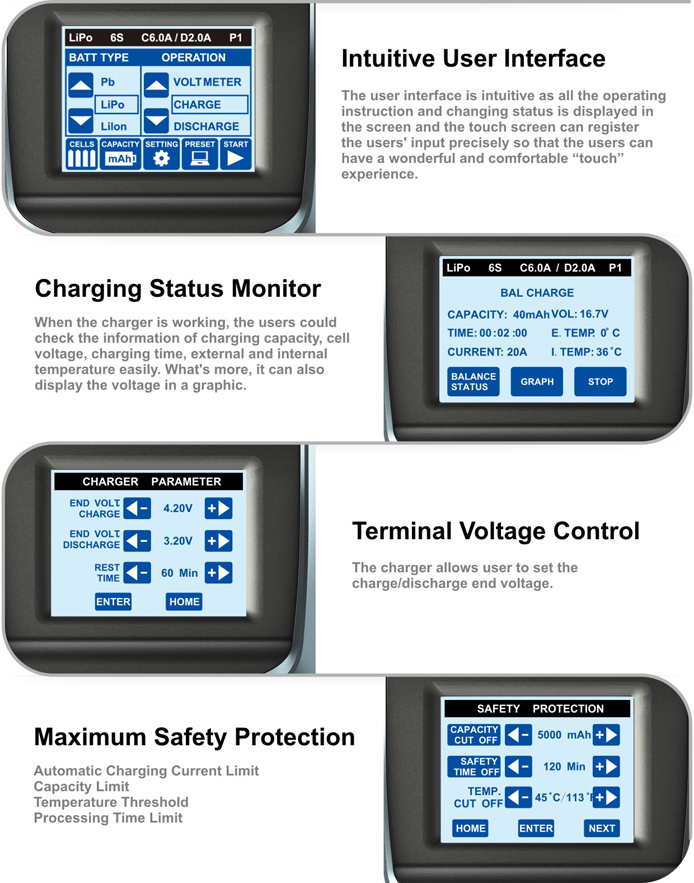

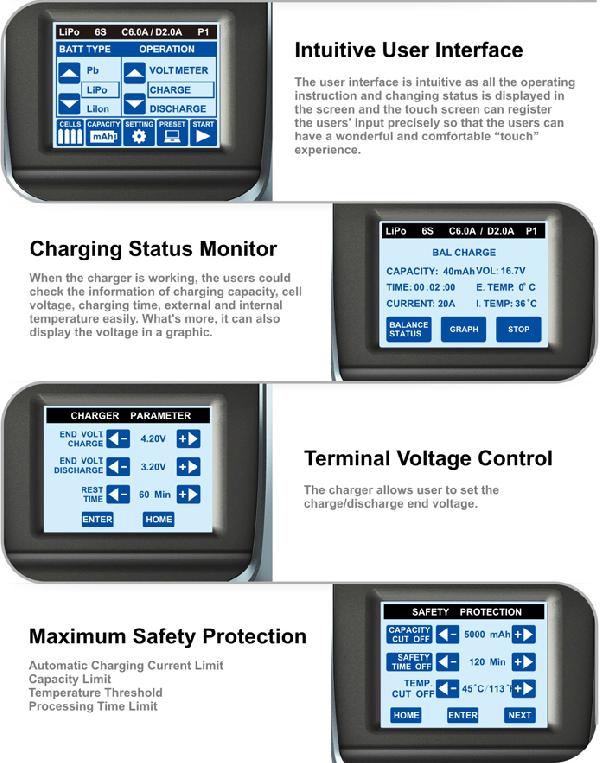

Controls:                                  Color LCD Touch Screen

Display Type:                           65.85*49.63mm graphic touch sensitive LCD 3.2"(320*240 dot) screen and four color theme

Display Backlight:                    White

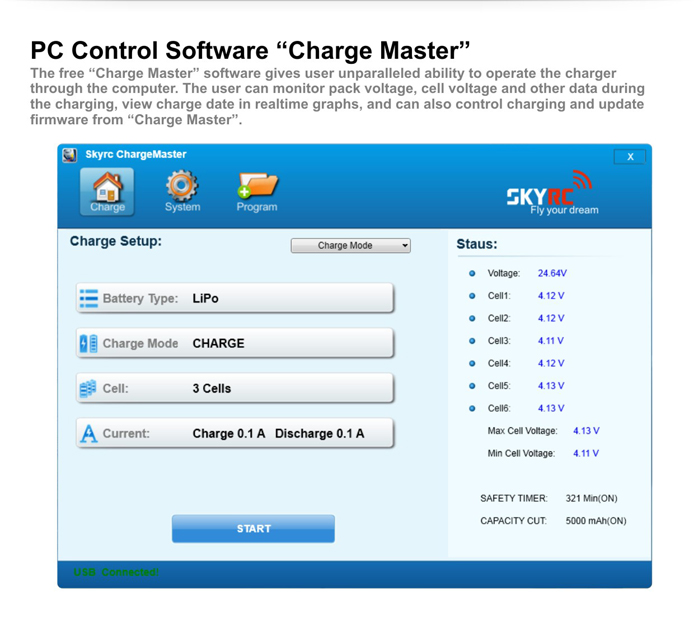

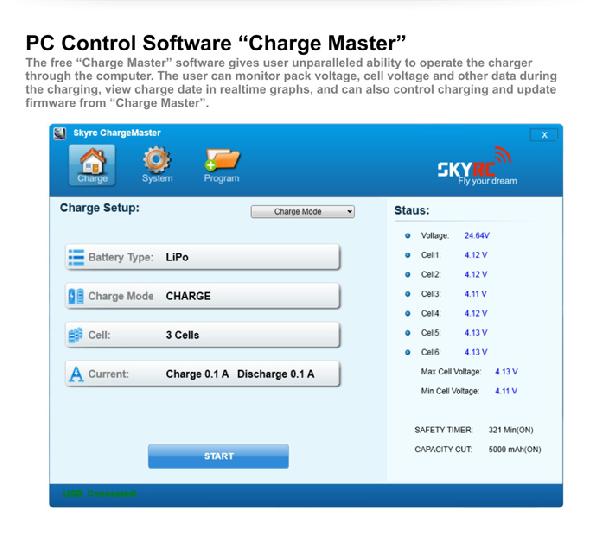

PC Communications:                USB Port for PC Control & Firmware Upgrade

Case Material:                          Plastic

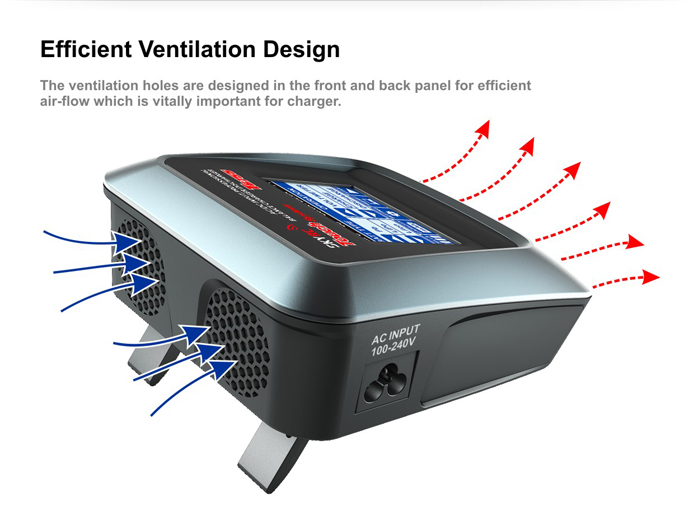

Cooling System:                       Built-in, one 40*40*10mm fan

Case Size:                                140*165*60mm

Weight:                                     540g

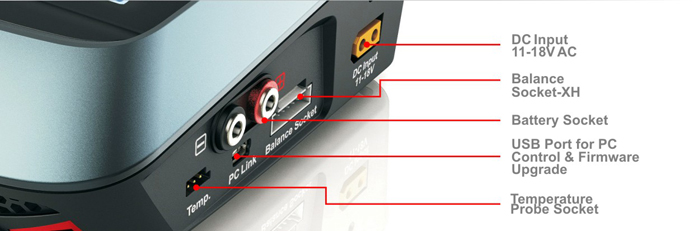

External Port:                           Balance Socket-XH, Temperature Probe Socket, DC Input, USB port for PC, AC Input Power Port

Delta Peak Detection:               NiCd: 3-15mV/cell

                                                 NiMH: 3-15mV/cell

Charge Cutoff Temperature:     20-80°C (adjustable)

Charge Voltage:                       NiCd/NiMH: Delta peak detection

                                                 LiPo: 4.18-4.3V/cell

                                                 LiIon: 4.08-4.2V/cell

Balance Current:                      200mA/cell

Reading Voltage Range:          0.3-5.0V/cell

Battery Types/Cells:                  NiCd/NiMH: 1-15cells

                                                 LiPo/LiIon/LiFe: 1-6cells

                                                 Pb: 2-20V

Battery Capacity Range:           NiCd/NiMH: 100-20,000mAh

                                                 LiPo/LiIon/LiFe: 100-20,000mAh

                                                 Pb: 100-20,000mAh

Charge Current:                        0.1-7.0A

Safety Timer:                           1-720 minutes, Off

Charge Wattage:                      55W

Discharge Current:                    0.1-2.0A (±10%)

Discharge Cut-off Voltage:        NiCd/NiMH: 0.1-1.1V/cell

                                                 LiPo: 3.0-3.3V/cell

                                                 LiIon: 2.9-3.2V/cell

Discharge Wattage:                  5W

Balance Cells:                          6 cells

Memory:                                   5 different charge/discharge profiles

Charge Method:                        CC/CV for lithium types and lead (pb) batteries, Delta-peak Sensitivity for NiMH/NiCd

 AC power input plug type: EU standard
