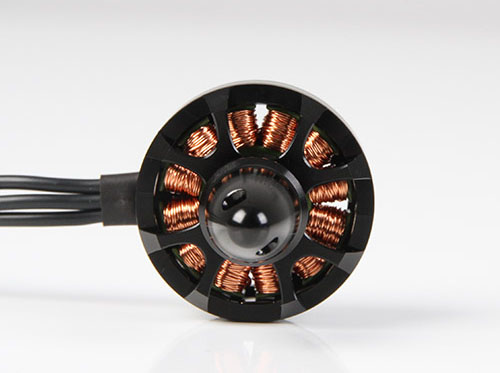

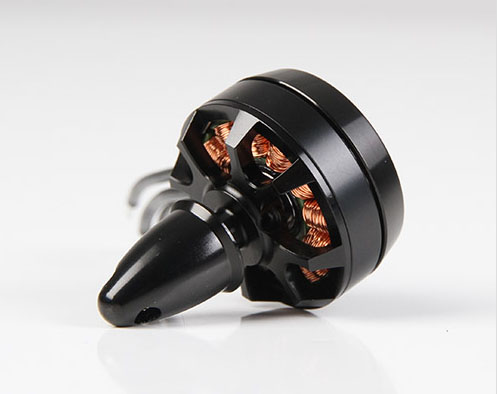

SUNNYSKY X2204S II 2300KV Outrunner Brushless Motor CW | V2

Stator Diameter			22mm
Stator Thickness			4mm
No.of Stator Arms			12
No.of Stator Poles			14
Motor Kv			2300
NO-Load Current(A/10V)			0.5A
Motor Resistance			100mΩ
Max Continuous Current			20A/15S
Max Continuous Power			296W
Weight			25g
Outside Diameter			27mm
Shaft Diameter			3mm
Body Length			14.6mm
Overall Shaft Length			29.2mm
Max Lipo Cell			2-4S
ESC			30A
Recommend Prop(inch)			5030, 5040, 5045

Prop	Volts	Amps	Thrust(g)	Watts (W)	Efficiency (g/W)	Full throttle Temperature
(inch)	(V)	(A)	Thrust(g)	Watts (W)	Efficiency (g/W)	Full throttle Temperature
HQ5*3	11.1	1.4	100	15.54	6.435006435
		2.4	150	26.64	5.630630631
		3.4	200	37.74	5.299417064
		4.4	250	48.84	5.118755119
		5.6	300	62.16	4.826254826
		6.8	350	75.48	4.636989931
		7.6	380	84.36	4.504504505	24℃
HQ5*3	14.8	1.1	100	16.28	6.142506143
		1.8	150	26.64	5.630630631
		2.6	200	38.48	5.197505198
		3.5	250	51.8	4.826254826
		4.5	300	66.6	4.504504505
		5.5	350	81.4	4.2997543
		6.6	400	97.68	4.095004095
		7.8	450	115.44	3.898128898
		8.9	500	131.72	3.795930762
		10.1	550	149.48	3.679421996
		11.5	600	170.2	3.525264395	30℃
HQ5*4	11.1	1.5	100	16.65	6.006006006
		2.5	150	27.75	5.405405405
		3.7	200	41.07	4.869734599
		4.9	250	54.39	4.596433168
		6.2	300	68.82	4.359197908
		7.6	350	84.36	4.148885728
		9.1	400	101.01	3.96000396
		11.1	460	123.21	3.733463193	27℃
HQ5*4	14.8	1.1	100	16.28	6.142506143
		2	150	29.6	5.067567568
		2.9	200	42.92	4.659832246
		3.9	250	57.72	4.331254331
		5	300	74	4.054054054
		6.1	350	90.28	3.876827647
		7.4	400	109.52	3.65230095
		8.7	450	128.76	3.494874185
		10.1	500	149.48	3.344929088
		11.5	550	170.2	3.231492362
		12.8	600	189.44	3.16722973
		14.9	650	220.52	2.947578451
		17	710	251.6	2.821939587	37℃
HQ5*4.5	11.1	1.5	100	22.2	4.504504505
		2.6	150	38.48	3.898128898
		3.7	200	54.76	3.65230095
		4.9	250	72.52	3.447324876
		6.2	300	91.76	3.269398431
		7.5	350	111	3.153153153
		9	400	133.2	3.003003003
		11.4	470	168.72	2.785680417	27℃
HQ5*4.5	14.8	1.1	100	16.28	6.142506143
		1.9	150	28.12	5.33428165
		2.9	200	42.92	4.659832246
		3.8	250	56.24	4.445234708
		4.9	300	72.52	4.136789851
		6.1	350	90.28	3.876827647
		7.3	400	108.04	3.702332469
		8.6	450	127.28	3.535512256
		10	500	148	3.378378378
		11.5	550	170.2	3.231492362
		13.1	600	193.88	3.094697751
		14.8	650	219.04	2.967494522
		16.9	700	250.12	2.798656645
		17.5	720	259	2.77992278	39℃

Includes:
1 x motor CCW
