SUNNYSKY X2204 1480KV Outrunner Brushless Motor

Integrated prop saver and motor mount design.

Model:X2204-1480KV
KV (rpm/v): 1480
Non-load current: 10V/0.1A
Weight: 19.3g
Length: 12.5mm/ 23.4 (without/ with prop saver)
Diameter: 27mm

X2204 KV1480
Testing data (for reference only) ：
Propeller Type	Voltage	Current	Thrust(G)	Power（W）	G/W Ratio
HD8040	6.4V	3.4A	190	21.76	8.73
	7V	3.9A	240	27.3	8.79
	7.4V	4.3A	280	31.82	8.79
GWS9047	6.4V	5.7A	310	36.48	8.49
	7V	6.3A	340	44.1	7.7
	7.4V	6.9A	390	51.06	7.63


X2204 KV1850
Testing data (for reference only) ：
Propeller Type	Voltage	Current	Thrust(G)	Power（W）	G/W Ratio
HD8040	6.4V	6.5	310	41.6	7.45
	7V	7.4	340	51.8	6.56
	7.4V	8.4	380	62.16	6.11
GWS8043	6.4V	7.9	320	50.56	6.32
	7V	8.7	360	60.9	5.91
	7.4V	9.4	410	69.56	5.89

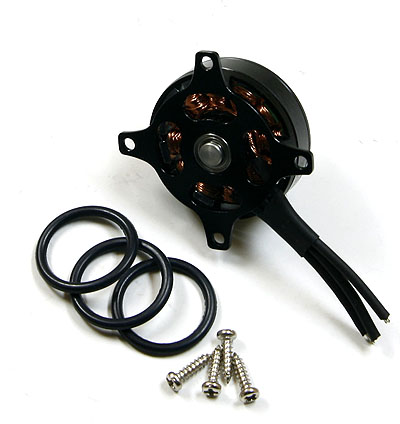

Includes:
1 x motor
1 x prop saver
3 x rubber o-rings
