SUNNYSKY X2206S 2100KV Outrunner Brushless Motor CW

SKU: 2206S21CW

SUNNYSKY X2206S 2100KV Outrunner Brushless Motor CW

Customers rating.

Add To Wish List

Added:2016/03/12
Updated:2016/03/20

Follow Us on:

Follow @HiModel

Tags: SUNNYSKY X2206S 2100KV Outrunner Brushless Motor CW

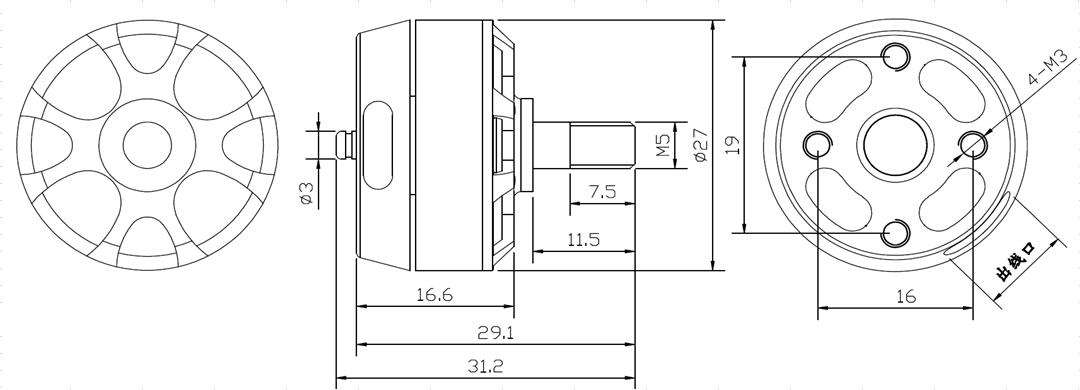

Specifications:

SUNNYSKY X2206S 2100KV Outrunner Brushless Motor CW

Stator Diameter			22mm
Stator Thickness			6mm
No.of Stator Arms			12
No.of Stator Poles			14
Motor Kv			2100
NO-Load Current(A/10V)			0.8A
Motor Resistance			67mΩ
Max Continuous Current			25A/15S
Max Continuous Power			370W
Weight			31g
Outside Diameter			27mm
Shaft Diameter			3mm
Body Length			16.6mm
Overall Shaft Length			31.2mm
Max Lipo Cell			2-4S
ESC			30A
Recommend Prop(inch)			5030, 5040, 5045

Prop	Volts	Amps	Thrust(g)	Watts (W)	Efficiency (g/W)	Full throttle Temperature
(inch)	(V)	(A)	Thrust(g)	Watts (W)	g/W	Full throttle Temperature
HQ5*3	11.1	1.8	100	19.98	5.01
		2.8	150	31.08	4.83
		3.8	200	42.18	4.74
		4.8	250	53.28	4.69
		6.3	310	69.93	4.43	20℃
HQ5*3	14.8	1.4	100	20.72	4.83
		2.2	150	32.56	4.61
		3	200	44.4	4.50
		3.9	250	57.72	4.33
		4.8	300	71.04	4.22
		5.8	350	85.84	4.08
		6.9	400	102.12	3.92
		7.8	450	115.44	3.90
		9	500	133.2	3.75
		9.6	530	142.08	3.73	27℃
HQ5*4	11.1	1.8	100	19.98	5.01
		2.9	150	32.19	4.66
		4	200	44.4	4.50
		5.2	250	57.72	4.33
		6.3	300	69.93	4.29
		7.6	350	84.36	4.15
		8.9	400	98.79	4.05
		10.1	440	112.11	3.92	20℃
HQ5*4	14.8	1.4	100	20.72	4.83
		2.3	150	34.04	4.41
		3.1	200	45.88	4.36
		4.3	250	63.64	3.93
		5.2	300	76.96	3.90
		6.2	350	91.76	3.81
		7.4	400	109.52	3.65
		8.6	450	127.28	3.54
		9.8	500	145.04	3.45
		10.9	550	161.32	3.41
		12.2	600	180.56	3.32
		13.6	650	201.28	3.23
		15.1	710	223.48	3.18	29℃
HQ5*4.5	11.1	1.8	100	19.98	5.01
		2.8	150	31.08	4.83
		4.1	200	45.51	4.39
		5.3	250	58.83	4.25
		6.5	300	72.15	4.16
		7.7	350	85.47	4.10
		9.1	400	101.01	3.96
		10.4	450	115.44	3.90	20℃
HQ5*4.5	14.8	1.4	100	20.72	4.83
		2.2	150	32.56	4.61
		3	200	44.4	4.50
		4	250	59.2	4.22
		5	300	74	4.05
		6.1	350	90.28	3.88
		7.3	400	108.04	3.70
		8.4	450	124.32	3.62
		9.6	500	142.08	3.52
		11	550	162.8	3.38
		12.2	600	180.56	3.32
		13.6	650	201.28	3.23
		15.8	720	233.84	3.08	30℃
HQ6*4.5	11.1	1.6	100	17.76	5.63
		2.4	150	26.64	5.63
		3.3	200	36.63	5.46
		4.4	250	48.84	5.12
		5.3	300	58.83	5.10
		6.4	350	71.04	4.93
		7.6	400	84.36	4.74
		8.8	450	97.68	4.61
		10.1	500	112.11	4.46
		11.4	550	126.54	4.35
		13	600	144.3	4.16
		14.2	650	157.62	4.12
		15.8	700	175.38	3.99
		17.6	750	195.36	3.84	34℃

Includes/Requires:

Includes:
1 x motor CCW
