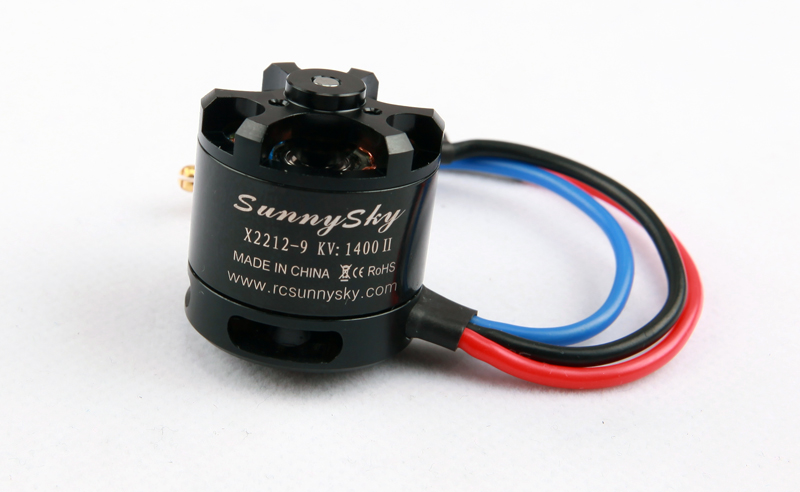

SUNNYSKY X2212-1400KV Outrunner Brushless Motor

Model: X2212-1400KV
KV (rpm/v): 1400
Non-load current: 10V/0.9A
Weight: 56g
Length: 30mm
Diameter: 27.5mm
Shaft Diameter(mm): 3

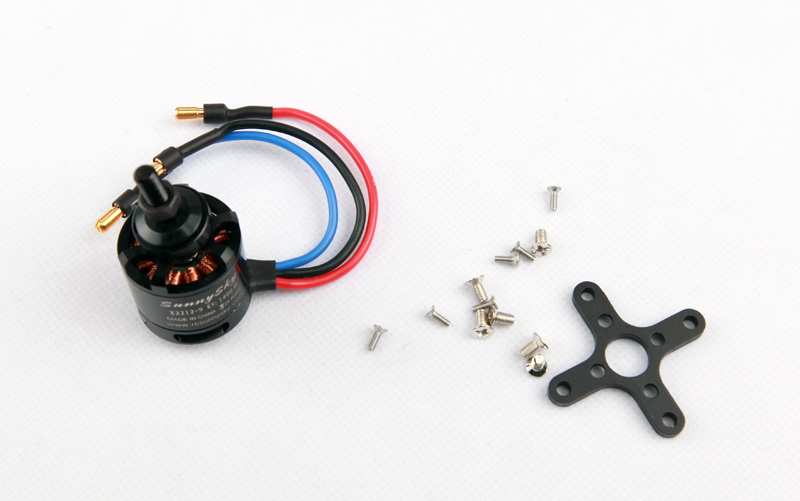

Includes:
1 x motor
1 x prop adaptor
1 x cross type motor mount

Average Customer Review: 5 stars

3 customer review(s). [Write a review/question]

a****57

Grade:

I have matt halls frames too with the same Sunnsky X2212 1400kv motors and like you I had to cut off the protruding drive shafts with my Dremel. I'm not sure why they were designed that way. Anyway, right now I'm still waiting for parts like a KK2 board from China to finish this project and can hardly wait. I love Matt's designs and his flying abilities. I have both the T-Copter and the new Tri-Copter 2.0. Damn, I want to get up in the air bad!
P.S. Your Tri-copter link doesn't work.
June 19 2013 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

Discussion of this review:

adapter is screwed on and use a 40 c battery or better or u will puff the battery real quick they awesome motor for sure used them on a 32 in tricopter my first build with 10x4.5 props what a beast happy flying
-- Feb 03 2015 by tricopterdude

a****ncesportcar
STD member

Grade:

The propeler adaptor is the same of the picture or is fixed on the shaft
May 15 2013 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

w****iano

Grade:

Well made with very good finishing. High performance motor, great for Tcopters like this one. http://www.youtube.com/watch?v=aP2h53Nwn9Y

I have finished building one with this motor and they perform great! One thing to note though, you will have to saw off the protruding drive shaft to fit it on a wooden tricopter. If you are flying it on a frame with a motor center hole mount then it shouldn't matter.

Here is my Tcopter based on Matt Hall's (Hallstudio) design.

http://forum.rcdrone.sg/viewtopic.php?f=18
February 02 2013 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

Discussion of this review:

if u use the x motor mount no need to cut the shaft least not the ones I have

-- Feb 03 2015 by tricopterdude
