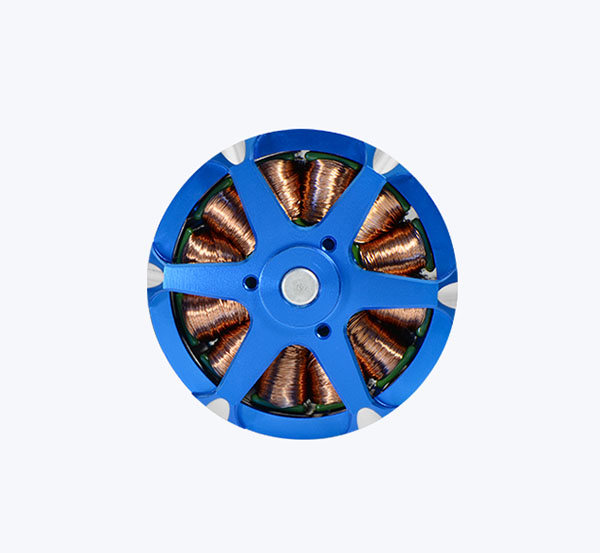

SUNNYSKY X2212 1400KV III (V3) Brushless Motor

Specifications				X2212
Stator Diameter				22mm
Stator Thickness				12mm
No.of Stator Slots				12
No.of Rotor Poles				14
Motor Kv				1400
NO-Load Current(A/10V)				1A
Motor Resistance				43mΩ
Max Continuous Current				37A/30s
Max Continuous Power				560W
Weight				57g
Rotor Diameter				27.5mm
Body Length				30mm
Max Lipo Cell				3-4S
ESC				30-40A
Recommend Prop(inch)				APC9047 APC9045 APC8038 APC7060 APC8060
Application recommendation: AEROBATIC airplane flight weight 750g (3S 9047\9045\8060）(4S 7060)
Prop	Volts	Amps	Thrust(g)	Watts (W)	Efficiency (g/W)	RPM	Full throttle under load temp.
(inch)	(V)	(A)	Thrust(g)	Watts (W)	Efficiency (g/W)	RPM	Full throttle under load temp.
APC9047	11.1	1	100	11.1	9.01	3244
		2.1	200	23.31	8.58	4590
		3.6	300	39.96	7.51	5651
		5.4	400	59.94	6.67	6509
		7.3	500	81.03	6.17	7383
		9.3	600	103.23	5.81	8061
		11.3	700	125.43	5.58	8839
		13.4	800	148.74	5.38	9476
		16.1	900	178.71	5.04	10002
		18.8	1000	208.68	4.79	10550
		21.4	1100	237.54	4.63	11250
		24.8	1200	275.28	4.36	11700
		30.5	1380	338.55	4.08	12423	77℃3min
APC8038	11.1	1	100	11.1	9.01	4002
		2.5	200	27.75	7.21	5595
		4.1	300	45.51	6.59	6683
		5.8	400	64.38	6.21	7620
		7.6	500	84.36	5.93	8404
		9.9	600	109.89	5.46	9145
		12.3	700	136.53	5.13	9798
		15	800	166.5	4.80	10389
		18	900	199.8	4.50	10992
		20.4	1000	226.44	4.42	11503
		23.8	1100	264.18	4.16	11963
		28	1230	310.8	3.96	12455	66℃10min
APC9045	11.1	1	100	11.1	9.01	3340
		2.2	200	24.42	8.19	4705
		3.8	300	42.18	7.11	5795
		5.5	400	61.05	6.55	6688
		7.3	500	81.03	6.17	7419
		9.4	600	104.34	5.75	8060
		11.5	700	127.65	5.48	8774
		14	800	155.4	5.15	9264
		17	900	188.7	4.77	9796
		19.8	1000	219.78	4.55	10286
		22.8	1100	253.08	4.35	10710
		26.4	1200	293.04	4.10	11152
		29.7	1300	329.67	3.94	11600
		31.8	1440	352.98	4.08	12100	75℃ 3min
APC8060	11.1	1.2	100	13.32	7.51	3890
		2.9	200	32.19	6.21	5456
		5	300	55.5	5.41	6606
		7.2	400	79.92	5.01	7564
		9.3	500	103.23	4.84	8340
		12	600	133.2	4.50	9142
		15.9	700	176.49	3.97	9820
		20.4	800	226.44	3.53	10425
		25.6	900	284.16	3.17	11027
		30.2	1050	335.22	3.13	12025	65℃ 10min
APC7060	11.1	1.7	100	18.87	5.30	4957
		3.7	200	41.07	4.87	6990
		6.3	300	69.93	4.29	8444
		8.8	400	97.68	4.10	9731
		12	500	133.2	3.75	10895
		15.9	600	176.49	3.40	11826
		21.3	750	236.43	3.17	13244
	14.8	1.3	100	19.24	5.20	4932
		2.8	200	41.44	4.83	6995
		4.7	300	69.56	4.31	8481
		6.7	400	99.16	4.03	9772
		9	500	133.2	3.75	10878
		11.8	600	174.64	3.44	11848
		14.6	700	216.08	3.24	12964
		18.3	800	270.84	2.95	13774
		22.2	900	328.56	2.74	14584
		25.9	1000	383.32	2.61	15238
		30.6	1100	452.88	2.43	16371
		34.4	1210	509.12	2.38	16243	71℃ 1min30s

Includes:
1 x motor
1 x prop adaptor
1 x motor mount
1 x screw bag
