   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Outrunner SUNNYSKY X2212 980KV III (V3) Brushless Motor
   Multi-rotors Motors
SKU:  X221298-3

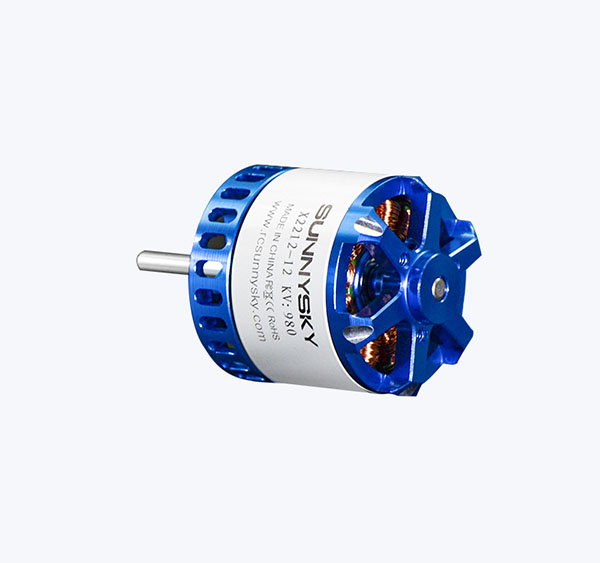

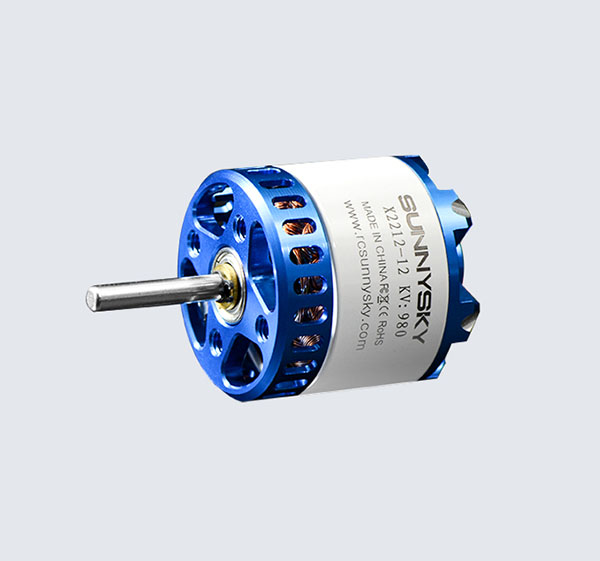

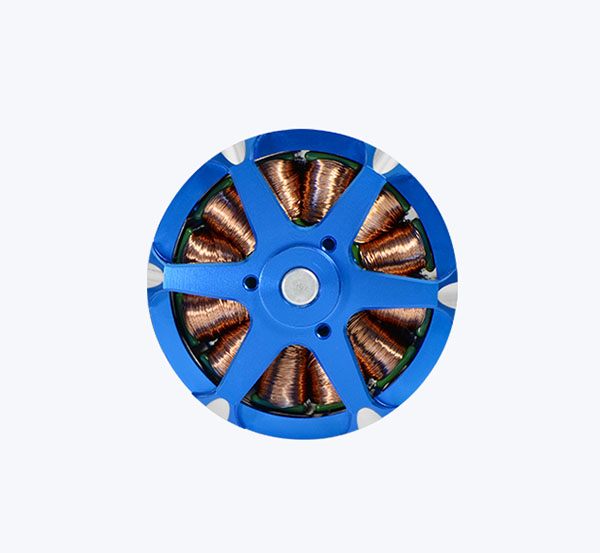

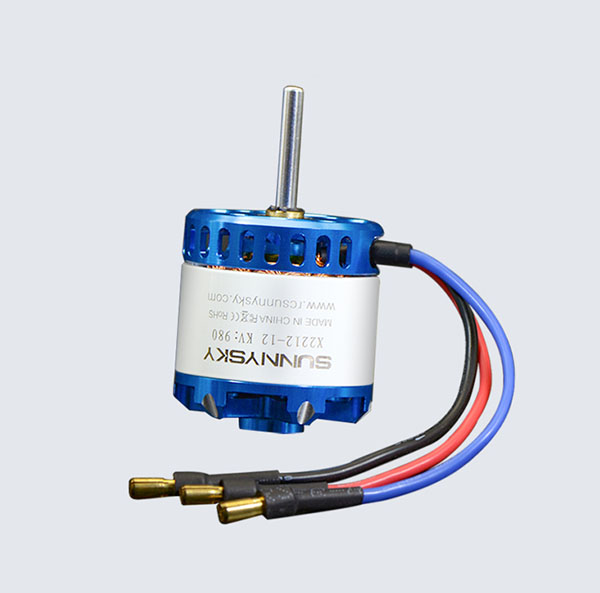

SUNNYSKY X2212 980KV III (V3) Brushless Motor
Customers rating.
Add To Wish List
Added:2018/09/06
Updated:2018/09/06
Follow Us on:


  Tags: SUNNYSKY  X2212  980KV  III  V3  Brushless  Motor

Specifications:

SUNNYSKY X2212 980KV III (V3) Brushless Motor


SpecificationsX2212
Stator Diameter22mm
Stator Thickness12mm
No.of Stator Slots12
No.of Rotor Poles14
Motor Kv980
NO-Load Current(A/10V)0.6A
Motor Resistance92mΩ
Max Continuous Current26A/30s
Max Continuous Power385W
Weight57g
Rotor Diameter27.5mm
Body Length30mm
Max Lipo Cell3-4S
ESC20-30A
Recommend Prop(inch)APC8038 APC1047 APC1038 APC9047 APC9045

Application recommendation:

Multicopter single rotor load 400g  3-4S 1038\1047)

Multicopter single rotor load 500g(4S 8038\8043\8045\9047)

3D airplane flight weight 550g (3S 1047)

TRAINER flight weight 750g  3S 1047



PropVoltsAmps Thrust(g)Watts (W)Efficiency
(g/W)
RPMFull throttle under load temp.
(inch)(V)(A)
APC803814.80.710010.369.65 4120
1.720025.167.95 5641
2.830041.447.24 6668
440059.26.76 7629
5.450079.926.26 8440
7.1600105.085.71 9154
8.7700128.765.44 9766
10.2800150.965.30 10436
16.41075242.724.43 1191055℃ 10min
APC904511.10.91009.9910.01 3406
2.120023.318.58 4827
3.330036.638.19 5789
4.840053.287.51 6642
6.550072.156.93 7370
12.2785135.425.80 9308
14.80.61008.8811.26 3452
1.520022.29.01 4734
2.730039.967.51 5780
3.840056.247.11 667
5.250076.966.50 746
6.660097.686.14 8140
8.4700124.325.63 8649
108001485.41 9150
11.9900176.125.11 9696
141000207.24.83 11368
161100236.84.65 10221
18.21220269.364.53 1064968℃ 10min
APC904711.10.81008.8811.26 3288
1.920021.099.48 4580
3.230035.528.45 5638
4.940054.397.35 6591
6.450071.047.04 7301
8.260091.026.59 8041
10.4700115.446.06 9396
13.2840146.525.73 873076℃ 10min
14.80.61008.8811.26 3231
1.520022.29.01 4643
2.5300378.11 5605
3.840056.247.11 6432
5500746.76 7378
6.560096.26.24 8090
8.2700121.365.77 8730
108001485.41 9366
11.7900173.165.20 10131
13.81000204.244.90 10716
18.41250272.324.59 1175570℃ 10min
APC103811.10.71007.7712.87 2813
1.820019.9810.01 3866
330033.39.01 4636
4.640051.067.83 5170
6.350069.937.15 5687
8.160089.916.67 6100
10.2700113.226.18 6591
12.4800137.645.81 6853
15.3900169.835.30 7262
20.21130224.225.04 792376℃ 10min
APC104711.10.71007.7712.87 2612
1.720018.8710.60 3605
330033.39.01 4264
4.540049.958.01 4887
6.450071.047.04 5418
8.360092.136.51 5872
10.45700115.9956.03 6335
12.7800140.975.67 6983
15.3900169.835.30 7378
19.91100220.894.98 7748
14.80.51007.413.51 2600
1.320019.2410.40 3593
2.230032.569.21 4253
3.440050.327.95 4869
4.950072.526.89 5381
6.560096.26.24 5845
8.7700128.765.44 6332
10.5800155.45.15 6610
12.4900183.524.90 7055
14.71000217.564.60 7444
16.41100242.724.53 7766
181200266.44.50 8100
20.61300304.884.26 8394
24.51400362.63.86 8620
27.41500405.523.70 8900
291650429.23.84 940985℃ 15S
Includes/Requires:
Includes:
1 x motor
1 x prop adaptor
1 x motor mount
1 x screw bag
