Model:X2814-1100KV
KV (rpm/v): 1100
Non-load current: 10V/1.7A
Weight: 106g
Diameter: 35mm
Length : 52.1mm/ 34mm (with shaft/ without motor shaft)
Motor Shaft Diameter(mm): 4
Prop adaptor output shaft diameter: 6mm

X2814 KV870
Testing Data (for reference only):
Propeller Type	Voltage	Current	Thrust(G)	Power（W）	G/W Ratio
EMP11X5.5	10V	16.8A	1.15kg	168	6.8
	11V	19A	1.4kg	209	6.69
	12V	21.6A	1.6kg	259.2	6.17
	13V	24.4A	1.8kg	317.2	5.67
	14V	27.1A	2.1kg	379.4	5.53
	14.8V	29.5A	2.3kg	436.6	5.26
EMP12X6	7.4V	15.7A	1.02kg	116.18	8.77
	8.5V	18.6A	1.25kg	158.1	7.9
	10V	23.5A	1.6kg	235	6.8
	10.5V	24.9A	1.75kg	261.45	6.69
	11V	26.4A	1.88kg	290.4	6.47
	11.3V	27.3A	1.95kg	308.49	6.32
JXF Wood 13X6	7.4V	19.1A	1.1kg	141.34	7.78
	8.5V	22.6A	1.38kg	192.1	7.18
	10V	27.4A	1.75kg	274	6.38
	10.5V	29.5A	1.9kg	309.75	6.13
	11V	31.5A	2.02kg	346	5.83
	11.3V	32.9A	2.1kg	371.77	5.64
X2814 KV1000
Testing Data (for reference only):
Propeller Type	Voltage	Current	Thrust(G)	Power（W）	G/W Ratio
EMP12X6	7.6V	21A	1.2kg	159.6	7.51
	8.8V	25.8A	1.55kg	227.04	6.82
	10V	29.7A	1.87kg	297	6.29
	10.6V	32.6A	2kg	345.56	5.78
	11V	34.9A	2.1kg	383.9	5.47
APC11X7	7.5V	16A	0.62kg	120	5.16
	8.5V	18.9A	0.8kg	160.65	4.97
	10V	24A	1.05kg	240	4.37
	11V	27.9A	1.3kg	306.9	4.23
	12V	31.6A	1.48kg	379.2	3.9
	12.8V	34.2A	1.6kg	437.76	3.65
	13.5V	36.2A	1.78kg	488.7	3.64
	14V	38.2A	1.89kg	534.8	3.53
	14.5V	40.5A	2.07kg	587.25	3.52
	14.8V	41.8A	2.15kg	618.64	3.47
EMP11X5.5	7.5V	13.8A	0.65kg	103.5	6.28
	8.5V	16.6A	0.85kg	141.1	6.02
	10V	21A	1.08kg	210	5.14
	11V	24.3A	1.32kg	267.3	4.93
	12V	27.7A	1.62kg	332.4	4.87
	12.8V	30.8A	1.90kg	394.24	4.81
	13.5V	32.6A	2.10kg	440.1	4.77
	14V	34.6A	2.28kg	484.4	4.7
	14.8V	37.8A	2.5kg	559.44	4.46
X2814 KV1100
Testing Data (for reference only):
Propeller Type	Voltage	Current	Thrust(G)	Power（W）	G/W Ratio
Apc11X7	7.4V	19.6A	1.05kg	145.04	7.23
	8.5V	25.5A	1.4kg	216.75	6.45
	10V	30.2A	1.65kg	302	5.46
	11V	34.3A	1.86kg	377.3	4.92
	11.3V	35.6A	1.93kg	402.28	4.79
EMP11X5.5	7.4V	18.4A	1.03kg	136.16	7.56
	8.5V	22.3A	1.3kg	189.55	6.85
	10V	27.6A	1.62kg	276	5.86
	11V	31.9A	1.88kg	350.9	5.35
	11.3V	33.4A	1.95kg	377.42	5.16
EMP12X6	7.4V	26.4A	1.3kg	195.36	6.65
	8.5V	30.9A	1.6kg	262.65	6.09
	10V	38.1A	1.98kg	381	5.19
	11V	43.5A	2.3kg	478.5	4.8
EMP9X6	10V	22.9A	1.25kg	229	5.45
	11V	26.3A	1.4kg	289.3	4.83
	12V	29.4A	1.62kg	352.8	4.59
	13V	32.6A	1.8kg	423.8	4.24
	14V	36.4A	2.0kg	509.6	3.92
	14.8V	38.9A	2.1kg	575.72	3.64
X2814 KV1250
Testing Data (for reference only):
Propeller Type	Voltage	Current	Thrust(G)	Power（W）	G/W Ratio
EMP11X5.5	7.4V	26.3A	1.45kg	194.62	7.45
	8.5V	31.2A	1.62kg	265.2	6.1
	10V	38.8A	1.86kg	388	4.79
	10.5V	41.2A	1.98kg	432.6	4.57
	11V	43.2A	2.1kg	475.2	4.41
EMP9X6	10V	31.2A	1.4kg	312	4.48
	11V	35.5A	1.58kg	390.5	4.04
	12V	40A	1.78kg	480	3.7
	13V	44.3A	2.04kg	575.9	3.54
	14V	49A	2.15kg	686	3.13
	14.8V	53.7A	2.38kg	794.76	2.99
EMP8X5	10V	24.2A	1.04kg	242	4.29
	11V	27.4A	1.2kg	301.4	3.98
	12V	32.5A	1.46kg	390	3.74
	13V	36.3A	1.62kg	471.9	3.43
	14V	39.6A	1.78kg	554.4	3.21
	14.8V	42.8A	1.88kg	633.44	2.96
X2814 KV1450
Testing Data (for reference only):
Propeller Type	Voltage	Current	Thrust(G)	Power（W）	G/W Ratio
EMP9X6	7.5V	29.8A	1.3KG	223.5	5.8
	8.5V	35.5A	1.55KG	301.75	5.15
	9V	39A	1.65KG	351	4.7
	10V	43A	1.89KG	430	4.39
	11V	49.5A	2.02KG	544.5	3.7
EMP8X5	7.5V	23.1A	1.05KG	173.25	6.06
	8.5V	27.6A	1.28KG	234.6	5.45
	10v	36.5A	1.5KG	365	4.1
	11v	41.6A	1.62KG	457.6	3.54
	13V	50.2A	2.02KG	652.6	3.09
	14V	56A	2.24KG	784	2.85
	14.5V	62A	2.4KG	899	2.66
X2820 KV800
Testing Data (for reference only):
Propeller Type	Voltage	Current	Thrust(G)	Power（W）	G/W Ratio
EMP12x6	10V	21.6A	1.52kg	216	7.03
	11V	24.8A	1.68kg	272.8	6.15
	12V	28.1A	2.0kg	337.2	5.93
	13V	31A	2.18kg	403	5.4
	14V	34.2A	2.5kg	478.8	5.22
	14.8V	37.1A	2.83kg	549.08	5.15
JXF13x6 Wood	10V	26.5A	1.64kg	265	6.18
	11V	29.7A	2.02kg	326.7	6.18
	12V	33.9A	2.25kg	406.8	5.53
	13V	37.4A	2.49kg	486.2	5.12
	14V	40.5A	2.7kg	567	4.76
	14.8V	44.3A	3.0kg	655.64	4.57
XDL14x8 Wood	7.4V	23.8A	1.3kg	176.12	7.38
	8.5V	28.3A	1.58kg	240.55	6.56
	10V	34.5A	1.95kg	345	5.65
	10.5V	36A	2.08kg	378	5.5
	11.1V	38A	2.25kg	421.8	5.33
EMP14x7	7.4V	22A	1.3kg	162.8	7.98
	8.5V	26.5A	1.6kg	225.25	7.1
	10V	31.5A	1.98kg	315	6.28
	10.5V	33.8A	2.1kg	354.9	5.91
	11.1V	36.4A	2.28kg	404.04	5.64

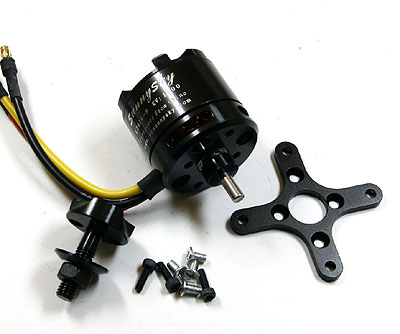

Includes:
1 x motor
1 x prop adaptor
1 x cross type motor mount
