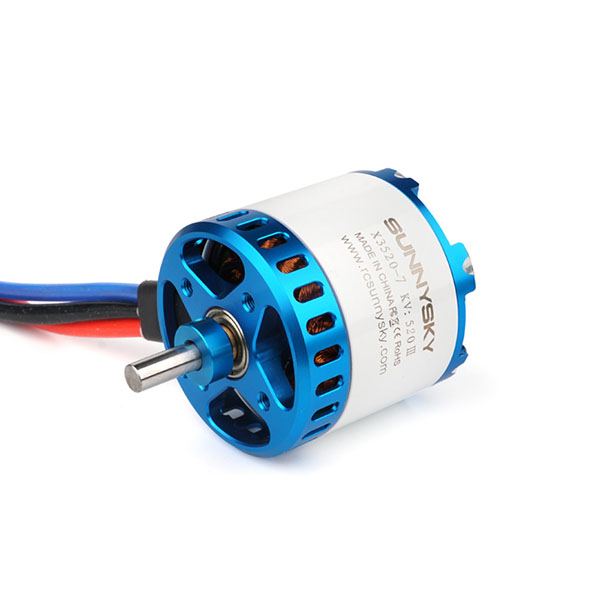

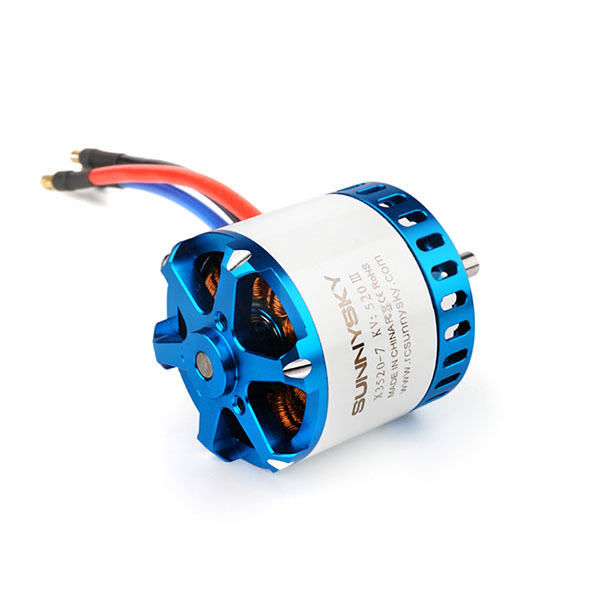

SUNNYSKY X3520 780KV III Outrunner Brushless Motor V3

Specifications	X3520
Stator Diameter	35mm
Stator Thickness	20mm
No.of Stator Arms	12
No.of Stator Poles	14
Motor Kv	780
NO-Load Current(A/10V)	1.7A
Motor Resistance	12mΩ
Max Continuous Current	83A/30s
Max Continuous Power	1395W
Weight	219g
Outside Diameter	42.5mm
Body Length	45mm

Max Lipo Cell	3-4S
ESC	60-80A
Recommend Prop(inch)	4s(APC128/APC126/APC136.5/APC138/APC14*7)

Recommended setting for Aerobatic airplanes:	2300g (5S APC126\APC136.5)
Recommended setting for 3D airplanes:	2000g (5S APC126\APC136.5)

Prop（inch）	Voltage （V）	Amps（A）	Thrust （gf）	Watts (W)	Efficiency (g/W)）	RPM	Temperature @ full throttle
APC13*8	14.8	3.6	500	53.28	9.38	3829	85℃ 10min
		6.2	750	91.76	8.17	4506
		9.3	1000	137.64	7.27	5190
		12.7	1250	187.96	6.65	5760
		16.9	1500	250.12	6.00	6369
		21	1750	310.8	5.63	6787
		26	2000	384.8	5.20	7250
		31	2250	458.8	4.90	7650
		36.8	2500	544.64	4.59	8029
		43.7	2750	646.76	4.25	8410
		58.6	3260	867.28	3.76	9030
	16.8	3.4	500	57.12	8.75	3637
		5.4	750	90.72	8.27	4569
		8.4	1000	141.12	7.09	5214
		11.7	1250	196.56	6.36	5788
		15	1500	252	5.95	6300
		18.8	1750	315.84	5.54	6673
		22.8	2000	383.04	5.22	7149
		27.3	2250	458.64	4.91	7571
		32.6	2500	547.68	4.56	8011
		38.2	2750	641.76	4.29	8450
		44.8	3000	752.64	3.99	8670
		72.1	3950	1211.28	3.26	10000
APC12*6	14.8	4	500	59.2	8.45	4629	92℃ 5min
		6.7	750	99.16	7.56	5655
		9.9	1000	146.52	6.83	6459
		13.5	1250	199.8	6.26	7180
		17.4	1500	257.52	5.82	7773
		22.1	1750	327.08	5.35	8273
		26.9	2000	398.12	5.02	8880
		32.5	2250	481	4.68	9211
		42.2	2700	624.56	4.32	9872
	16.8	3.65	500	61.32	8.15	4648
		6	750	100.8	7.44	5637
		8.5	1000	142.8	7.00	6482
		11.8	1250	198.24	6.31	7152
		15.4	1500	258.72	5.80	7764
		19.3	1750	324.24	5.40	8257
		24	2000	403.2	4.96	8866
		28.4	2250	477.12	4.72	9135
		33.7	2500	566.16	4.42	9611
		52.8	3160	887.04	3.56	10792
	18.5	3.3	500	61.05	8.19	4688
		5.4	750	99.9	7.51	5677
		8.1	1000	149.85	6.67	6456
		11	1250	203.5	6.14	7173
		14	1500	259	5.79	7769
		17.4	1750	321.9	5.44	8232
		21.6	2000	399.6	5.01	8860
		26	2250	481	4.68	9355
		30.7	2500	567.95	4.40	9766
		37	2750	684.5	4.02	10050
		42.7	3000	789.95	3.80	10661
		58.7	3500	1085.95	3.22	11277
		63.2	3710	1169.2	3.17	11644
	21	3.1	500	65.1	7.68	4642
		5.05	750	106.05	7.07	5658
		7.3	1000	153.3	6.52	6475
		9.9	1250	207.9	6.01	7135
		12.3	1500	258.3	5.81	7749
		15.6	1750	327.6	5.34	8252
		19.3	2000	405.3	4.93	8843
		23.2	2250	487.2	4.62	9354
		27.2	2500	571.2	4.38	9772
		32.3	2750	678.3	4.05	10155
		37.9	3000	795.9	3.77	10470
		50.4	3500	1058.4	3.31	11340
		68	4000	1428	2.80	12120
		78.9	4330	1656.9	2.61	12710
APC12*8	14.8	3.8	500	56.24	8.89	4138	115℃ 2min
		7.1	750	105.08	7.14	5154
		10.5	1000	155.4	6.44	5866
		14.3	1250	211.64	5.91	6532
		18.4	1500	272.32	5.51	7144
		23.4	1750	346.32	5.05	7780
		28.4	2000	420.32	4.76	8240
		35.6	2250	526.88	4.27	8640
		49.7	2650	735.56	3.60	9414
	16.8	3.6	500	60.48	8.27	4147
		6.3	750	105.84	7.09	5029
		9.2	1000	154.56	6.47	5820
		12.7	1250	213.36	5.86	6518
		16	1500	268.8	5.58	7150
		21	1750	352.8	4.96	7628
		26.3	2000	441.84	4.53	8127
		30.8	2250	517.44	4.35	8760
		37.4	2500	628.32	3.98	9219
		50	2750	840	3.27	9801
		64	3110	1075.2	2.89	10233
	18.5	3.5	500	64.75	7.72	4175
		5.6	750	103.6	7.24	5042
		8.2	1000	151.7	6.59	5832
		11.7	1250	216.45	5.78	6509
		15	1500	277.5	5.41	7172
		18.6	1750	344.1	5.09	7649
		22.75	2000	420.875	4.75	8152
		27.5	2250	508.75	4.42	8770
		33	2500	610.5	4.10	9268
		42.9	2750	793.65	3.47	9920
		52.1	3000	963.85	3.11	10332
		75.1	3500	1389.35	2.52	11270
	21	3	500	63	7.94	4180
		5.2	750	109.2	6.87	5060
		7.9	1000	165.9	6.03	5810
		10.4	1250	218.4	5.72	6500
		13.5	1500	283.5	5.29	7190
		16.25	1750	341.25	5.13	7647
		20.3	2000	426.3	4.69	8163
		24.5	2250	514.5	4.37	8748
		30.4	2500	638.4	3.92	9274
		37.4	2750	785.4	3.50	9900
		47.9	3000	1005.9	2.98	10302
		65.3	3500	1371.3	2.55	11196
		89.6	4150	1881.6	2.21	11930
APC13*6.5	14.8	3.7	500	54.76	9.13	3940	75℃ 10min
		6.3	750	93.24	8.04	4766
		9.2	1000	136.16	7.34	5482
		12.7	1250	187.96	6.65	6053
		16.6	1500	245.68	6.11	6637
		20.8	1750	307.84	5.68	7052
		25.8	2000	381.84	5.24	7627
		30.9	2250	457.32	4.92	8061
		36.6	2500	541.68	4.62	8385
		43	2750	636.4	4.32	8793
		54.6	3220	808.08	3.98	9397
	16.8	3.3	500	55.44	9.02	3971
		5.65	750	94.92	7.90	4744
		8.4	1000	141.12	7.09	5470
		11.3	1250	189.84	6.58	6022
		14.6	1500	245.28	6.12	6545
		18.6	1750	312.48	5.60	7040
		22.7	2000	381.36	5.24	7519
		27	2250	453.6	4.96	8012
		32.6	2500	547.68	4.56	8329
		37.5	2750	630	4.37	8826
		43	3000	722.4	4.15	9100
		68.3	3850	1147.44	3.36	10208
APC14*7	14.8	3.4	500	50.32	9.94	3325	97℃ 3min
		5.8	750	85.84	8.74	4062
		8.9	1000	131.72	7.59	4653
		12.1	1250	179.08	6.98	5238
		15	1500	222	6.76	5736
		19.5	1750	288.6	6.06	6121
		24	2000	355.2	5.63	6556
		28.8	2250	426.24	5.28	6847
		34.5	2500	510.6	4.90	7326
		40.8	2750	603.84	4.55	7603
		48.4	3000	716.32	4.19	7895
		68.7	3740	1016.76	3.68	8677
	16.8	3	500	50.4	9.92	3313
		5.2	750	87.36	8.59	4031
		7.7	1000	129.36	7.73	4678
		10.8	1250	181.44	6.89	5250
		13.8	1500	231.84	6.47	5712
		17.5	1750	294	5.95	6133
		21.4	2000	359.52	5.56	6527
		25.7	2250	431.76	5.21	6865
		30.2	2500	507.36	4.93	7320
		35.4	2750	594.72	4.62	7596
		41.3	3000	693.84	4.32	7909
		53.8	3500	903.84	3.87	8654
		83.6	4350	1404.48	3.10	9461

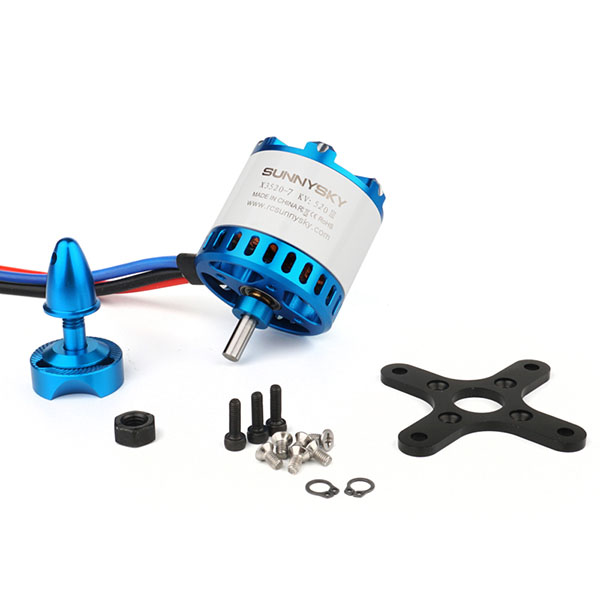

Includes:
1 x motor
1 x accessory bag
