   Electric (Brushless) Motors & Accessories Electric Brushless Motors - Inrunner SUXFLY 4060/1900KV 4-Poles Inrunner Brushless Motor 4060/3Y
SKU:  406019

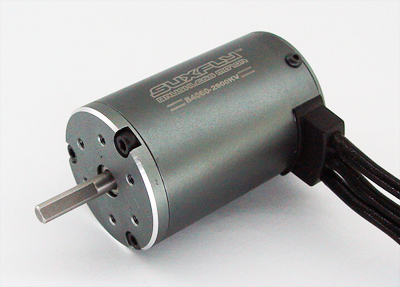

SUXFLY 4060/1900KV 4-Poles Inrunner Brushless Motor 4060/3Y
Customers rating.
Add To Wish List
Added:2011/12/12
Updated:2012/06/19
Follow Us on:



  Tags: 4-poles burshless motor

Features:
Compare to conventional 2-pole motors, the 4-pole motors feature:
- Higher efficiency.
- Larger torque.
- Lower heat productivity.
Specifications:
Model: 4060/3Y

Type Model Max Amp(A) Max Voltage(v) Battery (Li-Po) Max        Power  (W) KV    RMP/V Resistance
(Ω)		 No-load Current（7.4V）
 		 Diameter×Length (mm)
 Shaft diameter (mm)
4050/2Y 96 11 2S 1000 4600 0.0047 3.5A Φ40×50 Φ5.0
4050/3Y 68 16 3S 1000 3000 0.0098 2.2A Φ40×50 Φ5.0
4050/4Y 50 22 3-5S 1000 2360 0.0155 1.1A Φ40×50 Φ5.0
4060/2Y 108 17 3-5S 1700 2900 0.0053 2.2A Φ40×60 Φ5.0
4060/3Y 68 25 3-6S 1700 1900 0.0105 1.6A Φ40×60 Φ5.0
4060/4Y 55 44 3-8S 1700 1500 0.0184 0.8A Φ40×60 Φ5.0
4065/2Y  110  20  3-4S 2000  2700  0.0052  2.6A Φ40×65 Φ5.0
4065/3Y   70   27 3-6S 2000  1800  0.0104  1.8A Φ40×65 Φ5.0
4065/4Y   60   35 3-8S 2000 1400  0.0174  1.2A Φ40×65 Φ5.0
4074/2Y  120   20 3-4S 2600  2150  0.0062  1.8A Φ40×74 Φ5.0
4074/2.5Y  100  24 3-5S 2600  2000  0.0085  1.7A Φ40×74 Φ5.0
4074/3Y   80  35 3-8S 2600  1400  0.0130  1.2A Φ40×74 Φ5.0
4074/4Y   65  45 3-11S 2600  1050  0.0223  0.6A Φ40×74 Φ5.0
Includes/Requires:
Includes:
1 x motor
3 x bullet connectors
