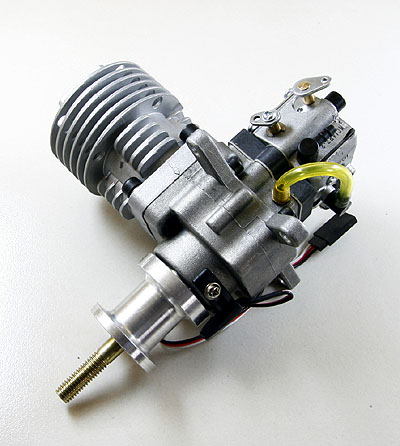

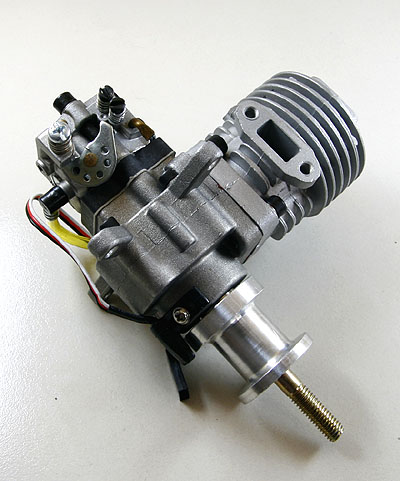

RCGF 15cc Petrol/Gas Engine for Airplane (Rear Induction)

Type : 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) : 15cc
Bore x Stroke (mm): 29mm*26mm
Carburetor : Walbro Pump(made in Japan) & Made in China (Diaphragm butterfly valve type)
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
Power supply: 4.8-6V
Maximum Output : 2.1 hp/1.54KW
speed rang : 1500-15000rpm
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1)
(90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
Lubrication Oil : 2 cycle engine oil
Propeller : 15*8 8000 rpm; 13*8 10000rpm (Standard Two leafs prop)
recommended props 13 x 6, 14 x6,13X8,15X8,15X6
recommended Airplane: 60 size plane,50 size plane,40 size plane
Cooling System : Air Cooled
Packing Weight :
N.W. (Including ignition and muffler ): 825g
N.W. (Not including ignition and muffler) : 635g

Includes:
1 x engine

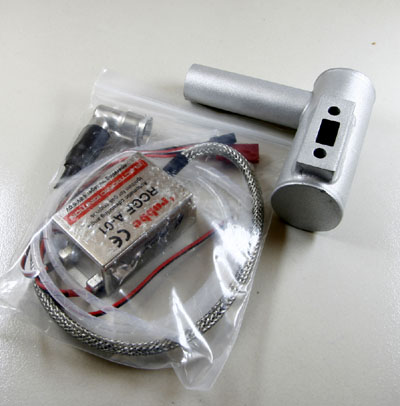

1 x CDI
1 x muffler

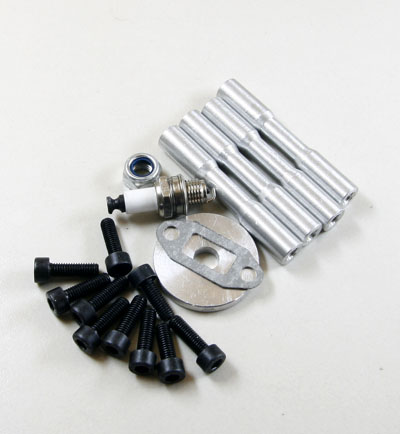

1 x set engine mount (standoffs)

(no manual)

Average Customer Review: 5 stars

15 customer review(s). [Write a review/question]

e****tos4

Grade:

Brother... este motor em 1 piper com 1,8m d envergadura fica o bixooo lindo d o voo!!! recomendado (hélice 13x8)
August 26 2012 Was this review helpful to you?

Yes [ 0 ]

No [ 1 ] [Reply this review]

r****ard.kolb
STD member

Grade:

My comrades, by the way this engine is the second verssão, because the first was giving too many problems, what do you think? I want to use in a Piper Pawnee was 40.Eu between fg-14b of saito or rcgf15cc.O or that price is much smaller, the problem is being Chinese .... I already have an asp 4 times for Pawnee and uses methanol as hell ... I'm in aguardo.Abraços.
February 10 2012 Was this review helpful to you?

Yes [ 0 ]

No [ 1 ] [Reply this review]

r****ard.kolb
STD member

Grade:

Meus camaradas, por acaso esse motor é a segunda verssão, pois a primeira estava dando muitos problemas, o que vocês acham?Eu quero usar em um piper pawnee 40.Eu estava entre o fg-14b da saito ou esse rcgf15cc.O preço é bem menor, o problema é ser chines....eu ja tenho um asp 4 tempos para o pawnee e consome metanol pra caramba...Fico no aguardo.Abraços.
February 10 2012 Was this review helpful to you?

Yes [ 0 ]

No [ 1 ] [Reply this review]

A****odellbau
Golden member

Grade:

Hello, do someone know the exact measure from the planes fromt to the prop hub?
Thanks
August 05 2011 Was this review helpful to you?

Yes [ 0 ]

No [ 1 ] [Reply this review]

J**** Fraile
Silver member

Grade:

Estoy volando un Dragon Lady, 4.625 g. pala 14x8. Una verdadera gozada. Maqueta total. La potencia del motor es la justa para volar un avion de este peso.
April 13 2011 Was this review helpful to you?

Yes [ 0 ]

No [ 2 ] [Reply this review]

m****

Grade:

Hi all,plse can anyone know ratio 30:1 ,how many in percentage (%)thanks indeed.
March 17 2011 Was this review helpful to you?

Yes [ 2 ]

No [ 0 ] [Reply this review]

Discussion of this review:

30:1 means 1 part of oil for 30 parts of gasoline, so for 100 parts of gasoline you will need 3.33 parts of oil= 3.33%
-- May 08 2011 by o****marso

33.3 mls to 1 litre of petrol
-- Jul 30 2011 by a****ervices

d****vw160864
STD member

Grade:

comprei um deses,vou colocar num stck 60 ..............
December 08 2010 Was this review helpful to you?

Yes [ 0 ]

No [ 1 ] [Reply this review]

c****te1

Grade:

Esse motor é excelente. Estou voando ele com uma hélice 14x6 num UltraStick .60. Voo perfeito, C.G. perfeito, lenta perfeita. Recomendo esta configuração para treinamentos, pois alia segurança/custo de combustível por tempo de voo.
November 30 2010 Was this review helpful to you?

Yes [ 0 ]

No [ 1 ] [Reply this review]

s****a

Grade:

MOTOR MT BOM, ESTOU VOANDO COM HÉLICE 14/6 NUM KATANA 60 DA PHOENIX MODEL. TIVEMOS QUE ABRIR BEM A AGULHA DE BAIXA, PORQUE TAVA DANDO FALTA NA MÉDIA. PEGA MT FÁCIL E TEM BOM TORQUE. ESTOU USANDO 25:1 PODIUM, CUSTO/BENEFÍCIO NOTA 10.
SAMPA/JUNDIAÍ
October 03 2010 Was this review helpful to you?

Yes [ 1 ]

No [ 1 ] [Reply this review]

p****o

Grade:

With coke run the motor well and without the coke doesn`t run
Run well with the Carburetor of the Gf 40i
August 24 2010 Was this review helpful to you?

Yes [ 0 ]

No [ 2 ] [Reply this review]
