- 1.5mm thick Fiberglass Central plate.
- Folding design, easier for carriage and storage. Assemble and disassemble without tools.
- Front-positioned camera tile mounting design (camera tile sold separately), so as the prop and landing skid can be out of camera view.

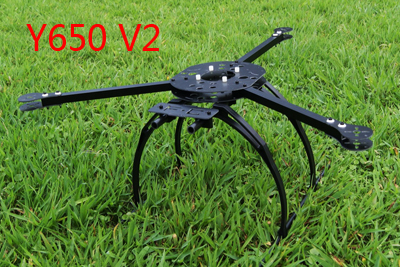

3-axial/Y6Copter DIY Frame - Folding Design Y650 V2
Motor spacing(distance between motor axles, cross side): 650mm
Weight: 545g
Mode: 3-axial, Y6
Central plate material: 1.5mm thick Fiberglass
Arm material: Aluminum with inner reinforcement rib
Landing skid type: high landing skid, easy-disassemble design
Height of landing skid: 190mm
Camera mount/tilt mounting tube diameter: 12mm
Motor mounting seat spacing: 16cm/ 19cm
Suggested setting (not included):
brushless motor: HL 3525 series or HiModel 2212-2217 series
KV range: 3S Lipo 800-1100KV; 4S Lipo 600-700KV
Suitable camera mount/tile: T12 (suite for Gopro HD19 camera etc)
* Not assembled, camera mount/tilt sold separately.
