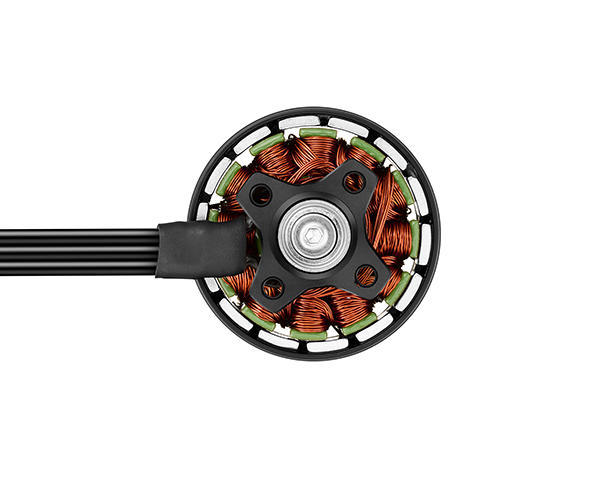

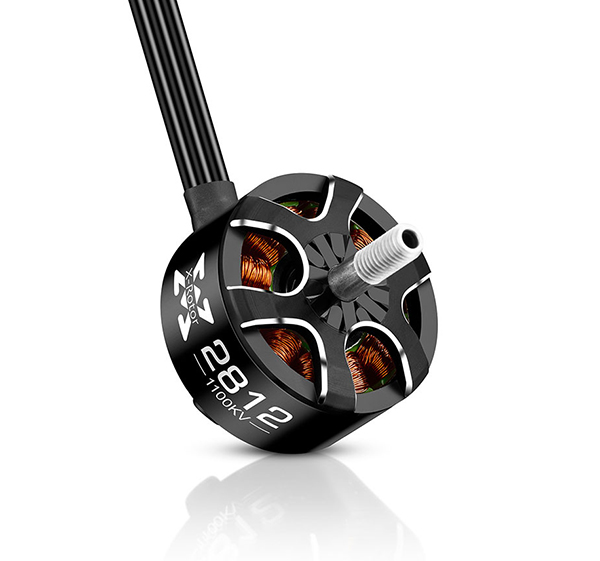

Hobbywing XRotor 2812 1100KV FPV Brushless Motor

Specifications

Product Number	30418003	30418004
KV Rating	900KV	1100KV
LiPo Cells（LiPo）	4-6S	4-6S
No-Load Current	1.5A/24V	1.88A/24V
Maximum Continuous Current	49.6A/9s	64.1A/10s
Maximum Continuous Rating	1191W/9s	1538W/10s
Maximum Thrust	3355g	3722g
Motor Weight	83.4g	83.8g
Motor Size	Φ34x25.5mm	Φ34x25.5mm
Slot/Pole	12N14P	12N14P
Wire Size	18AWG	18AWG
Wire Length	250mm	250mm
Enamelled Wire Insulation Class	220℃ High temperature Resistant, H Class insulation	220℃ High temperature Resistant, H Class insulation
Internal Resistance	63.9mΩ	46.6mΩ
Shaft Diameter	D5+M5	D5+M5
Shaft Length	15mm	15mm
Screw Diameter / Thread	Φ19mm-4xM3	Φ19mm-4xM3

Recommended
Props/ESCs

Recommended ESC	XRotor FPV G2 65A 4in1 ESC	XRotor FPV G2 65A 4in1 ESC
Propeller	4-6S:HQ8x4.5x3; HQ9x5x3	4-6S:HQ8x4.5x3

Includes:

1 x motor Hobbywing XRotor 2812 1100KV
