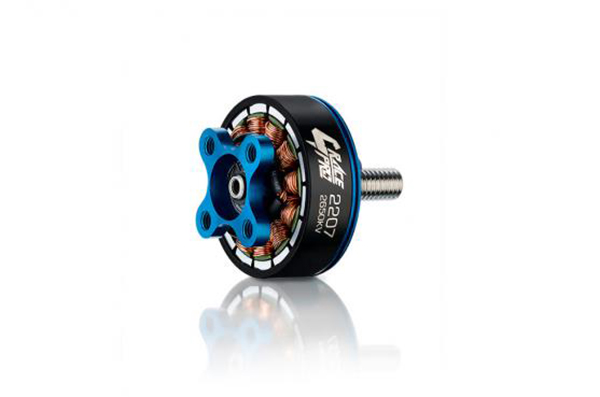

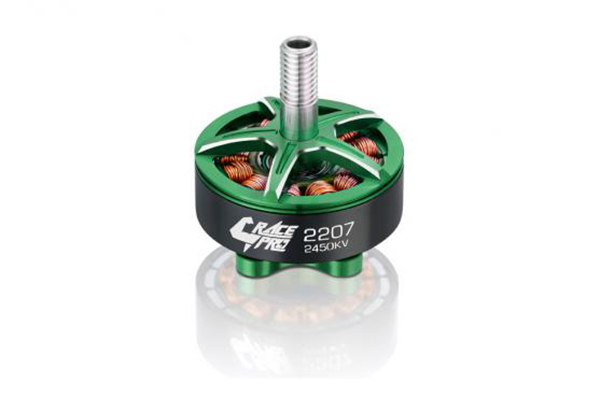

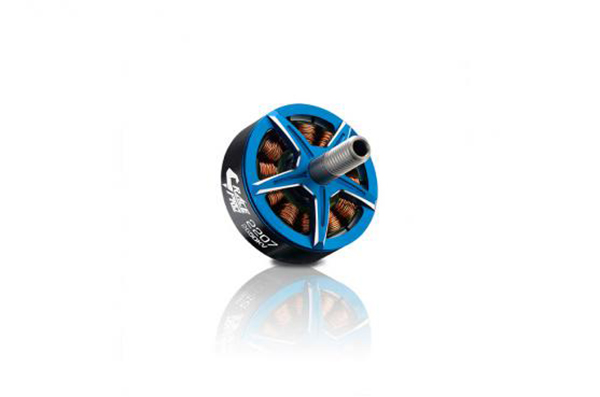

Hobbywing XRotor Race Pro 2207 2450KV Brushless Motor

Hobbywing XRotor Race Pro 2207 2450KV Brushless Motor

Specifications

Product Name

XRotor 2207 race pro 2650KV

XRotor 2207 race pro 2450KV

XRotor 2207 race pro 1750KV

Product Number

30405121

30405120

30405122

Relevant Parameters

KV Rating

2650KV

2450KV

1750KV

LiPo Cells

4-5S

4-6S

No-Load Current(A/10V)

1.4A

1.2A

0.8A

Motor Resistance

37mΩ

40mΩ

65mΩ

Max Continuous Current / Power

51.40A/822.4W(4S)

50.09A/947.2W(5S)

39.75A/953W(6S)

Stator Diameter/Thickness

22mm/7mm

Slot/Plot Count

12S/14P

Motor/Shaft Diameter

27.5mm/4mm

Motor Length (w/o, w/ Shaft)

17.3mm/30.7mm

Weight

31.79g/29.5(w/o wires)

<td style="box-sizing: border-box; margin: 0px; padding: 10px; border-width: 0px 0px 1px; border-top-style: initial; border-right-style: initial; border-bottom-style: solid; border-left-style: initial; border-top-color: initial; border-right-color: initial; border-bottom-color: rgb(212, 213, 214); border-left-color: initial; border-image: initial; outline: 0px; font-size: 15px; font-family: MyriadPro-R<td style="box-sizing: border-box; margin: 0px; padding: 10px; border-width: 0px 0px 1px; border-top-style: initial; border-right-style: initial; border-bottom-style: solid; border-left-style: initial; border-top-color: initial; border-right-color: initial; border-bottom-color: rgb(212, 213, 214); border-left-color: initial; border-image: initial; outline: 0px; font-size: 15px; font-family: MyriadPro-Regular; vertical-align: middle; text-align: center; width: 95px; color: rgb(85, 86, 90); background-color: rgb(229, 246, 252);"<td style="box-sizing: border-box; margin: 0px; padding: 10px; border-width: 0px 0px 1px; border-top-style: initial; border-right-style: initial; border-bottom-style: solid; border-left-style: initial; border-top-color: initial; border-right-color: initial; border-bottom-color: rgb(212, 213, 214); border-left-color: initial; border-image: initial; outline: 0px; font-size: 15px; font-family: MyriadPro-Regular; vertical-align: middle; text-align: center; width: 91px; color: rgb(85, 86,<td style="box-sizing: border-box; margin: 0px; padding: 10px; border-width: 0px 0px 1px; border-top-style: initial; border-right-style: initial; border-bottom-style: solid; border-left-style: initial; border-top-color: initial; border-right-color: initial; border-bottom-color: rgb(212, 213, 214); border-left-color: initial; border-image: initial; outline: 0px; font-size: 15px; font-family: MyriadPro-Regular; vertical-align: middle; text-align: center; width: 97px; color: rgb(85, 86, 90); background-color: rgb(229, 246, 252);</tbo<

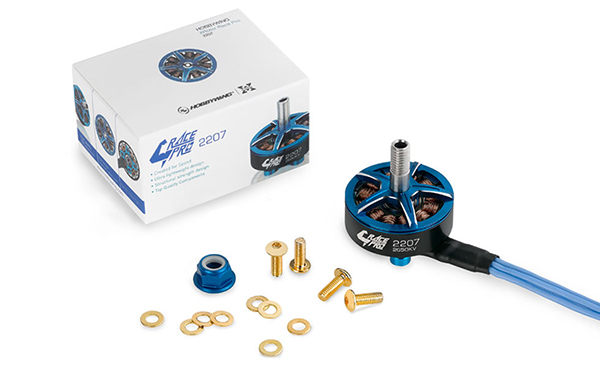

Includes/Requires:

Includes:

1 x motor
1 x accessory bag

Customer Reviews:

Please explain:
Messages of this section are not monitored by HiModel, it is for review and discussion among customers only.

Upload Image:
(Up To 5 Files, only .jpg/.gif/.png files are accepted and sizes below 2MB for each)

Post as: Review Question

Select grade: star(s)

Anonymous: Yes No

KV (measured value)	Motor	Propeller(s)	Voltage(V)	Throttle(%)	Current(A)	Thrust(g)	Speed(RPM)	Efficiency(g/W)	Power(W)	Max. Throttle Temperature(℃)
	Xrotor Race Pro 2207 2650KV	Azure Power 5150-3	16	5	0.84	55	5384	4.09	13.44	91.3℃	Ambient Temperature 23℃
			16	28	11.31	518	16159	2.86	180.96
			16	52	23.59	905	21726	2.40	377.44
			16	76	36.05	1235	25000	2.14	576.8
			16	100	51.40	1647	28571	2.00	822.40
	Xrotor Race Pro 2207 2450KV	Azure Power 5150-3	16	5	0.75	53	5275	4.41	12	82.8℃
