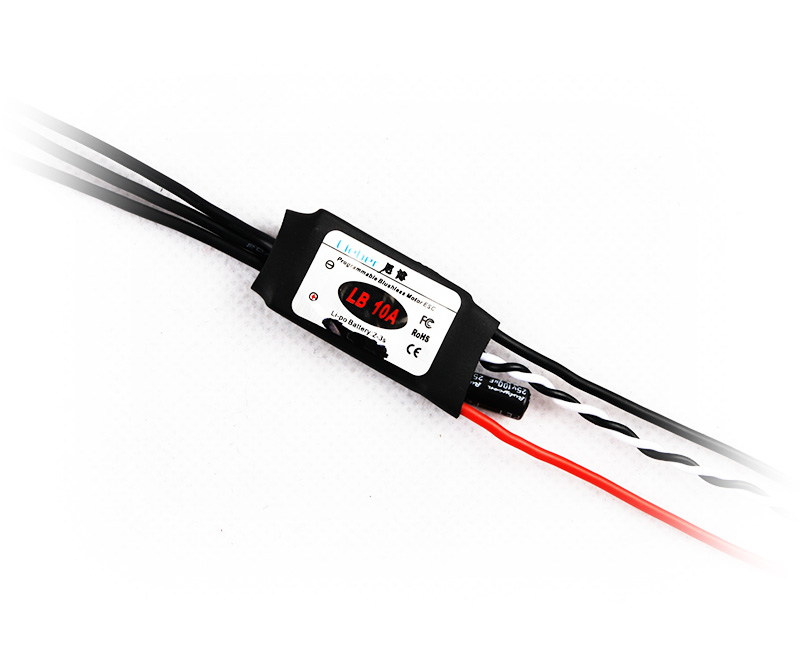

LB 10A Brushless Speed Controller for Multi-rotor LB-OPTO-10A

Features:
Special core program for multi-rotor controllers greatly improves throttle response.
Specially optimized software for excellent compatibility with disc-type motors.
Specially designed for multi-rotor aircraft without BEC output.
Compatible with various flight-control systems and supports a signal frequency of up to 621Hz
MOSFET with extra-low resistance brings high performance and great current endurance.

LB 10A Brushless Speed Controller for Multi-rotor LB-OPTO-10A

Output: Continuous 10A, Burst 12A up to 10 seconds.
Input Voltage: 2-4S Lipo, 6-12 cells NiMH (It is a inadvertent mistake on the label of first batch saying 2-3S, confirmed by the manufacturer that this ESC does support 4S)
Refresh rate of the throttle signal: 50Hz – 621Hz
Size: 26 x 15 x 4(Lx Wx H)
Weight: 6g

Includes:
1 x ESC

Average Customer Review: 3 stars

3 customer review(s). [Write a review/question]

mlhebel

Grade:

Tried to program with Tx sticks according to instructions< no Luck changing timing. Setting throttle PWM range works like typical ESC. Programming mode seems to be impossible to enter as instructions indicate.
February 16 2016 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

mlhebel

Grade:

HOLYMOLY this is NOT a good ESC the way it comes out of the box It heats up to 150*F running a 5X3 Gemfan at 4.8A 17,245 RPM 3SV 12.31V any more than that and the motor pulses. This could be a timing problem but how is that set? are there any programming instructions? Even at 3A on 3S this ESC hits 135*F. I really, really doubt that this ESC could handle 4S. I have 3 more to test but I doubt the results will improve, if they do I will post it within a day or two at most. I will also try the other 2 brands 10A ESC I purchased at the same time I ordered these. EEEEK!
July 07 2015 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

c****ri

Question :
which firmware used in this ESC? Simonk or BLheli?

May 11 2015 Was this question helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this question]
