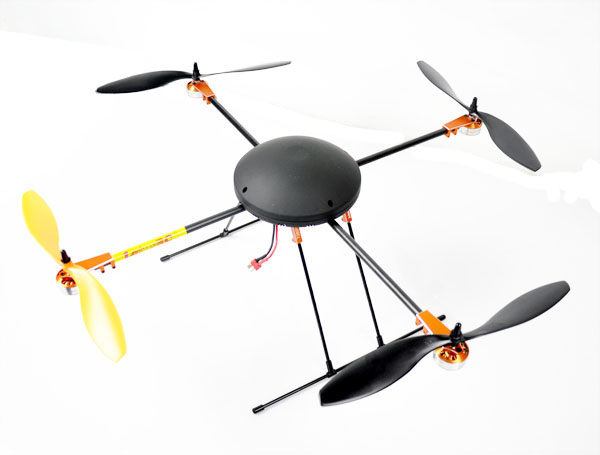

LOTUSRC T580P Quadcopter ARTF (Half Assembled)

1. Function and features
T580p quad-copter is a mid-level model product in DIY-type aircraft, designed for flight photography players.
1) High efficiency: with 12inch slow fly propellers, disc brushless motor, optimal efficiency can reach 12g/W.
2) Stability: take high-performance MEMS sensor for 6DOF stabilization with low drift, shock resistance ability.
3) Simple: only require 4channel to fly. Property core system, it is compatible to near all RC equipments.
4) Easy to use: can be installed quickly, easy to operate, and support planar self-stabilizing PTZ function.
5) T580P can take off and land vertically, spot hover, altitude hold, fly left, right, etc.
6) On the bottom of this aircraft, we can install a camera mount. It takes suspension system between PTZ (camera mount) and ARF, and can filter high and low frequency vibration. Camera mount swings on the cross beam of LG, can be installed and dismantled quickly.

No.	Name	Specification	Quantity	Unit
1	Cover	ABS composite material	1	Set
2	Arm beam	Carbon fiber/glass fiber	4	Pcs
3	Landing gear	Glass fiber/rubber/high-strength aluminum	1	Set
4	Motors	C2806 KV600 Out runner brushless motor	4	Pcs
5	Propeller	1260、1260R Plastic composite	4	Pcs
6	Camera mount	Carbon fiber/carbon fiber planar balance	1	set
7	PTZ hanging bracket	Flexible damper	1	Set
8	PTZ steering engine	Metal high-speed digital steering engine	2	Pcs
9	Brushless motor	2-3S 18A high-speed ESC	4	Pair
10	FC system	Inertial attitude self-stable system	1	set

Technical parameters

Aircraft dimension	608 × 608 × 243	Mm
Maximum expandable size	885 × 885 × 243	Mm
Motor to motor	Diagonal distance between two motor centers	580mm
Propeller	1260frontal and versa props	12inch
Battery	LiPo 3S 2200mAh 20C	Standard 1p
Aircraft weight(kit only)	Without battery, receiver, applicable payload	730gram
Take-off weight	3S 2200mAh 1P battery, receiver, camera mount	950gram
Recommended payload	Card-type camera	≤230gram
Maximum pull	1P standard battery	2400gram
maximum payload	1P standard battery	≤580gram
Maximum take-off weight	1P standard battery	1800gram
Flight distance	Visual area	-
Flight time	3S 2200mAh 1P battery, receiver	12mins
Wind resistance	≤4	Class
