LOTUSRC T580P+ Quadcopter (Folding design)

THIS IS THE NEW VERSION WITH UPGRADED ESC & FLIGHT CONTROL.

Functions and features
T580P+ is our latest mid-level aircraft model designed base on T580 and T580P. It’s for flight photography players.
1) High efficiency: with 14inch slow rotate propellers and disc brushless motors. The optimal working efficiency can reach 11.5g/W.
2) Stability: take high-performance MEMS sensor for 6DOF stabilization with low drift, shock resistance ability.
3) Simple: only require 4channel to fly. Property core system, it is compatible to all RC equipments
4) Easy to use: can be installed quickly, easy to operate, and support planar self-stabilizing PTZ function.
5) T580P+ can take off and land vertically, spot hover, altitude hold, fly left, right, etc.
6) Install a camera mount at the bottom of the aircraft. You can adjust pitching angle of PTZ through RC. Suspension system with high-efficient filter function and low frequency vibration is used to connect camera mount and aircraft. Camera mount swings on the cross beam of LG, can be installed and dismantled quickly

■ Configuration and Specification

No.	Names	Specification	Qty.	Unit

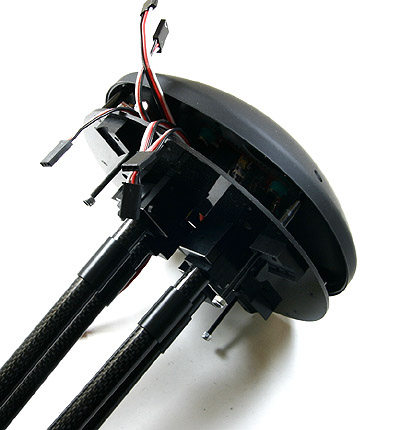

1	Cover	Engineering plastic+3K carbon fiber	1	Set
2	Arm beam	Engineering plastic+3K carbon fiber	4	Pcs

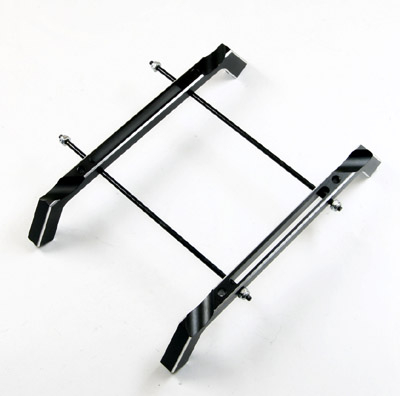

3	LG	Glass fiber/rubber/high-strength aluminum	1	Set

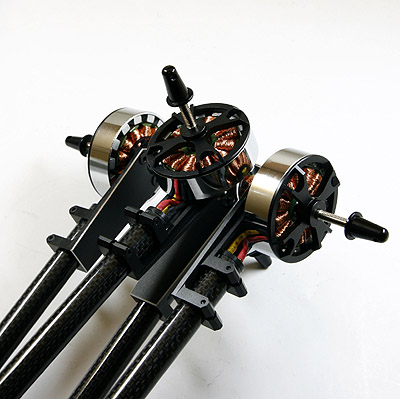

4	Motor	C3410 KV400 out runner brushless motor	4	Pcs
5	Props	1445engineering plastic	2	Pair
6	PTZ(choose)	Carbon fiber, with shutter, single axis	1	Set
7	PTZ hanging bracket	Flexible damper	1	Set
8	PTZ steering engine	Metal high-speed digital steering engine	2	Pcs
9	Brushless motor	2-3S 18A high-speed ESC	4	Pair
10	FC system	Metal high-speed digital steering engine	1	Set

■ Technical parameters

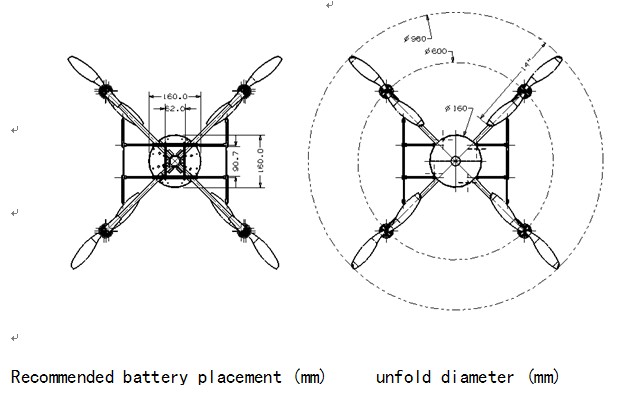

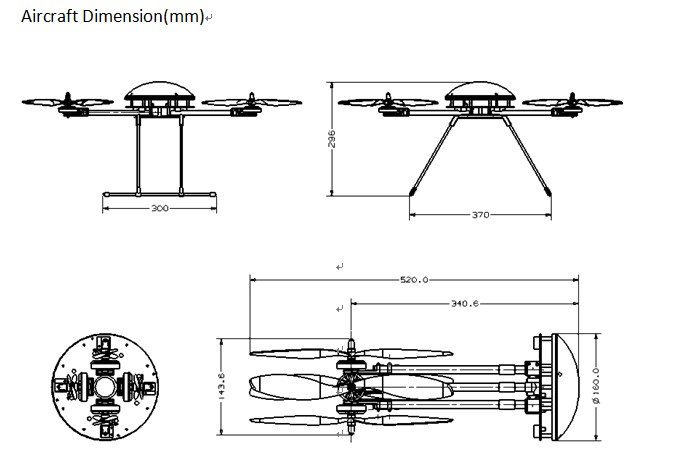

Aircraft dimension	634 × 634 × 296	mm
Maximum expandable size	960 × 960 × 296	mm
Folded size	D160 × 520	mm
Motor to motor	Diagonal distance between two motor centers	600mm
Propeller	1447 frontal and versa professional props	14inch
Battery	LiPo 3S 4250mAh 20C	standard1P
Aircraft weight(kit only)	Without battery, receiver, applicable payload	1000gram
Take-off weight	3S 4300mAh 1P battery, receiver, camera mount	1400gram
Recommended payload	DV/ Card-type camera	≤500 gram
Maximum pull	1P standard battery	6000 gram
maximum payload	1P standard battery	≤1000 gram
Maximum take-off weight	1P standard battery	2500 gram
Flight distance	Visual area	-
Flight time1	3S 4300mAh 1P battery, receiver	10~12 mins
Flight time 2	4S 10000mAh 1P battery, receiver(for upgrade)	20~25 mins
Flight time 3	6S 10000mAh 1P battery, receiver( for upgrade)	Undetermined
Wind resistance	≤5；4 class wind, can cruise normally	Class

Includes:
1x Pre-installed aircraft main body, including brushless ESC, flight control panel, motor.

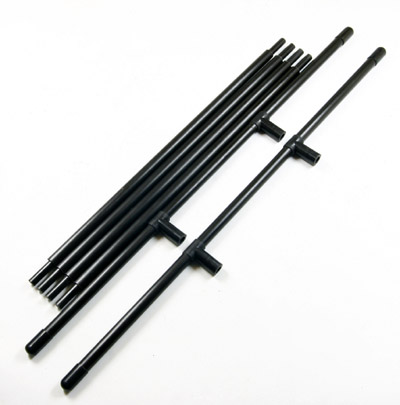

1x stands unit

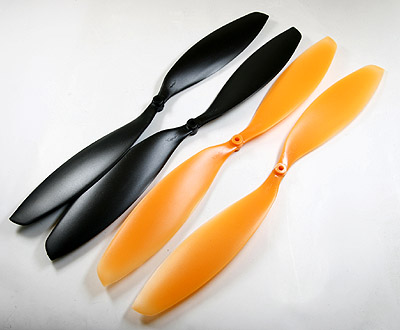

2x pairs of special propellers in positive and negative (one pair Orange, one pair black).

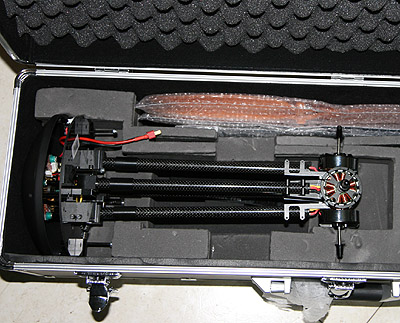

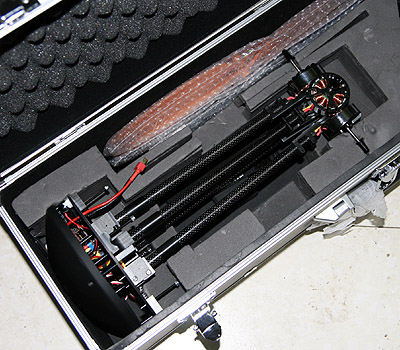

* Carton packing, NO carrying case.
* Pan & tilt for camera is not included.
