   Multi-rotors Flight Controller (FC) Mini Super_S F4 Flight Control W/ Built-in OSD, 5V BEC
   FPV/ Aerial Photography Flight Controller/OSD/ GPS/ Stablizer
SKU:  MINIF4

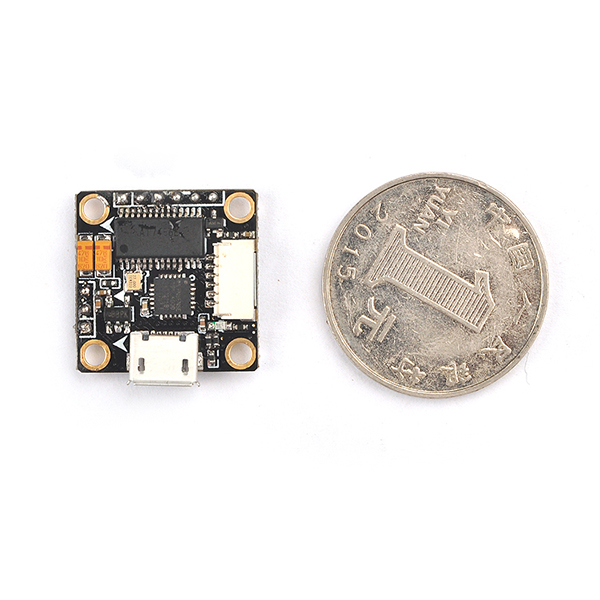

Mini Super_S F4 Flight Control W/ Built-in OSD, 5V BEC
Customers rating.
Add To Wish List
Added:2017/06/27
Updated:2017/06/27
Follow Us on:


  Tags: Mini Super  S F4 Flight Control W/ Built-in OSD  5V BEC

Features:
-Support programmable LED Sprit (turn off transponder before using)
-Support BLheli/BLHELI_S suite Pass-through ready
-Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
-Support the newest DSHOT ESC
-Built-in voltage detection, alarm
-Built-in Betaflight-OSD, Configure by Betaflight GUI
-Buzzer Ready (Solder pin)
-LED_STRIP Ready (Solder pin)
Specifications:

Mini Super_S F4 Flight Control W/ Built-in OSD, 5V BEC

Item name: Super_s F4 flight controller board
Size: 20*20mm
Mounting hole: 16*16mm
Mount hole Diameter: 2mm
Weight: 2.3g
Processor: STM32F405RGT6
Sensor: MPU-6000 ( connected by SPI)
Firmware version: betaflight_3.1.7_OMNIBUSF4SD
Built-in ESC: 5V 500MA
Power supply: 2S lipo battery ( 6.5V-8.4V)
Receiver: PPM, IBUS, SBUS, DSM2, DSMX etc.
Suitable for Micro FPV brushless frame






Includes/Requires:
Includes:
1x F4 flight controller board
1 x connection cable
4 x M2*5+5 Nylon column
4 x M2 Nuts
4 x M2 Screw
