Power Module for APM2.5/ APM2.6 Flight Controller ( BEC)

FPV/ Aerial Photography

Flight Controller/OSD/ GPS/ Stablizer

SKU: APM50A

Power Module for APM2.5/ APM2.6 Flight Controller ( BEC)

Customers rating.

Add To Wish List

Added:2014/04/16
Updated:2016/10/08

Follow @HiModel

6A7160757200

PRICE(USD):

$6.06 In stock

Member PRICE:

Sign in or Sign up for member price

QTY:

Tags: multi-rotor controller fly control flight control autopilot ARDUPILOT MEGA2.6

Features:

* Wires & connectors are not soldered nor included, customer need to buy wires/connectors separately and solder themselves. 12AWG silicon wire & T-connector or XT60 connectors is suggested.

Function:
Testing battery voltage & working current, flight controller receive the data then calculate remaining capacity and remaining flight time.
Parameters are identical with 3DR official version, settings of mission planer can refer to official Wiki setting.

Specifications:

Power Module for APM2.5/ APM2.6 Flight Controller

Voltage supported: up to 50V
Max current: 90A
Dimension: 24 x 22mm
Weight: 4.2g

Includes/Requires:

Includes:

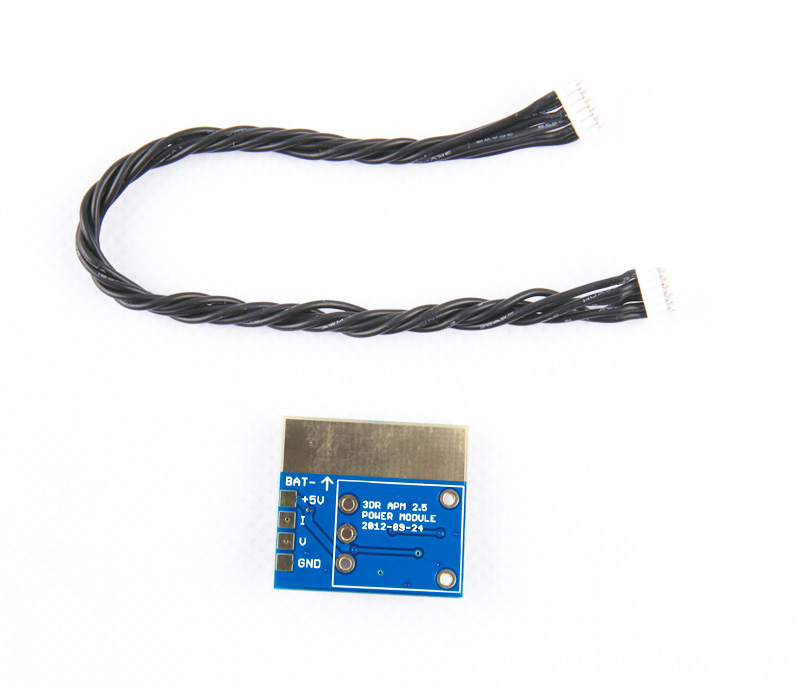

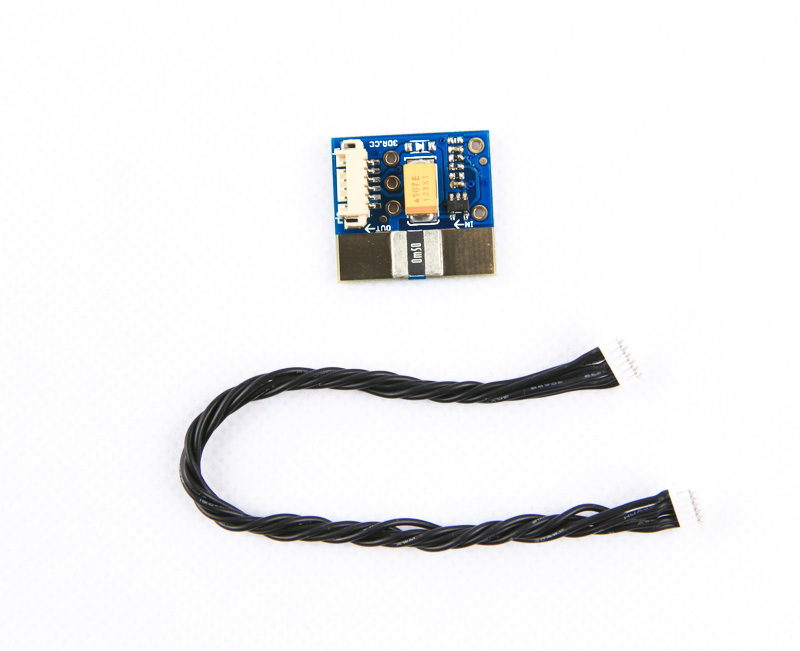

1 x power module
1 x cable

Customer Reviews:

Average Customer Review: 5 stars

1 customer review(s). [Write a review/question]

teddycool

Grade:

This module is absent of a BEC daughter board. The two voltage pins give 0 volts. If you wish to add a regulated 5 volts at 2 to 3 amps (which was recommended to power the APM, HK mega or the mini version). Solider the output of a UBEC to the 5v and GND pads on the back of the module. On the input side of the UBEC connect the voltage and ground to the larger pads. It worked for me. I can now power the APM with the supplied cable of the module.
October 03 2014 Was this review helpful to you?

Yes [ 0 ]

No [ 0 ] [Reply this review]

Please explain:
Messages of this section are not monitored by HiModel, it is for review and discussion among customers only.
