SKU:  M80190

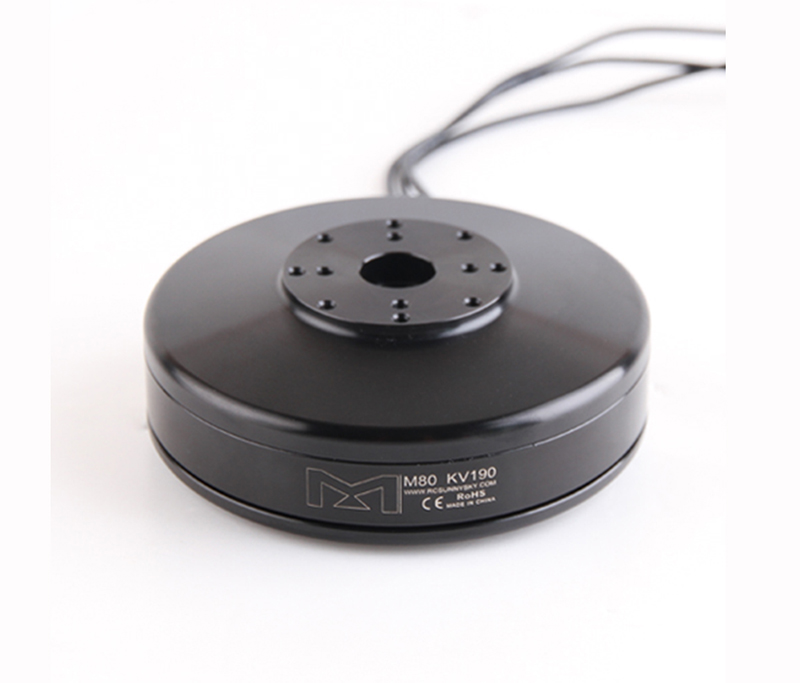

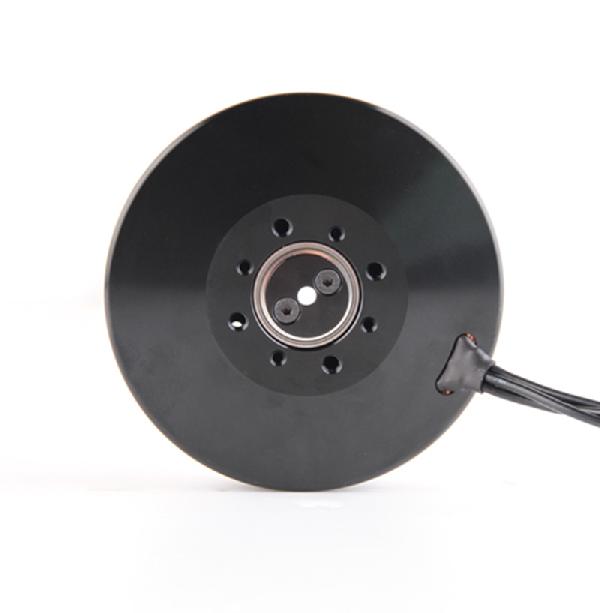

SUNNYSKY M80 190KV Outrunner Brushless Motor for multi-rotors
Customers rating.
Add To Wish List
Added:2015/09/18
Updated:2015/09/18
Follow Us on:



  Tags: SUNNYSKY  M80  190KV  Outrunner  Brushless  Motor  for  multi-rotors

Specifications:

SUNNYSKY  M80 190KV Outrunner Brushless Motor for multi-rotors


Specifications M80
No. of Stator Arms 36
No. of Stator Poles 40
Motor Kv  190
No-Load Current (A/10V)  1.6A
Motor Resistance  48mΩ
Max Continuous Current  45A/30S
Max Continuous Power 1000W
Weight 356g
Outside Diameter 88.6mm
Shaft Diameter 10mm
Body Length 31.5mm
Overall Shaft Length 31.5mm
Max Lipo Cell  6S
ESC 60A
Recommended Prop(inch) TM26x8.5M; TM29x9.5
Suggested multicopter weight @ 6S ≤ 2500g x (# of axis)



Prop
Volts
Amps
Thrust(g)
Watts (W)
Efficiency
Temperature @ full throttle
(inch)
(V)
(A)
(g/W)
TM26*8.5 22.2 3.5 1000 77.7 12.9
4.4 1200 97.68 12.3
5.4 1400 119.88 11.7
6.4 1600 142.08 11.3
7.4 1800 164.28 11.0
8.5 2000 188.7 10.6
9.9 2200 219.78 10.0
10.9 2400 241.98 9.9
12 2600 266.4 9.8
13.3 2800 295.26 9.5
14.4 3000 319.68 9.4
16.1 3200 357.42 9.0
17.2 3400 381.84 8.9
18.8 3600 417.36 8.6
20 3800 444 8.6
22 4000 488.4 8.2
23.5 4200 521.7 8.1
25.4 4400 563.88 7.8
26.7 4600 592.74 7.8
28 4800 621.6 7.7
29.9 5000 663.78 7.5
31.8 5200 705.96 7.4
34.5 5400 765.9 7.1
36.6 5600 812.52 6.9
38.1 5800 845.82 6.9
38.8 5890 861.36 6.8 56℃
TM29*9.5 22.2 3.3 1000 73.26 13.7
4 1200 88.8 13.5
4.8 1400 106.56 13.1
5.7 1600 126.54 12.6
6.7 1800 148.74 12.1
7.5 2000 166.5 12.0
8.7 2200 193.14 11.4
9.6 2400 213.12 11.3
10.9 2600 241.98 10.7
12 2800 266.4 10.5
13.4 3000 297.48 10.1
14.8 3200 328.56 9.7
16 3400 355.2 9.6
17.1 3600 379.62 9.5
18.7 3800 415.14 9.2
20.3 4000 450.66 8.9
21.9 4200 486.18 8.6
23.6 4400 523.92 8.4
24.7 4600 548.34 8.4
26.8 4800 594.96 8.1
28.4 5000 630.48 7.9
29.6 5200 657.12 7.9
31.8 5400 705.96 7.6
33.6 5600 745.92 7.5
36.1 5800 801.42 7.2
37.5 6000 832.5 7.2
38.8 6200 861.36 7.2
41.3 6400 916.86 7.0
42.8 6600 950.16 6.9
46.7 6800 1036.74 6.6
49.8 7000 1105.56 6.3
51.5 7200 1143.3 6.3
53 7400 1176.6 6.3 80℃ overload


Includes/Requires:
Includes:
1 x motor

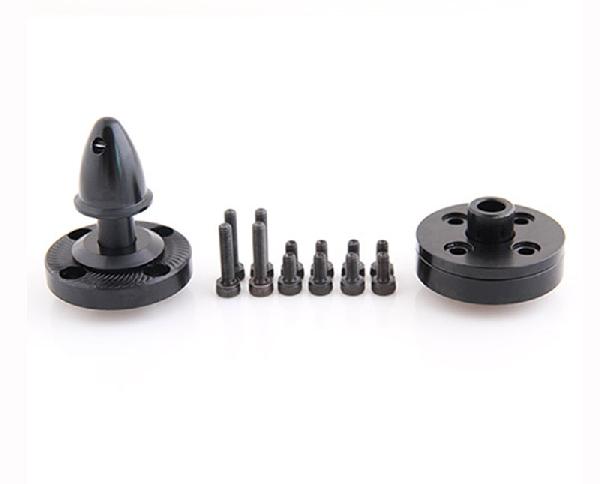

1 x accessory bag
