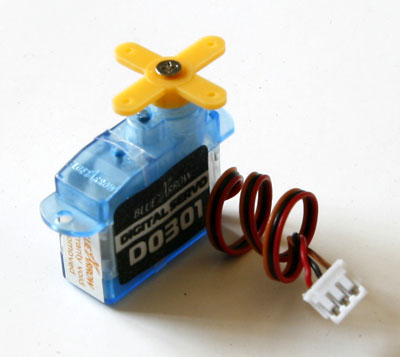

BlueArrow 3.2g/0.35kg-cm Torque Ultra-micro Digital servo D0301
SKU: DD0301
Browse
Blue Arrow
BlueArrow 3.2g/0.35kg-cm Torque Ultra-micro Digital servo D0301
Customers rating.
Add To Wish List
Added:2008/12/27
Updated:2008/12/27
Follow Us on:
Follow @HiModel
Tags:
BlueArrow
3.2g/0.35kg-cm Torque
Ultra-micro
Digital servo
Features:
Amplifier type: Digital Pulse Width /Fet Driver
Potentiometer Type: PT6
Potentiometer Resistance: 10K Ω
Motor Type: 3F Coreless Motor
Gear Material: POM(Polyformaldehyde)

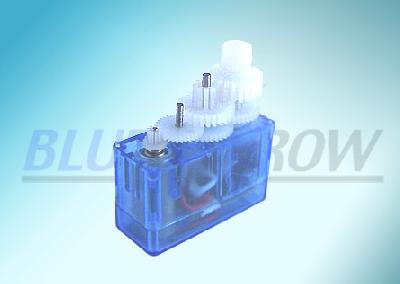

Gear Series: 5
Gear Ratio: 1:400
Output gear diameter: Φ3.64 mm (Φ0.14 in)
Crust Material: Transparent PC
Crust Color: White
Splined Horns: 5 Class
Top Ball Bearing: NONE
Connector Wire Length: 130mm (5.12 in)
Pitch: 1.25mm/1.5mm
Connector Wire SPEC: 0.08mm*11
Servo Weight: 2.7g(0.10oz)
3.2g(0.11oz)(including wire)

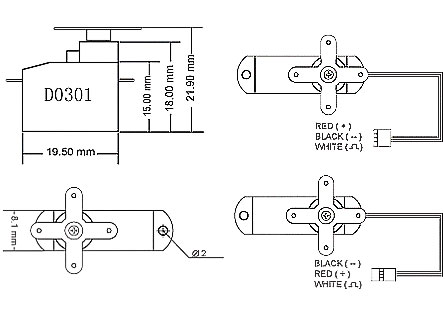

Size: 19.5mm*8.1mm*21.9 mm
(0.77in*0.32in*0.86 in)
Specifications:
Technical Data:
Control System: Pulse Width Control
Speed: 0.06sec/60°@4.8V
0.05sec/60°@6.0V
Test Voltage: 4.8V/6V
Idle Current: 4mA
Running Current: 110mA
Hold Current: 300 mA
Operating Angle: 45°/ 500µs
Pulse Width Scope: 1000µs-2000µs
Torque: 0.30kg•cm @4.8V
4.17oz•in @4.8V
0.35kg•cm @6.0V
4.86oz•in @6.0V
Includes/Requires:
Includes:
1 x digital servo with servo horns
