Amplifier type: Digital Pulse Width /Fet Driver
Potentiometer Type:PT6
Potentiometer Resistance: 10K Ω
Motor Type: 5F Coreless Motor

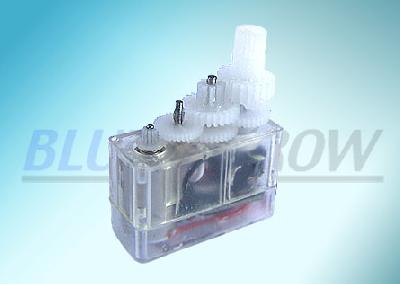

Gear Material: POM(Polyformaldehyde)
Gear Series: 5
Gear Ratio: 1:400
Output gear diameter: Φ3.8 mm (Φ0.15 in)
Crust Material: Transparent PC
Crust Color: White/Gray
Splined Horns: 5 Class
Top Ball Bearing: NONE
Plug Specification: JR
Connector Wire Length: 130mm (5.12 in)
Connector Wire SPEC.: 0.08mm*20
Servo Weight: 2.9g(0.10oz)
3.6g(0.13oz)(including wire)

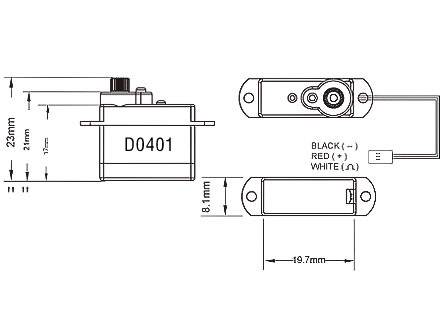

Size: 19.7mm*8.1mm*23mm
(0.78in*0.32in*0.91 in)

Technical Data:
Control System: Pulse Width Control
Speed: 0.09sec/60°@4.8V
0.08sec/60°@6.0V
Test Voltage: 4.8V/6V
Idle Current: 4mA
Running Current: 110mA
Hold Current: 350 mA
Operating Angle: 45°/ 500µs
Pulse Width Scope: 1000µs-2000µs
Torque: 0.45kg•cm @4.8V
6.25oz•in @4.8V
0.55kg•cm @6.0V
7.64oz•in @6.0V

Includes:

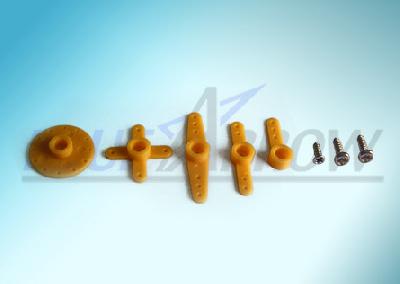

1 x digital servo with servo horns
