Features:
Amplifier type: Digital Pulse Width /Fet Driver
Potentiometer Type: R103N
Potentiometer Resistance: 10K Ω
Motor Type: Strong Magnetoe Motor

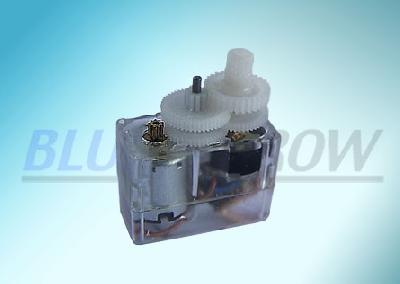

Gear Material: POM(Polyformaldehyde)
Gear Series: 4
Gear Ratio: 1:350
Output gear diameter: Φ3.83 mm (Φ0.15 in)
Crust Material: Transparent PC
Crust Color: White
Splined Color: Black
Splined Horns: 4 Class
Top Ball Bearing: NONE
Plug Specification: JR
Connector Wire Length: 160mm (6.03 in)
Connector Wire SPEC: 0.08mm*20
Servo Weight: 6.8g(0.24oz)
7.8g(0.28oz)(including wire)

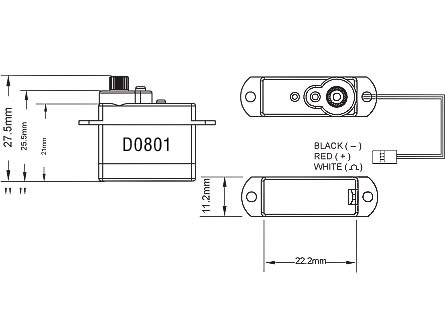

Size: 22.2mm*11.2mm*27.5mm
(0.87in*0.44in*1.08 in)

Technical Data:
Control System: Pulse Width Control
Speed: 0.09sec/60°@4.8V
0.08sec/60°@6.0V
Test Voltage: 4.8V/6V
Idle Current: 4mA
Running Current: 350mA
Hold Current: 1 A
Operating Angle: 45°/ 500µs
Pulse Width Scope: 1000µs-2000µs
Torque: 1.35kg•cm @4.8V
18.75oz•in @4.8V
1.60kg•cm @6.0V
22.22oz•in @6.0V

Includes:

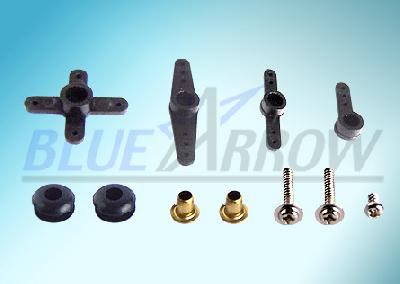

1 x digital servo with servo horns
