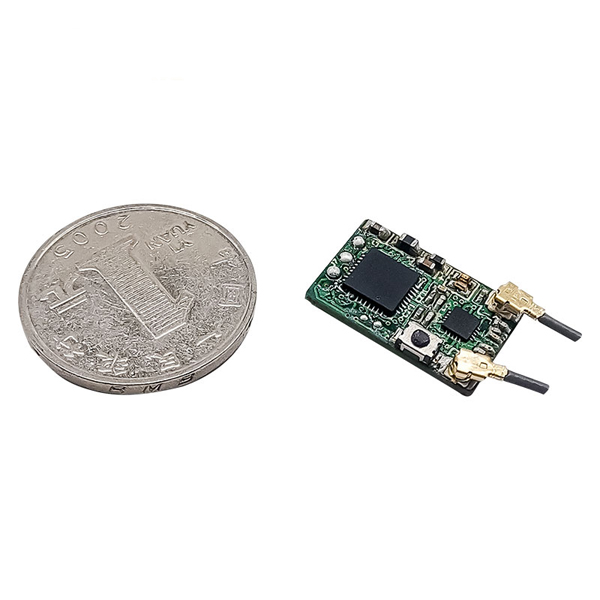

CORONA 2.4Ghz Mini 8-Channel Receiver M6D8 (D8 compatible)

Specifications:

Dimension: 20X13X3mm

Weight: 2g

Operating Voltage Range:3.5V-10.0V

Operating Current: Ｍax 60mA

Operating Range: Full range1.5km

SBUS Frame Rate: 9ms

Bind procedure:

First, turnon the TX and swicth to Bind mode. Second, power on the receiver whileholding the F/S button on the receiver (not connect any servo or other device) and you can see agreen LED going on steady on the receiver. And buzzer begins to sound beebee.The red LED on the receiver will flash, indicating the bind iscompleted. Turn off both the transmitter and the receiver. Turnon the transmitter and power on the receiver. The greenLED that going on steady on the receiver indicates that the receiver isreceiving commands from the transmitter.

Fail safe Setting:

  The compatiblereceivers support failsafe set on the receiver. Turn on the transmitter and poweron the receiver. User can press and release the F/S button as pictured and allchannels data will be recorded by the receiver in the first 30s beforereceivers and TX are connected. When operating failsafe setting, it is notrecommended that servos or other devices connect with the receiver. After completingfailsafe setting, a stable power supply to the receiver is recommended.

      Failsafe setting will be cancelled whenresetting the bind procedure

LED Status Indication

Range check:

   We suggest user do a range checkbefore flying any new bind receiver.
