   Radios Servos & Accessories Mini / Micro Servos Corona 4.8kg / 0.10sec / 8.5g Metal Gear Digital Servo DS-843MG
SKU:  DS843MG
Browse CORONA

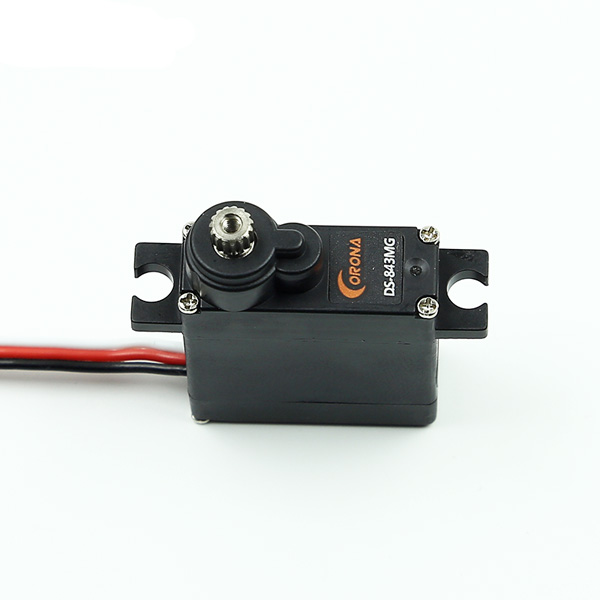

Corona 4.8kg / 0.10sec / 8.5g Metal Gear Digital Servo DS-843MG
Customers rating.
Add To Wish List
Added:2020/10/09
Updated:2020/10/09
Follow Us on:



  Tags: Corona  4.8kg  0.10sec  8.5g  Metal  Gear  Digital  Servo  DS-843MG

Specifications:

Corona 4.8kg / 0.10sec / 8.5g Metal Gear Digital Servo DS-843MG


Item No DS843MG
Size 23x9x23mm(0.9"x0.35"x0.9")
Weight 8.5g
Operating Voltage 4.8V / 6.0V
Operating Current 200mA / 220mA
Operateing speed 0.12sec.60º/ 0.10sec.60º
Stall torque 4.0kg.cm / 4.8kg.cm
Dead band ≤3uSec
Operating speed 40º/one side pulse traveling 400us
Potentiometer High precision of Japan origin
Ball bearing MR74
Gear Metal
Connector wire length 200mm
Operating Temperature Range -20 ℃ to +60℃
Includes/Requires:
Includes:

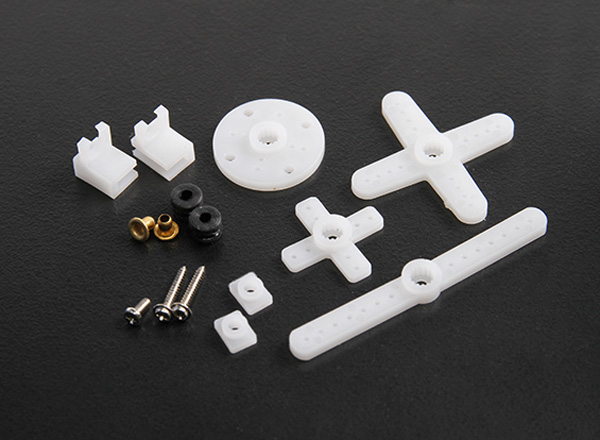

1 x servo with servo horns
