   Radios Servos & Accessories Standard/Middle Size Servos Corona 4kg / 0.06sec / 32g Metal Gear Digital Servo DS-319MG
SKU:  DS319MG
Browse CORONA
Corona 4kg / 0.06sec / 32g Metal Gear Digital Servo DS-319MG
Customers rating.
Add To Wish List
Added:2020/10/09
Updated:2020/10/09
Follow Us on:



  Tags: Corona  4kg  0.06sec  32g  Metal  Gear  Digital  Servo  DS-319MG

Specifications:

Corona 4kg / 0.06sec / 32g Metal Gear Digital Servo DS-319MG


Item No DS319MG
Size 32.5x17x34.5mm(1.28"x0.67"x1.36")
Weight 32g
Operating Voltage 4.8V / 6.0V
Operating Current 300mA / 400mA
Operateing speed 0.07sec.60º/ 0.06sec.60º
Stall torque 3.2kg.cm / 4kg.cm
Dead band ≤3uSec
Operating speed 40º/one side pulse traveling 400us
Potentiometer 5 slider/Indirect Drive
Ball bearing MR106
Gear Metal
Connector wire length 300mm
Operating Temperature Range -20 ℃ to +60℃
Includes/Requires:
Includes:

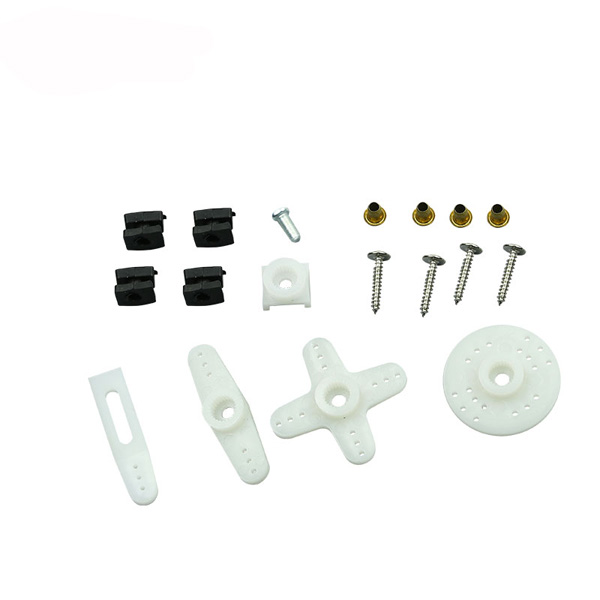

1 x servo with servo horns
