   Radios Servos & Accessories Standard/Middle Size Servos Corona 5.1kg / 0.13sec / 32g Metal Gear High Voltage Digital Servo DS-339HV
SKU:  DS339HV
Browse CORONA
Corona 5.1kg / 0.13sec / 32g Metal Gear High Voltage Digital Servo DS-339HV
Customers rating.
Add To Wish List
Added:2020/10/09
Updated:2020/10/09
Follow Us on:



  Tags: Corona  5.1kg  0.13sec  32g  Metal  Gear  High  Voltage  Digital  Servo  DS-339HV

Specifications:

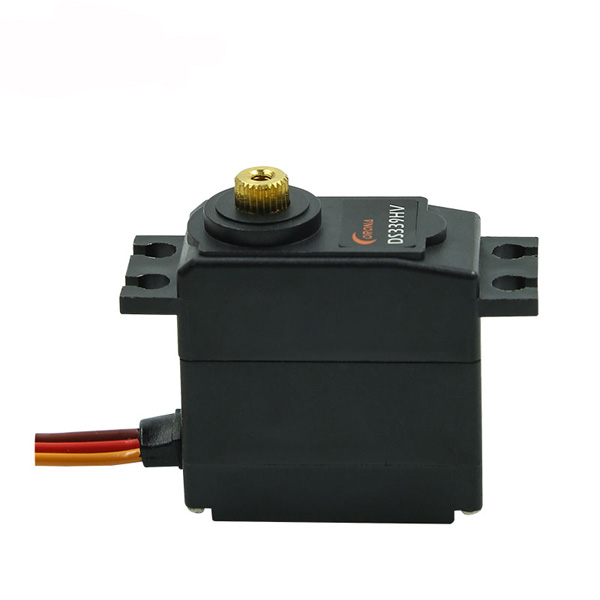

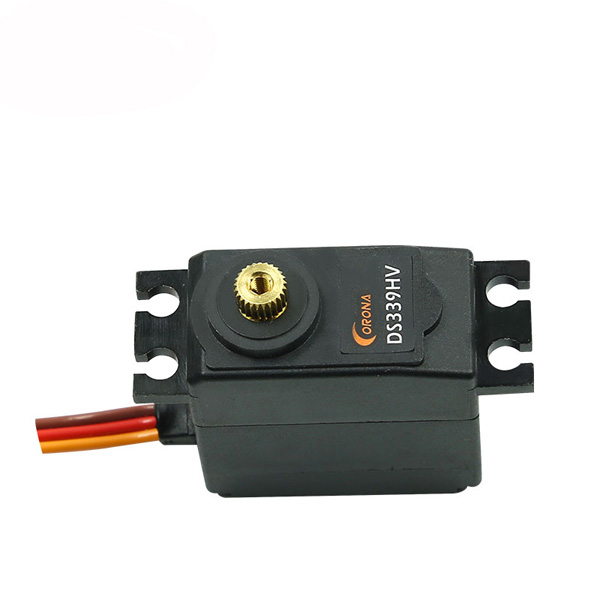

Corona 5.1kg / 0.13sec / 32g Metal Gear High Voltage Digital Servo DS-339HV


Item： DS339HV
Size： 32.5x17x34.5mm(1.28"x0.67"x1.36")
Weight： 32g
Voltage： 6.0V / 7.4V
Current： 320mA / 420mA
Operating speed： 0.14sec.60º/ 0.13sec.60º
Stall Torque： 4.5kg.cm / 5.1kg.cm
Dead Band： ≤3uSec
Operating Travel： 40º/one side pulse traveling 400us
Potentiometer 5 slider/Indirect Drive
Ball bearing MR106
Gear Metal
Connector wire length 300mm
Operating Temperature Range -20 ℃ to +60℃
Includes/Requires:
Includes:

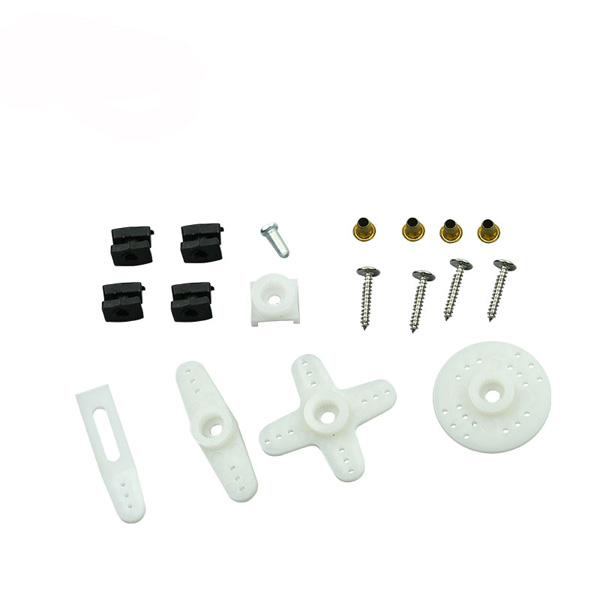

1 x servo with servo horns
