   Radios Servos & Accessories Digital Servo & Accessories GENING 14g/ 2.2kg/ .09 sec High Speed Metal Gear Digital Servo D95MG
SKU:  GN95MG
GENING 14g/ 2.2kg/ .09 sec High Speed Metal Gear Digital Servo D95MG
Customers rating.
Add To Wish List
Added:2011/07/06
Updated:2011/07/06
Follow Us on:


  Tags: digital servo  micro servo  metal gear  GENING

Features:
The D95MG is a high speed and accurate digital servo for 3D airplanes and helicopters, and glider applications. The D95MG Digital Servo provides extremely accurate neutral position. These servos are tailored for 3D fixed wing planes and micro electric helicopters. These digital servos can also find their position in the field of industrial automation which needs accurate and high speed control.
High fidelity MCU and excellent algorithm make it work smoothly and keep high frequency noise minimized.
The D95MG Digital Servo adopts Frequency Conversion Technology which guarantees cool running temps under wild and long time 3D flight! This advanced technology also provides lower power consumption and guarantees the durability of D95MG Digital Servos. The servo has excellent performance as tail servo and can bring you lots of fun in 3D flying.

Features:

High speed and sensitivity
Accurate, centers well
Full AVCS Gyro DS mode compliant
Strong, Stable
Metallic Gears
Fall safe feature (Lost Signal Protection) --- The Digital Servo holds its position and torque during occasional signal lost.
Light weight but perdurable structure will not affect the 3D maneuverability of your plane.
Specifications:
Specs:

Full AVCS Gyro DS mode compliant
Operating Voltage: 4.8-6.0 Volts
Operating Speed (4.8V): 0.10sec/60°
Operating Speed (6.0V): 0.09sec/60°
Stall Torque (4.8V): 2.0kg.cm
Stall Torque (6.0V): 2.2kg.cm
Dead Band Width: ≤3usec
Dimensions: 23.6 x 11.8 x 22mm
Weight: 14g
Bearing Type: Top Ball Bearing
Gear Type: Metal Gears
Motor Type: 3-Pole Neodynium Magnet
Connector Wire Length: 180mm
Current Drain (4.8V): 5.3mA/idle and 140mA no load operating
Current Drain (6.0V): 6.6mA/idle and 150mA no load operating
Includes/Requires:
Includes:

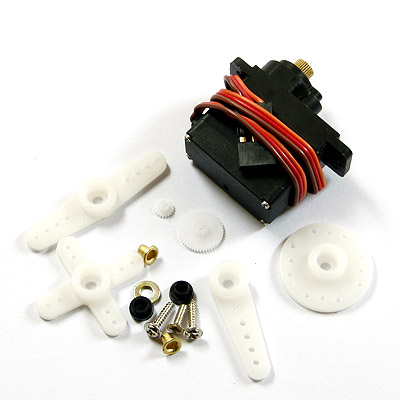

1 x digital servo with servo horns
