Radio Sets, Receivers, Servos, Gyros and Crystals etc.
   Radios Radio Sets 2.4G Radio System Jumper T12 OpenTX 16ch Radio with JP4-in-1 Multi-protocol RF Module
SKU:  JMPT12

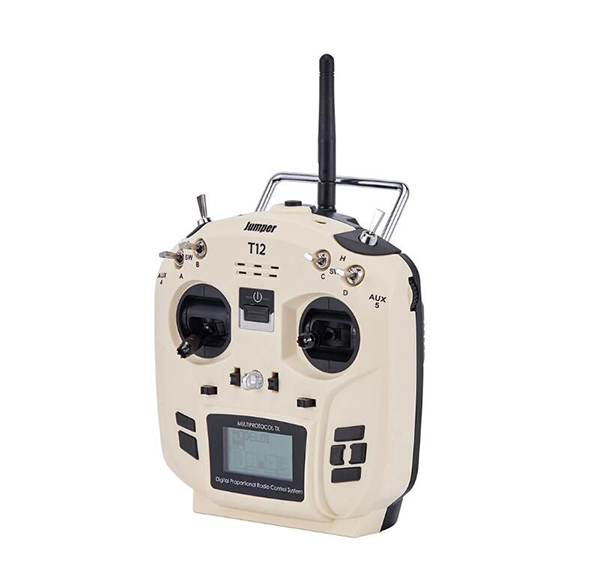

Jumper T12 OpenTX 16ch Radio with JP4-in-1 Multi-protocol RF Module
Customers rating.
Add To Wish List
Added:2018/07/30
Updated:2018/08/23
Follow Us on:


  Tags: Jumper T12 OpenTX 16ch Radio with JP4-in-1 Multi-protocol RF Module

Features:

The Jumper T12 brings the best features of the T8SG v2 series and bundles them together with the well known and highly supported OpenTX software platform. Compatible with JR style RF modules the T12 comes with the JP4-in-1 Multi protocol module as standard.

You asked, we listened.
One of the most asked questions when the T8SG v2 was release was will it work with TBS Crossfire. We are happy to announce the T12 version does indeed support Crossfire and in CRSF mode with LUA script support and most importantly WITHOUT any hardware modification for end users. If your looking for the most compact, most affordable and most EPIC Crossfire compatible TX in the market today look no further than the Jumper T12. Jumper is committed to supporting OPEN hardware module platforms and will never try to force customers on to proprietary equipment.

Keep it simple, keep it affordable.
The T12 platform is shipped with the JP4-in-1 Multi-protocol module. If you already own JR Modules such as the TBS Crossfire or any other JR Module compatible 2.4ghz, Analogue or Long Range UHF system the T12 is ready to rock out with its socket out! A standard LCD screen was used along with the T8SG V2 butter smooth V2 gimbals offering quality, usability and best of all affordability.els

The Jumper T12 brings the best features of the T8SG v2 series and bundles them together with the well known and highly supported OpenTX software platform. Compatible with JR style RF modules the T12 comes with the JP4-in-1 Multi protocol module as standard.

You asked, we listened.
One of the most asked questions when the T8SG v2 was release was will it work with TBS Crossfire. We are happy to announce the T12 version does indeed support Crossfire and in CRSF mode with LUA script support and most importantly WITHOUT any hardware modification for end users. If your looking for the most compact, most affordable and most EPIC Crossfire compatible TX in the market today look no further than the Jumper T12. Jumper is committed to supporting OPEN hardware module platforms and will never try to force customers on to proprietary equipment.
yma, ASSAN and most other Chinese models

Keep it simple, keep it affordable.
The T12 platform is shipped with the JP4-in-1 Multi-protocol module. If you already own JR Modules such as the TBS Crossfire or any other JR Module compatible 2.4ghz, Analogue or Long Range UHF system the T12 is ready to rock out with its socket out! A standard LCD screen was used along with the T8SG V2 butter smooth V2 gimbals offering quality, usability and best of all affordability.

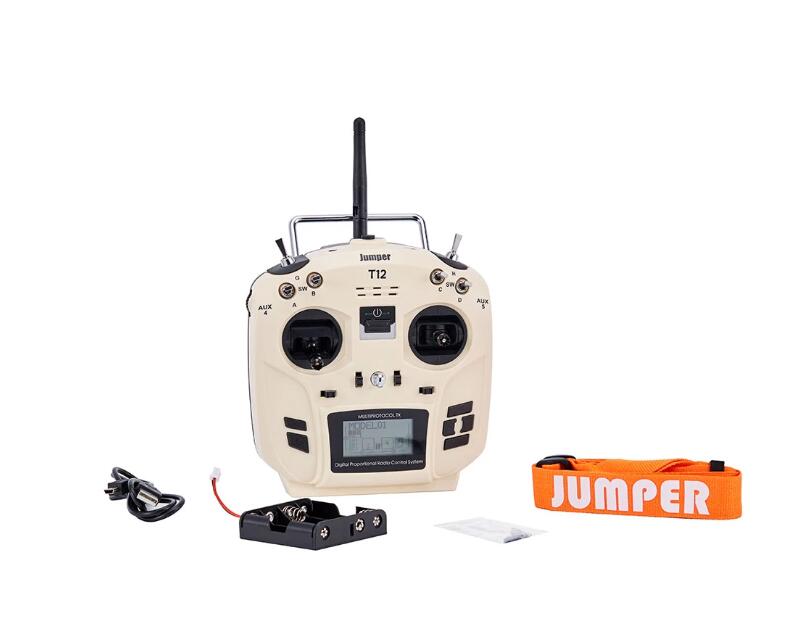

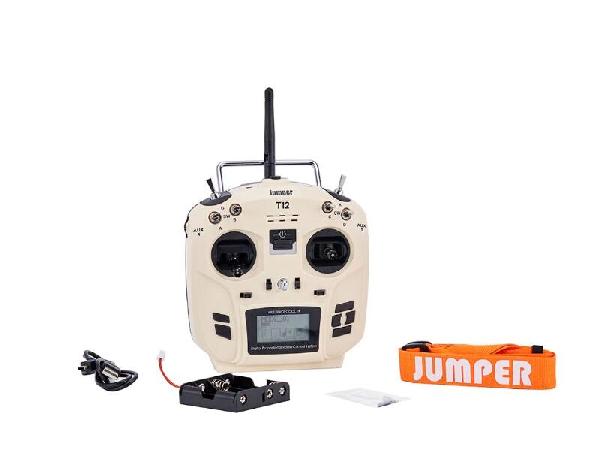

Goodies included
The T12 comes standard with a neck strap and AA battery tray. The T12 can also be powered with any LiPO or LiFE battery of a compatible size meaning users do not need to source their own uncommon sized Li-ion round cells or a round cell charger.

Seamless Intergration
The T12, when paired with the Jumper JP4-in-1 offers seamless intergration between the OpenTX software and module meaning protocals can be accessed and selected directly from the software GUI. Crossfire users can setup their equipment via the OpenTX LUA scripts.

Radio Features:
Open source multi-protocol firmware, Based on OpenTX
JR/FrSKY compatible module bay on rear side (module not included)
USB online firmware upgrade
Ultra-low power consumption, longer battery life
Channels: up to 16 channel output
Open Source Firmware, all channels are fully programmable
Wide voltage input (2s lipo recommended)
Multilingual menu
Vibration reminder function
Support telemetry (depending on the receiver)
Crossfire CSRF Compatible: Yes
LUA Script support: Yes

Specifications:

Jumper T12 OpenTX 16ch Radio with JP4-in-1 Multi-protocol RF Module


Radio Specs:
Radio MCU: STM32F205VET6 (512kb)
Size: 158 * 150 * 58
Weight: 342g (without battery)
Working voltage: DC5-DC9V (factory with 4 * AA battery box, 2s Lipo recommended, batteries not included)
Firmware: OpenTX
Channels: up to 16 channel output
Display: 1.7-inch LCD display, 128* 64 resolution
Gimbal Type: Potentiometer
JR/FrSKY compatible module bay on rear side
Upgrade method: USB online upgrade
Simulator mode: 3.5mm standard ppm output or USB HID
Voice support: YES

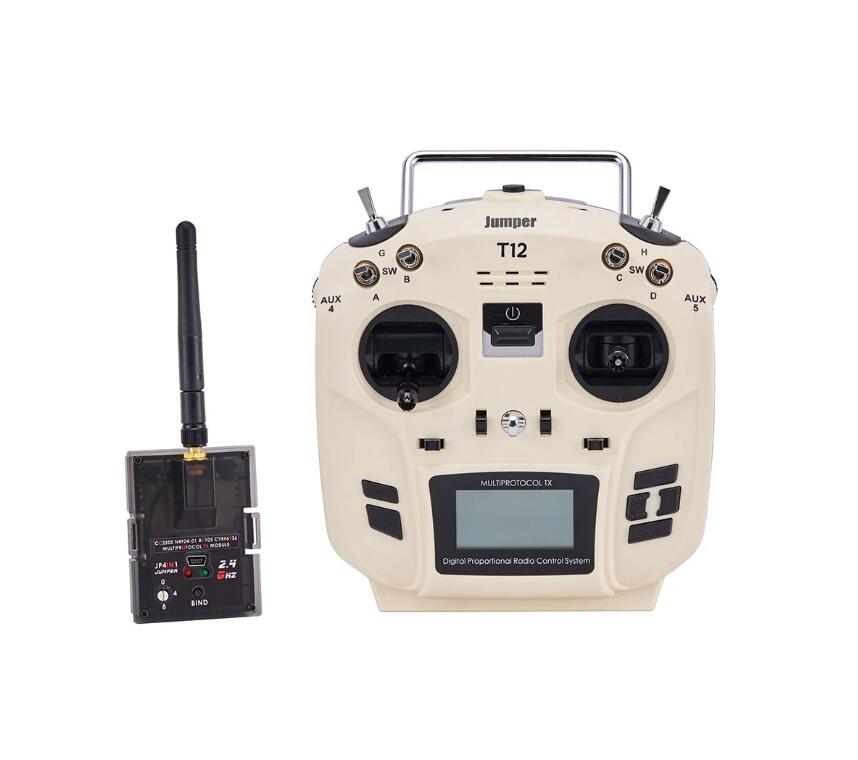

Jumper JP4-in-1 Module
The Jumper JP4IN1 Module features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module can convert standard PPM signals form module equipped radios in to the RF protocols used by most radios in the market today (See RF Chip data below). This module is plug and play with module equipped radios in the FrSKY series and requires no complex wiring or “hacking” to get running. The module is a great way to improve the enjoyment of your flying experience, using a better radio such as the FrSKY Taranis series rather than the low grade radios commonly included with most kits offers an night and day difference in performance. The Jumper JP4IN1 module is also upgradable via USB input


JP4-in-1 Specifications:
Working voltage: 6-9v
Working current: <=100ma
Operating frequency: 2.4G ISM band
RF power: +22DBM
Main control chip: STM32F103CBT6 (128K ROM, 20K RAM)
Module bay compatibility: FRSky, Jr and other dimensions: 64*49*33 (without antenna)
Net Weight: 42g (including antenna)
Software Compatibility: Suitable for radios using OpenTX or er9x/ersky9x
Firmware updatable: Yes, via USB.


RF Chip Data
Cypress Semiconductor CYRF6936: DSM/DSMX, Walkera Devo
Texas Instruments CC2500: FrSky, Futaba SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models



Includes/Requires:
Includes:
1 x Jumper T12 OpenTX 16ch Radio with JP4-in-1 Multi-protocol RF Module
