   Radios Servos & Accessories Standard/Middle Size Servos PowerHD 63g/17kg/ .14sec High Torque Metal Gear Servo HD-1501MG
SKU:  HD1501MG
Browse Power HD
PowerHD 63g/17kg/ .14sec High Torque Metal Gear Servo HD-1501MG
Customers rating.
Add To Wish List
Added:2010/12/09
Updated:2020/10/28
Follow Us on:



  Tags: PowerHD  63g  17kg  .14sec  High  Torque  Metal  Gear  Servo  HD-1501MG

Specifications:
Analog Servo—HD-1501MG
Torque(4.8V): 15.5 kg-cm (215.3 oz/in)
Torque(6.0V): 17.0 kg-cm (236.1 oz/in)
Speed: 0.16 sec (4.8V) │ 0.14 sec (6.0V)
Operating Voltage：4.8 ~ 6.0 DC Volts
Weight: 63.0 g (2.22 oz)
Bearing Type：Ball Bearing x 2
Motor Type：DC Motor
Gear Type：Copper
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 50hz
Size：40.7 x 20.5 x 39.5 mm ( 1.60 x 0.81 x 1.56 in)
Includes/Requires:
Includes:
1 x servo

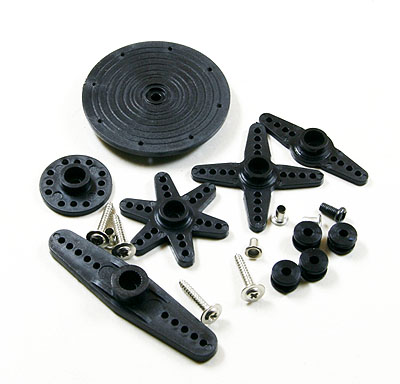

1 x servo horn set
