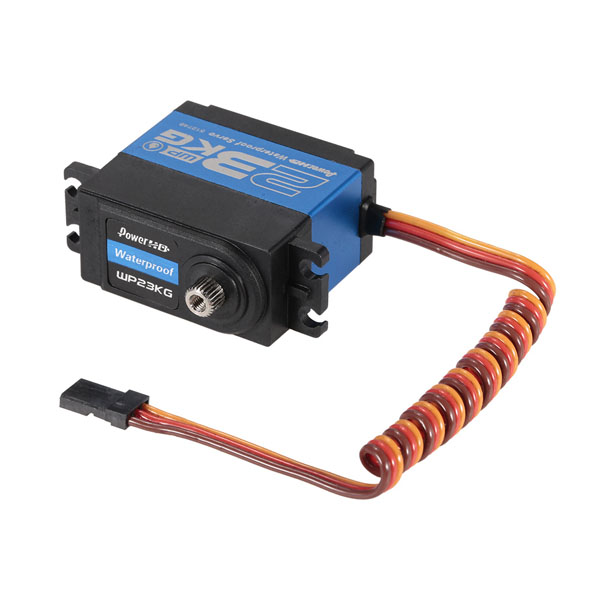

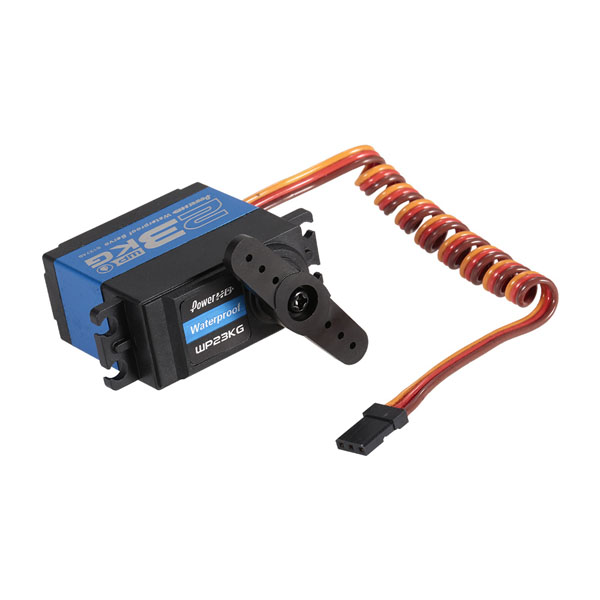

PowerHD 75g/23kg/ .12sec High Strength Steel Gear Waterproofing Digital Servo WP-23KG
Customers rating.
Add To Wish List
Added:2018/07/09
Updated:2018/07/09
Follow Us on:


  Tags: PowerHD 75g/23kg/ .12sec High Strength Steel Gear Waterproofing Digital Servo WP-23KG

Features:
Power HD WP-23KG is used to upgrade the replacement 1025, savox1256, double upgrade powerhd LF20MG and other servos!
Higher speed! More torque! Double high strength, double durability, and high value/price radio!
The life of imported steel teeth is much higher than various titanium-plated aluminum (titanium alloy), electroplated aluminum, aluminum alloy gears, etc.!
High precision seal is fully waterproof! It can meet the needs of car wash and short dive!
Output tooth 25T
Specifications:

PowerHD 75g/23kg/ .12sec High Strength Steel Gear Waterproofing Digital Servo WP-23KG


Torque(4.8V): 18.0 kg-cm (250.0 oz/in)
Torque(6.6V): 23.0 kg-cm (319.4 oz/in)
Speed: 0.14 sec (4.8V) │ 0.12 sec (6.6V)
Operating Voltage:4.8 ~ 6.6 DC Volts
Weight: 75 g (2.65 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Coreless Motor
Gear Type:Titanium & Steel
Operating Temperature:-20℃~60℃
Working frequence:1520μs / 333hz
Size:40.7 x 20.5 x 38.5 mm ( 1.60 x 0.80 x 1.49 in)

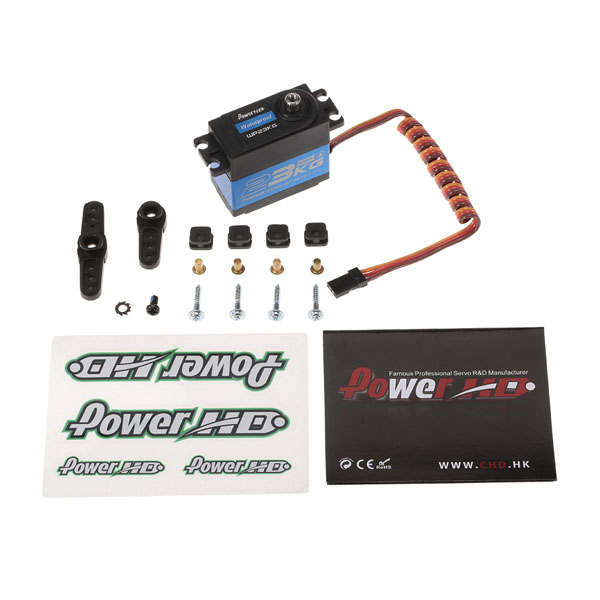

Includes/Requires:
Includes:
1 x servo
