SKU:  SERFXQ

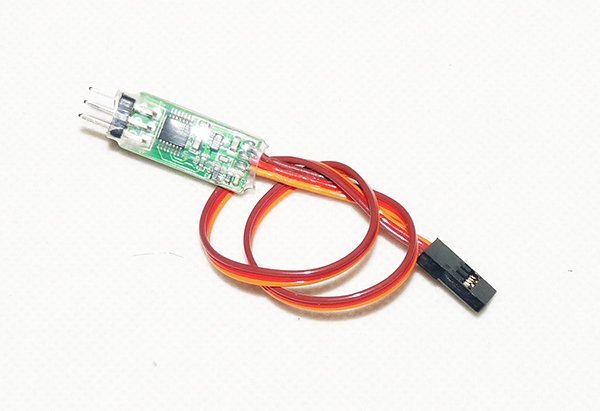

Servo Direction Reverse Module
Customers rating.
Add To Wish List
Added:2016/03/23
Updated:2018/02/26
Follow Us on:


  Tags: Servo Direction Reverse Module

Specifications:

Servo Direction Reverse Module



Weight:  4g
Dimension: 35 x 11 x 6mm



Wiring diagram:

Pin mapping:  S for signal,  + for power (positive), - for Ground
CH1: servo direction reversed
CH2: normal direction
Includes/Requires:
Includes:
1 x servo direction reversing module
