   Radios Servos & Accessories Mini / Micro Servos TowerPro 14g/ 2.8kg / .09 sec Metal Gear Micro Servo MG90
SKU:  TPMG90
Browse TowerPro

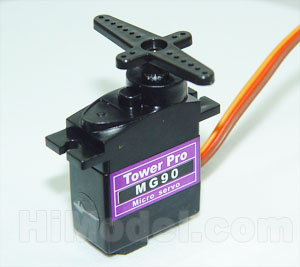

TowerPro 14g/ 2.8kg / .09 sec Metal Gear Micro Servo MG90
Customers rating.
Add To Wish List
Bookmark and Share
Added:2009/05/07
Updated:2010/11/16
Follow Us on:

4T6P36604992

PRICE(USD):
    $8.01   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: micro servo  towerpro  metal gear

Features:


Specifications:
*Dimensions: 23 x 12.2 x 29mm
*Weight: 14g
*Operating Speed : 0.11sec/60 degrees (4.8V no load); 0.09sec/60 degrees (6.0V no load)
*Stall Torque : 2.4kg-cm / 33.3oz-in(4.8V); 2.8 kg / 38.86oz-in (6.0V)
*Temperature Range: 0 to +55 Degree C
*Dead Band Width: 5usec
Operating Voltage:4.8-6 Volts

Application: 450 class electric helicopters and small airplanes.
Includes/Requires:
Includes:
1 x servo
1 x servo horn set

Customer Reviews:
Average Customer Review: 4.5 stars   9 customer review(s).   [Write a review/question]

Eva _ D
Grade:
My company bought servomotor MG90S 1000pcs from http://www.towerpro.com.tw/product/mg90s-3/ John Lu, customerservice.towerpro@gmail.com. Firstly the seller was nice and open. After I contacted him to claim for bad quality (not smoothly, with interrupts ) he suggested to wait for 10 minutes for smoother operation. It did not work. Then he simply ignored all my emails. We do not recommend this seller.
December 19 2016     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


i**** djuwanto
Grade:
this servo not as good as gws servo

June 10 2014     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


r****x
Grade:
This is an analog servo
February 10 2014     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


J****067
Grade:
These are pretty good for 450 class helicopters, the S models are horrible. Be sure to leave room around the frame opening where the servos mount to reduce vibration. If it's too tight vibration will cause wires in servo to break and you loose control of chopper. The S versions are very bad about going bad due to this problem.
March 16 2012     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


J****ee2
Grade:
My servos arrived very well packed. They were tried out on a servo tested @ 4.8V. All 3 operated quietly, returned to mid position accurately and without overshoot. They are quite fast and powerful. There is very little play in the gear-train. Only time will tell how reliable they are, but I am quite impressed.
March 02 2012     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


l****matildo
Grade:
is this an analog or digital type of servo???
August 01 2010     Was this review helpful to you?   Yes [ 1 ]   No [ 0 ]    [Reply this review]


l****matildo
Grade:
is this an analog or digital type of servo???
August 01 2010     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]


s****iseocs
Grade:
yes its real i tested
June 05 2010     Was this review helpful to you?   Yes [ 1 ]   No [ 0 ]    [Reply this review]


p****erist
Grade:
Are the parameters(speed and torque) of this servo real?
Anyone tested?
January 13 2010     Was this review helpful to you?   Yes [ 1 ]   No [ 0 ]    [Reply this review]
