Radio Sets, Receivers, Servos, Gyros and Crystals etc.
   Radios Servos & Accessories Digital Servo & Accessories XQ-Power 73g/ 15kg/ .1 sec Aluminum Case Titanium Gear Digital Servo S4315D
SKU:  S4315D
Browse XQ-POWER

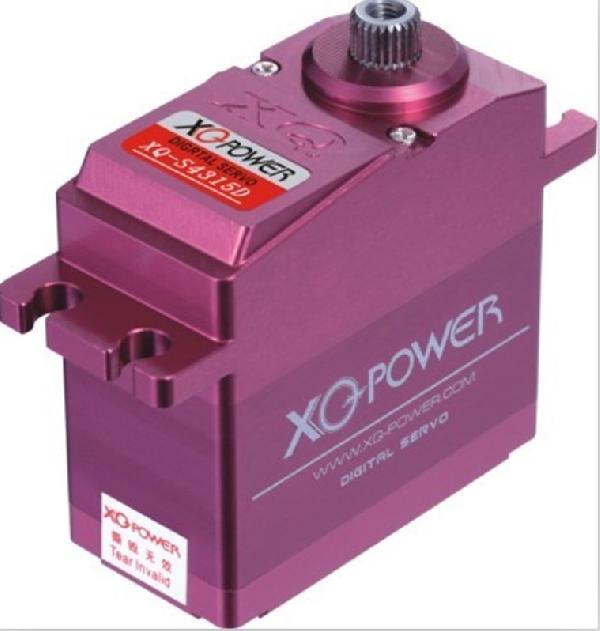

XQ-Power 73g/ 15kg/ .1 sec Aluminum Case Titanium Gear Digital Servo S4315D
Customers rating.
Add To Wish List
Added:2013/06/24
Updated:2013/06/24
Follow Us on:


  Tags: digital servo  metal gear  Titanium gear servo

Features:

Titanium Gear;

Aluminum case, resist heat and corrosion; easy to eliminate heat;

Adopt high quality coreless motor
Specifications:

Digital Servo S4315D

Dead band:                                             2μs

Control System:                                    PWM
Operating Temperature Range:         -15-60℃
360° Modifiable:                                 NO
Motor Type:                                           Coreless Motor
Bearing Type:                                       Dual Ball Bearings
Gear Type:                                            Titanium Gears
Overload Protection:                          YES



Products specification

Technical parameters

4.8V

6.0V

Size (mm)

Weight

Speed

Torque

Speed

Torque

A

B

C

D

E

g

oz

sec/60°

kg·cm

oz·in

sec/60°

kg·cm

oz·in

40

20

39

48

10

73

2.58

0.12

13

180.5

0.1

15

208.3

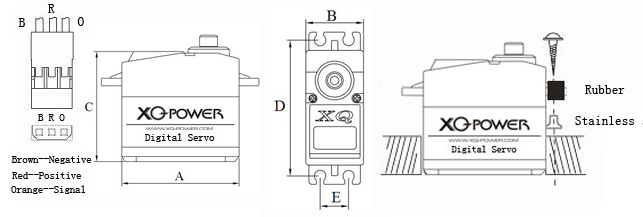

Assembly Drawing

Includes/Requires:
Includes:
1 x digital servo with servo horns
