DJI full line products including drones, imaging products & enterprise products.
   DJI DJI Imaging Solutions DJI Digital FPV Goggles Fly More Combo (Mode 2)
   FPV/ Aerial Photography Video Glasses/ Monitors
SKU:  DJI-FPV06
Browse DJI
DJI Digital FPV Goggles Fly More Combo (Mode 2)
Customers rating.
Add To Wish List
Added:2019/10/05
Updated:2019/10/05
Follow Us on:



  Tags: DJI  Digital  FPV  Goggles  Fly  More  Combo  Mode  2

Features:
Specifications:

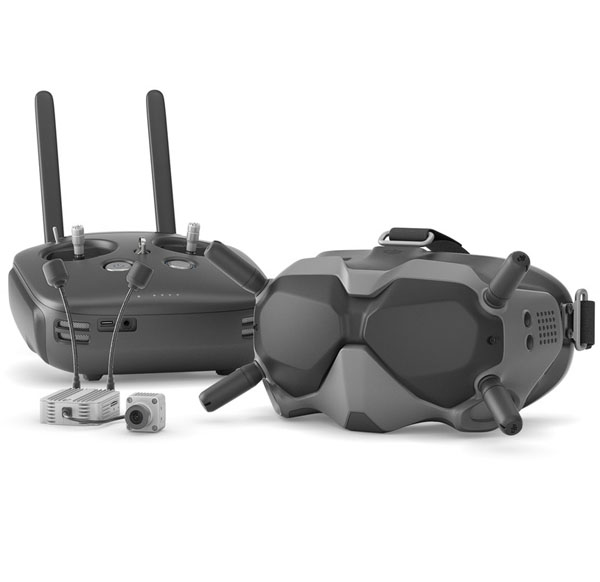

DJI Digital FPV Goggles Fly More Combo (Mode 2)



DJI FPV AIR UNIT

WeightApprox. 210 g (headband and antennas included)
Dimensions202×126×110 mm (antennas included),
184×122×110 mm (antennas excluded)
Screen Size2-inch × 2
Screen Resolution (Single Screen)1440 × 810
Screen Renew Rate120 Hz
Communication Frequency5.725-5.850 GHz
Transmitter Power (EIRP)FCC: <30 dBm; CE: <14 dBm; SRRC: <19 dBm
Live View ModeLow Latency Mode (720p/120fps)
High-Quality Mode (720p/60fps)
Video FormatMP4 (Video format: H.264)
Supported Video Play FormatMP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature32° to 104° F (0° to 40° C)
Power Input7.4-17.6 V
FOVAdjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillary Distance Range58 -70 mm
Supported Storage CardmicroSD cards with storage capacities of up to 128GB.

DJI FPV CAMERA

Sensor1/3.2'' CMOS; Effective Pixels: 4 M
Lens2.1 mm, f/2.1
ShutterRolling shutter
ISO100-25600
FOV150°(D); 122°(H); 93°(V)
Dimension22.1×21.1×20.1 mm
Weight8.2 g

DJI FPV GOGGLES



Weight



Air Unit (Camera included): 45.8 g
3.9 g (each MMCX elbow)
DimensionsAir Unit: 44×37.8×14.4 mm
Camera: 27.4×21.1×20.1 mm
Coaxial Cable: 100 mm
Operating Frequency5.725-5.850 GHz
Transmitter Power (EIRP)Low Latency Mode (720p/120fps): <28 ms;
CE: <14 dBm
Min. Latency (end-to-end)Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission DistanceFCC/SRRC: <4 km; CE: <0.7 km
Video FormatMP4 (Video format: H.264; Audio format: ACC-LC)
I/O InterfaceUSB-C, MMCX, 3-in-1 port, microSD card slot
Supported Flight Control SystemThe DJI FPV Air Unit is only compatible with flight controllers that support Betaflight
Operating Temperature Range32° to 104°F (0° to 40°C)
Input Power7.4-17.6 V, about 4-9 W
Channels8
Channels infoFCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839

CE/SRRC
Channel 1: 5735
Channel 2: 5770
Channel 3: 5805
Channel 8: 5839

MIC
Channel 1: 5660
Channel 2: 5700
Channel 8: 5745




Includes/Requires:

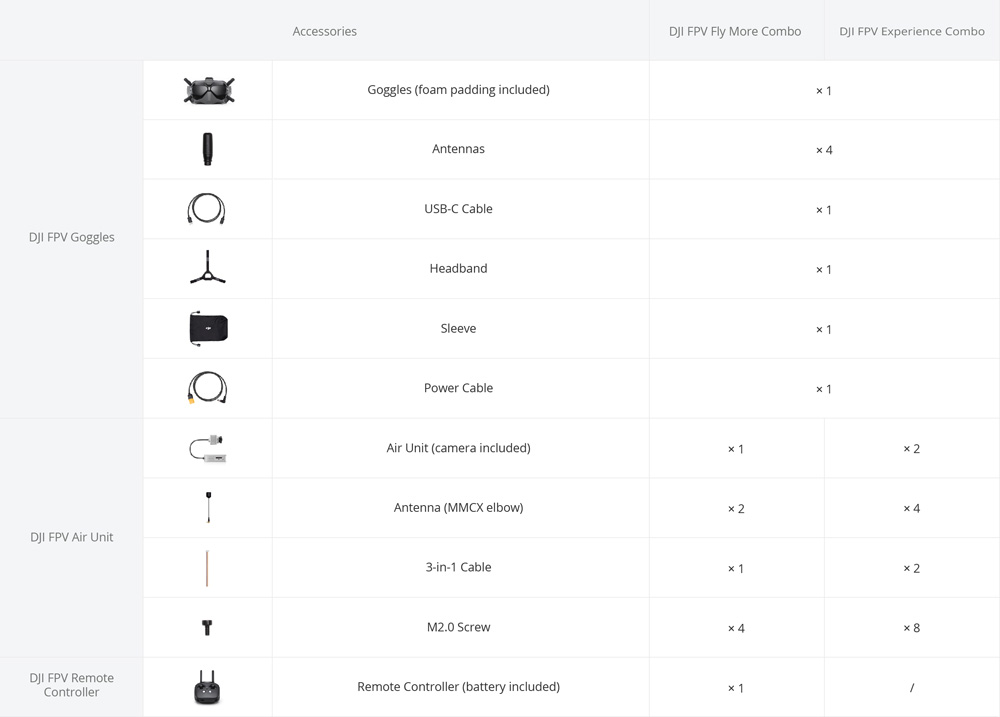

Includes:






* This is the Fly More Combo.
