DJI Phantom 4 Advanced+ Quadcopter Drone W/ 5.5" Screen
Customers rating.
Add To Wish List
Added:2017/04/24
Updated:2017/04/24
Follow Us on:



  Tags: DJI Phantom 4 Advanced+ Quadcopter Drone advanced plus

Features:

Specifications:

DJI Phantom 4 Advanced+ Quadcopter Drone W/ 5.5" Screen

AIRCRAFT

Weight (Battery & Propellers Included)1368 g
Diagonal Size (Propellers Excluded)350 mm
Max Ascent SpeedS-mode: 6 m/s
P-mode:5 m/s
Max Descent SpeedS-mode:4 m/s
P-mode:3 m/s
Max SpeedS-mode: 45 mph (72 kph)
A-mode: 36 mph (58 kph)
P-mode: 31 mph (50 kph)
Max Tilt AngleS-mode:42°
A-mode:35°
P-mode:25°
Max Angular SpeedS-mode: 250°/s
A-mode: 150°/s
Max Service Ceiling Above Sea Level19685 feet (6000 m)
Max Wind Speed Resistance10 m/s
Max Flight TimeApprox. 30 minutes
Operating Temperature Range32° to 104°F (0° to 40°C)
Satellite Positioning SystemsGPS/GLONASS
Hover Accuracy RangeVertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GPS Positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GPS Positioning)

VISION SYSTEM

Vision SystemForward Vision System
Downward Vision System
Velocity Range≤31 mph (50 kph) at 6.6 ft (2 m) above ground
Altitude Range0 - 33 feet (0 - 10 m)
Operating Range0 - 33 feet (0 - 10 m)
Obstacle Sensory Range2 - 98 feet (0.7 - 30 m)
FOVForward: 60°(Horizontal), ±27°(Vertical)
Downward: 70°(Front and Rear), 50°(Left and Right)
Measuring FrequencyForward: 10 Hz
Downward: 20 Hz
Operating EnvironmentSurface with clear pattern and adequate lighting (lux>15)

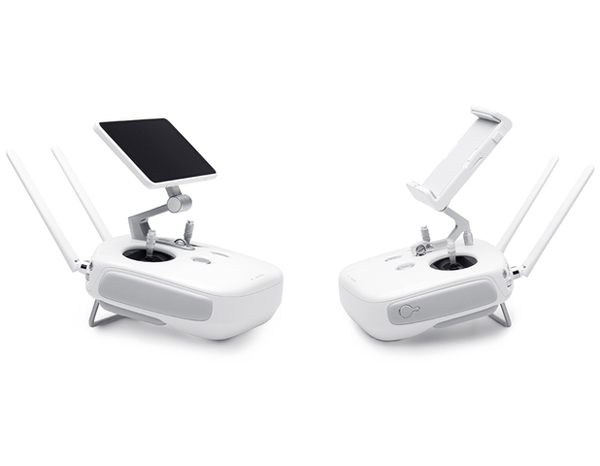

REMOTE CONTROLLER

Operating Frequency2.400 - 2.483 GHz
Max Transmission Distance2.400 - 2.483 GHz (Unobstructed, free of interference)
FCC: 4.3 mi (7 km)
CE: 2.2 mi (3.5 km)
SRRC: 2.5 mi (4 km)
Operating Temperature Range32° to 104°F (0° to 40°C)
Battery6000 mAh LiPo 2S
Transmitter Power (EIRP)2.400 - 2.483 GHz
FCC: 26 dBm
CE: 17 dBm
SRRC: 20 dBm
Operating Current/Voltage1.2 A@7.4 V
Video Output PortGL300E: HDMI
GL300C: USB
Mobile Device HolderGL300E: Built-in display device (5.5 inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM＋16 GB ROM)
GL300C: Tablets and smart phones

INTELLIGENT FLIGHT BATTERY

Capacity5870 mAh
Voltage15.2 V
Battery TypeLiPo 4S
Energy89.2 Wh
Net Weight468 g
Charging Temperature Range41° to 104°F (5° to 40°C)
Max Charging Power100 W

GIMBAL

Stabilization3-axis (pitch, roll, yaw)
Controllable RangePitch: -90° to +30°
Max Controllable Angular SpeedPitch: 90°/s
Angular Control Accuracy±0.02°

CAMERA

Sensor1’’ CMOS
Effective pixels: 20M
LensFOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8 - f/11 auto focus at 1 m - ∞
ISO RangeVideo:
100 - 3200 (Auto)
100 - 6400 (Manual)
Photo:
100 - 3200 (Auto)
100- 12800 (Manual)
Mechanical Shutter Speed8 - 1/2000 s
Electronic Shutter Speed8 - 1/8000 s
Image Size3:2 Aspect Ratio: 5472 × 3648
4:3 Aspect Ratio: 4864 × 3648
16:9 Aspect Ratio: 5472 × 3078
PIV Image Size4096×2160(4096×2160 24/25/30/48/50p)
3840×2160(3840×2160 24/25/30/48/50/60p)
2720×1530(2720×1530 24/25/30/48/50/60p)
1920×1080(1920×1080 24/25/30/48/50/60/120p)
1280×720(1280×720 24/25/30/48/50/60/120p)
Still Photography ModesSingle Shot
Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/20/30/60 s
Video Recording ModesH.265
C4K:4096×2160 24/25/30p @100Mbps
4K:3840×2160 24/25/30p @100Mbps
2.7K:2720×1530 24/25/30p @65Mbps
2.7K:2720×1530 48/50/60p @80Mbps
FHD:1920×1080 24/25/30p @50Mbps
FHD:1920×1080 48/50/60p @65Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @25Mbps
HD:1280×720 48/50/60p @35Mbps
HD:1280×720 120p @60Mbps

H.264
C4K:4096×2160 24/25/30/48/50/60p @100Mbps
4K:3840×2160 24/25/30/48/50/60p @100Mbps
2.7K:2720×1530 24/25/30p @80Mbps
2.7K:2720×1530 48/50/60p @100Mbps
FHD:1920×1080 24/25/30p @60Mbps
FHD:1920×1080 48/50/60 @80Mbps
FHD:1920×1080 120p @100Mbps
HD:1280×720 24/25/30p @30Mbps
HD:1280×720 48/50/60p @45Mbps
HD:1280×720 120p @80Mbps
Max Video Bitrate100 Mbps
Supported File SystemsFAT32 (≤32 GB); exFAT (>32 GB)
PhotoJPEG, DNG (RAW), JPEG + DNG
VideoMP4/MOV (AVC/H.264; HEVC/H.265)
Supported SD CardsMicro SD
Max Capacity: 128GB
Write speed ≥15MB/s, Class 10 or UHS-1 rating required
Operating Temperature Range32° to 104°F (0° to 40°C)

CHARGER

Voltage17.5V
Rated Power100 W

APP / LIVE VIEW

Mobile AppDJI GO 4
Live View Working Frequency2.4 GHz ISM
Live View Quality720P @ 30fps
LatencyPhantom 4 Advanced: 220 ms (depending on conditions and mobile device)
Phantom 4 Advanced +：160 - 180 ms
Required Operating SystemsiOS 9.0 or later
Android 4.4.0 or later
Recommended DevicesiOS:iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular.
This app is optimized for iPhone 7, iPhone 7 Plus.
Android:Samsung S7 edge, Samsung S7, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Samsung tabs 705c, Ascend Mate 9, Ascend Mate 7, Huawei Honor 8, Huawei P8 Max, Vivo X7, Xiaomi 5, MI 3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, LG V20, Sony Xperia Z3, Smartisan T1.
*Support for additional devices available as testing and development continues.
