Features:
















Specifications:

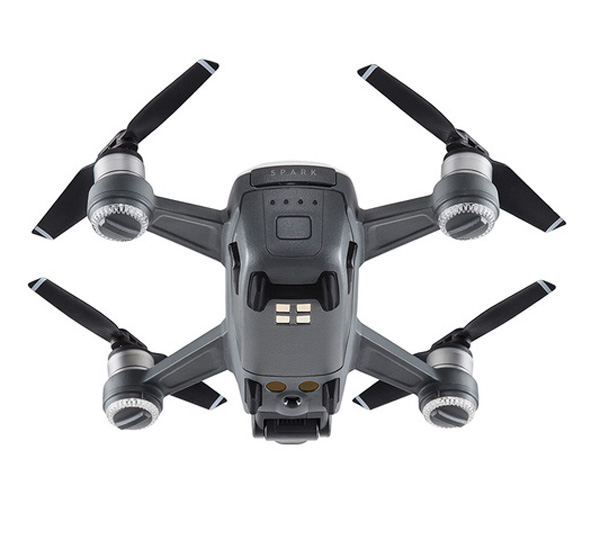

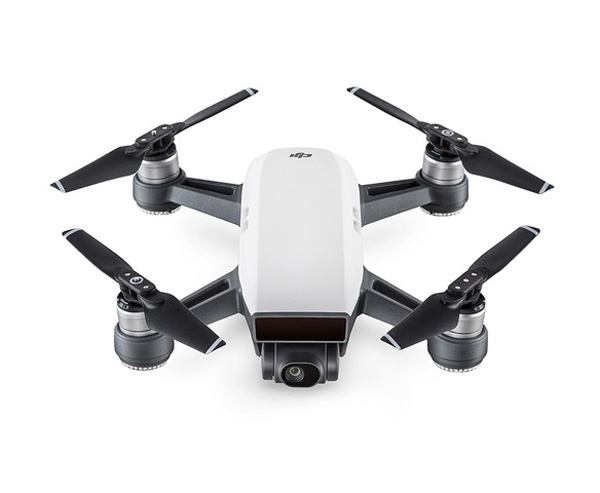

DJI Spark Mini Drone Portable Quadcopter - FLY MORE COMBO

AIRCRAFT

Takeoff Weight300 g
Dimensions143×143×55 mm
Diagonal Distance (propellers excluded)170 mm
Max Ascent Speed9.8 ft/s (3 m/s) in Sport Mode without wind
Max Descent Speed9.8 ft/s (3 m/s) in Auto Landing Mode
Max Speed31 mph (50 kph) in Sport Mode without wind
Max Service Ceiling Above Sea Level13,123 feet (4,000 m)

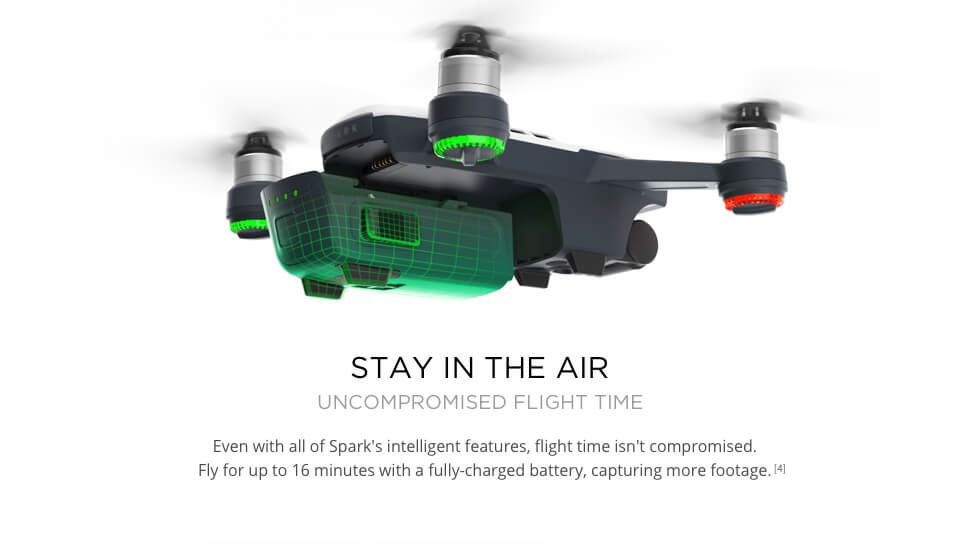

Max Flight Time16 minutes (no wind at a consistent 12.4 mph (20 kph))
Max Hovering Time15 minutes (no wind)
Operating Temperature Range32° to 104° F (0° to 40° C)
Satellite Positioning SystemsGPS/GLONASS
Hover Accuracy RangeVertical:
+/- 0.1 m (when Vision Positioning is active) or +/-0.5 m
Horizontal:
+/- 0.3 m (when Vision Positioning is active) or +/-1.5 m
Transmitter Power (EIRP)2.4 GHz
FCC: 25 dBm; CE: 18 dBm; SRRC: 18 dBm
5.8 GHz
FCC: 27 dBm; CE: 14 dBm; SRRC: 27 dBm
Operating Frequency2.400 - 2.483 GHz; 5.725 - 5.825 GHz

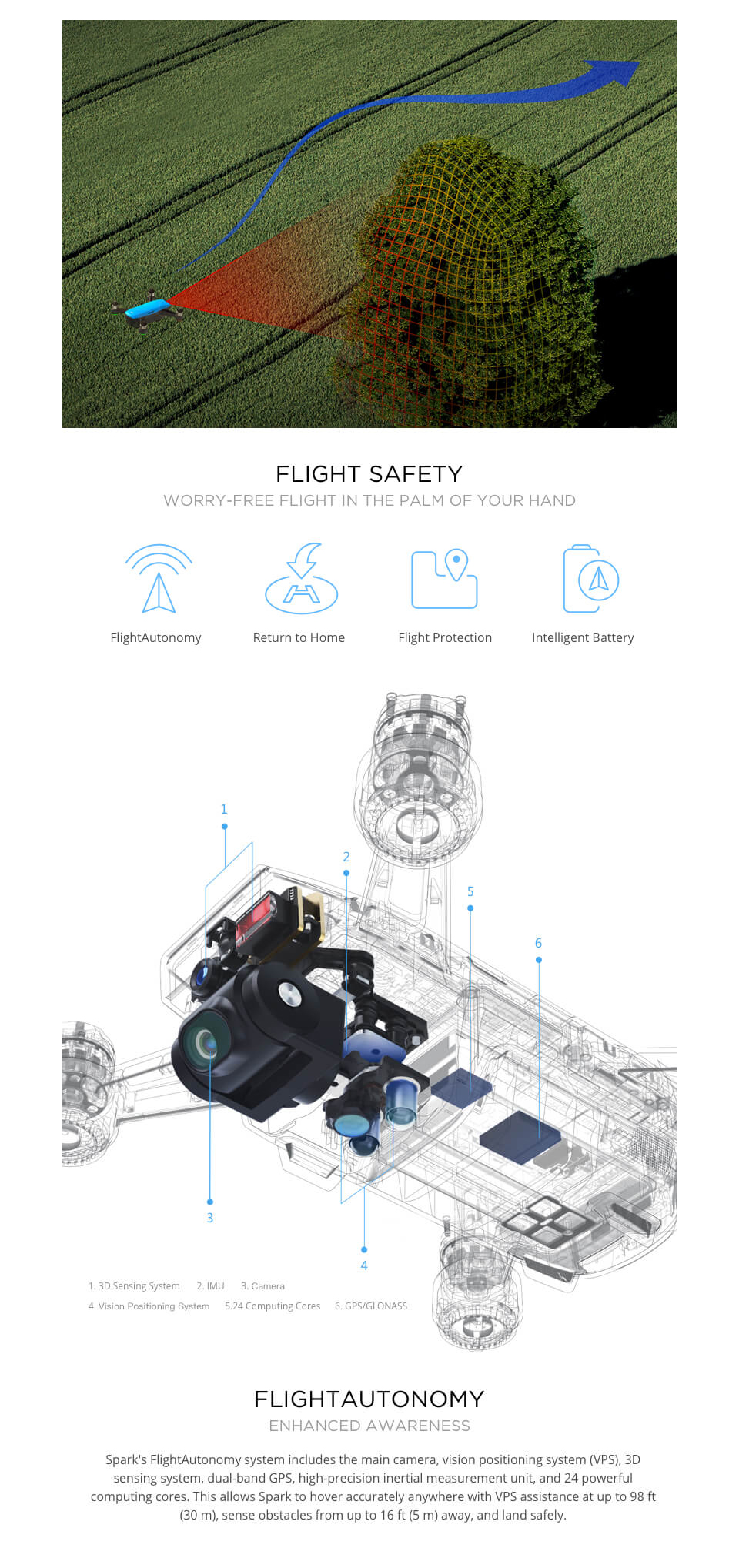

3D SENSING SYSTEM

Obstacle Sensing Range1-16 ft (0.2 - 5 m)
Operating EnvironmentDetects diffuse reflective surfaces (>20%) larger than 20x20 cm (walls, trees, people, etc.)

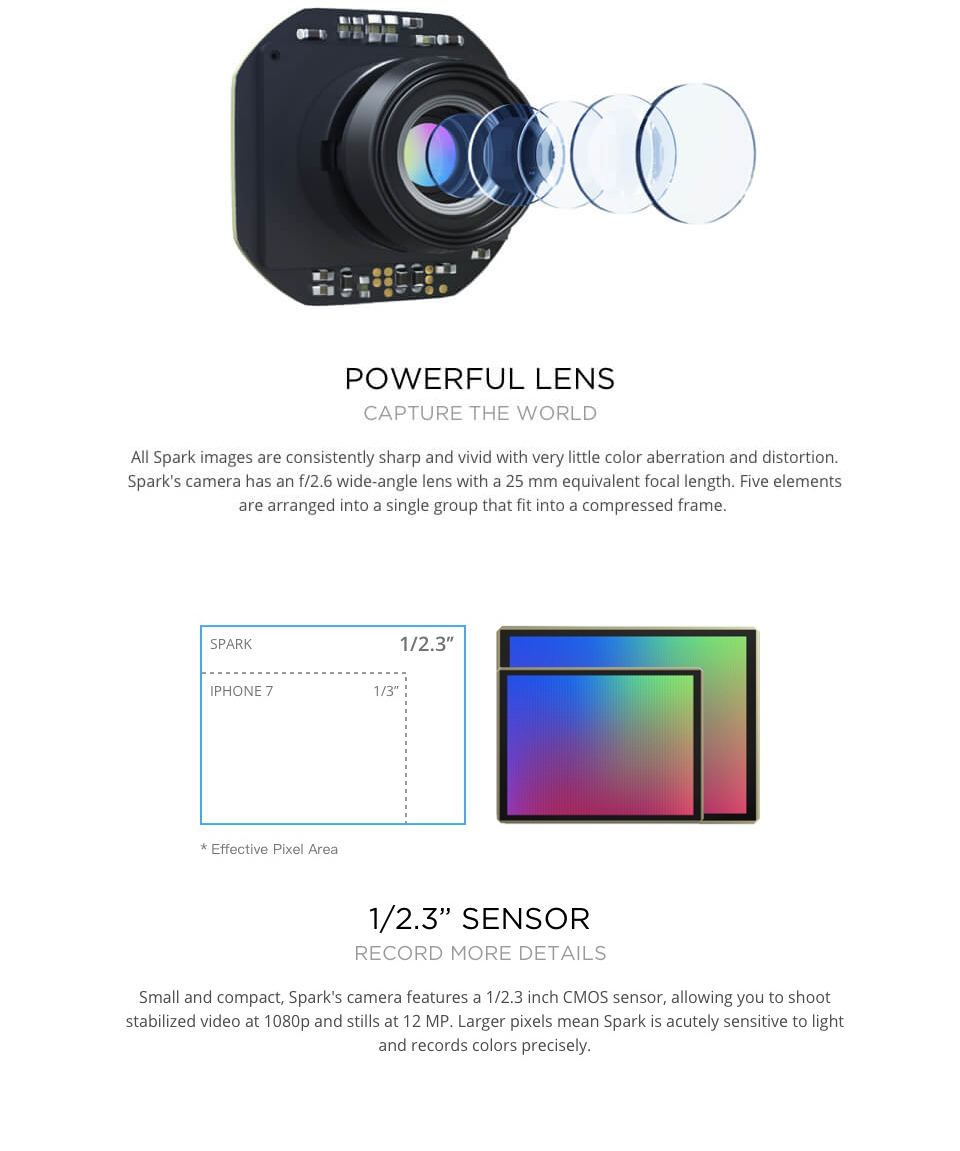

CAMERA

Sensor1/2.3" CMOS
Effective pixels: 12 MP
LensFOV 81.9° 25 mm (35 mm format equivalent) f/2.6
(shooting range: 2 m to ∞)
ISO RangeVideo: 100-3200
Photo: 100-1600
Electronic Shutter Speed2-1/8000 s
Image Size3968×2976
Still Photography ModesSingle Shot
Burst Shooting: 3 frames
Auto Exposure Bracketing (AEB): 3 bracketed frames at 0.7 EV bias
Interval: 2/3/5/7/10/15/20/30/60 s
Video ResolutionFHD: 1920×1080 30p
Max Video Bitrate24 Mbps
Supported File SystemsFAT32
Photo FormatJPEG
Video FormatMP4 (MPEG-4 AVC/H.264)

REMOTE CONTROLLER

Operating Frequency2.412-2.462 GHz; 5.745-5.825 GHz
Max Transmission Distance2.412 - 2.462 GHz (unobstructed, free of interference)
FCC: 1.2 mi (2 km); CE: 0.3 mi (500 m); SRRC: 0.3 mi (500 m)
5.745 - 5.825 GHz (unobstructed, free of interference)
FCC: 1.2 mi (2 km); CE: 0.18 mi (300 m); SRRC: 0.7 mi (1.2 km)
Operating Temperature Range32° to 104° F (0° to 40° C)
Battery2970 mAh
Transmitter Power (EIRP)2.4 GHz
FCC: ≤26 dBm; CE: ≤18 dBm; SRCC: ≤18 dBm
5.8 GHz
FCC: ≤28 dBm; CE: ≤14 dBm; SRCC: ≤26 dBm
Operating Current/Voltage950 mAh @3.7 V
Supported Mobile Device SizeThickness range: 6.5-8.5 mm
Max length: 160 mm

INTELLIGENT FLIGHT BATTERY

Capacity1480 mAh
Voltage11.4 V
Max Charging Voltage13.05 V
Battery TypeLiPo 3S
Energy16.87 Wh
Net WeightApprox. 0.2 lbs (95 g)
Charging Temperature Range41° to 104° F (5° to 40° C)

GIMBAL

Controllable RangePitch: -85° to 0°
Stabilization2-axis mechanical (pitch, roll)

VISION SYSTEM

Velocity Range≤22.4 mph (36 kph) at 6.6 ft (2 m) above ground
Altitude Range0-26 ft (0 - 8 m)
Operating Range0-98 ft (0 - 30 m)
Operating EnvironmentDetects clearly patterned surfaces with adequate lighting (lux>15) and diffuse reflectivity (>20%)

WI-FI

Operating Frequency2.4 GHz/5.8 GHz
Max Transmission Distance100 m(Distance), 50 m(Height) (Unobstructed, free of interference)

CHARGER

Input100-240 V; 50/60 Hz; 0.5 A
Output5 V/3 A; 9 V/2 A; 12 V/1.5 A

RECOMMENDED MICRO SD CARDS

ModelSandisk 16/32 GB UHS-1 Micro SDHC
Kingston 16/32 GB UHS-1 Micro SDHC
Samsung 16/32 GB UHS-I Micro SDHC
Sandisk 64 GB UHS-1 Micro SDXC
Kingston 64 GB UHS-1 Micro SDXC
Samsung 64 GB UHS-I Micro SDXC

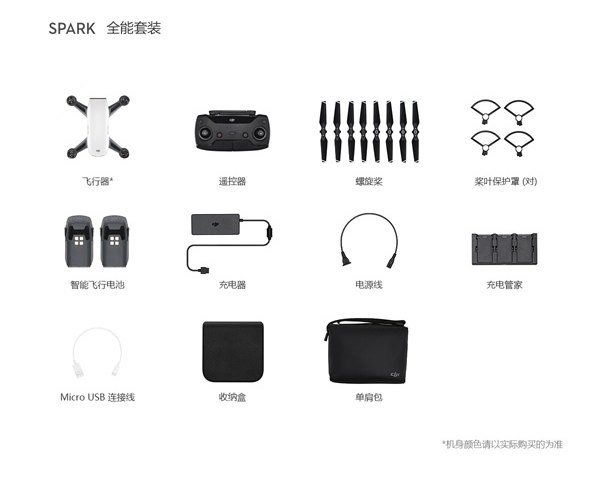

Includes/Requires:
Includes:
