   Radios Radio Sets RF Module / Receivers & Accy 2.4G 6-Channel MICROLITE DSM2 /DSMX Receiver SBUS610E (JR/SPEKTRUM Compatible)
   Radios Receivers & Accessories 5 - 6 Ch. Receivers
SKU:  SBUS610E

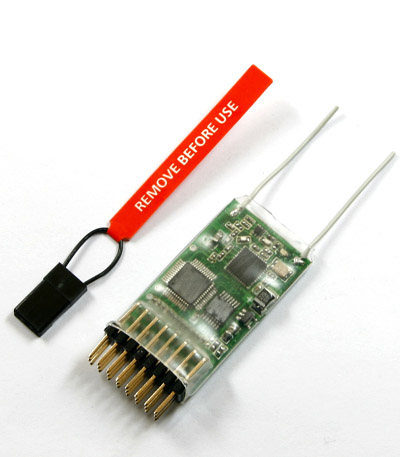

2.4G 6-Channel MICROLITE DSM2 /DSMX Receiver SBUS610E (JR/SPEKTRUM Compatible)
Customers rating.
Add To Wish List
Bookmark and Share
Added:2011/11/09
Updated:2013/04/10
Follow Us on:

S3B586449971

PRICE(USD):
    $12.20   Discontinued  Suggesting Restock
Member PRICE:
    Sign in or Sign up for member price

  Tags: 2.4G  6-Channel  MICROLITE  DSM2  DSMX  Receiver  SBUS610E  JR  SPEKTRUM  Compatible

Features:
Key Features
◆ 6channels
◆ 1channels SBUS output
◆ Preset failsafe system
◆ Compatibility (Spectrum and JR DSM2 and DSMX): DX6I,DX7,DX8,DSX7,DSX9 DSX11,DSX12;
Specifications:
Receiver Specifications:
◆ Type:6-Channel and 1 SBUS output Full-Range DSM2 Receiver and 1 SBUS output
◆ Modulation: DSM2 /DSMX
◆ Band: 2.4GHz
◆ Dimensions (L xWx H):50x30x13mm
◆ Weight: 8g
◆ Voltage Range: 3.6-9.6v
◆ Antenna Length Main RX: 30mm*2

Binding Procedure
1. Put the binding harness into connector location marked BIND. Next apply power to the receiver.
2. To set fail-safe throttle and control surface positions, (minimum throttle and all control surfaces set to neutral is suggested). Press and hold the bind button of transmitter (LED will illuminate), Turn on the transmitter.

3. Receiver LED will change from rapid flashing to slow flashing and a few seconds later when bind is accomplished the LED of both satellite and main receiver will illuminate solid. All fail-safes should be programed correctly now.

4. Remove binding harness from the BIND channel. Restart the receiver by cycling it power off and turn on. All channels should function properly now. You may test fail-safe by holding sticks in corner, cycle transmitter on and off. Surfaces and throttle should return to your preset fail-safe positions.

General Notes: This is not a Spektrum receiver, nor is it a copy of a Spektrum Receiver.
The Spektrum brand is a trademark of Horizon Hobbies USA.

Includes/Requires:
Includes:
1 x receiver
1 x binding plug
Customer Reviews:
Average Customer Review: 5 stars   3 customer review(s).   [Write a review/question]

B****aud Henri
Grade:
role pin receiver sbus610E 6ch
regards
April 04 2013     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]

K****kazi
Grade:
you are holding the receiver with the circuit chips facing yourself and the pins to the right, the bottom port is the bind port,the last on the end is the S-Bus Port.
December 13 2012     Was this review helpful to you?   Yes [ 0 ]   No [ 0 ]    [Reply this review]

G****et-Geek
Grade:
Nice receiver however there are no instructions and no marking on it so just what port is the bind port?. Well I messed with mine today and if you are holding the receiver with the circuit chips facing yourself and the pins to the right, the bottom port is the bind port, unlike real spektrum. I haven't tried the sbus out so I can't give a review on that but also note that if your looking at it from the side with pins to the right and circuit chips facing upward, the top pin is sig, middle v , and bottom v-.
January 08 2012     Was this review helpful to you?   Yes [ 1 ]   No [ 0 ]    [Reply this review]
