   Radios Radio Sets RF Module / Receivers & Accy 2.4G CORONA DSSS 14-Channel RF Module & RX System for Futaba Transmitter (RF CT14F, RX CR14)
SKU:  CT14FU
Browse CORONA

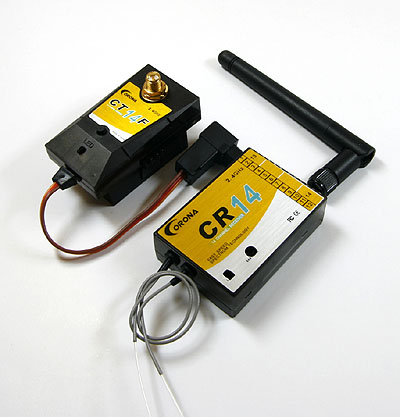

2.4G CORONA DSSS 14-Channel RF Module & RX System for Futaba Transmitter (RF CT14F, RX CR14)
Customers rating.
Add To Wish List
Added:2009/10/10
Updated:2010/01/22
Follow Us on:


  Tags: 2.4G  CORONA  14-Channel  RF Module  Futaba Transmitter

Features:
The new lightweight, advanced technology unit has the following features:
1. Extended operating range 1.5 km range, which has been tested in a real flying environment.

2. A 3dbi gain transmitting antenna ensures the wave lengths are evenly distributed throughout the transmitting horizon ensuring the stable signal.

3. One-key user friendly setup mode.

4. Perfect receiver antennas guarantee the plane receives the signal regardless of the maneuver or attitude.

5. The unique receiver design makes the Corona module easy to install and ensures reliability.

6. Corona's advanced needle design ensures the lightest possible receiver
Specifications:
RF Module Specs:
Type: CT14F DSSS
Size: 54X30X25MM
Weight: 27g
Operating voltage: 5V (Futaba)
Operating current: 150mA
Output Power: <100MW
Compatible with: FUTABA:T14MZ/T12FGH/T12Z

Receiver Specs:
Type: CR14 DSSS
Size: 37.5X52.5X16MM
Weight: 21g
Range: >1500M
Sensitivity: -100dbm
Number of Channel: 14
Operating voltage: 4.8V-6V
Operating current: 40mA
Compatible with: CT14F
Includes/Requires:
Includes:
1 x RF module 2.4G CT14F
1 x antenna
1 x 2.4Ghz 14CH Receiver CR14
Comments:
Binding procedure (please follow the sequence exactly as below, the sequence is very critical for a success binding):
1. Connect the Corona 2.4G module to the trainer port of the transmitter.
2. Switch on the transmitter while holding down the binding button of the module.
3. Power on the receiver while holding down the binding button of the receiver, LED will blink twice.
4. Switch off the receiver and transmitter.
5. Repower on the receiver.
6. Repower on the transmitter. (The receiver MUST be powered on before the transmitter)

The LED of the receiver will blink quickly and light on.
(Contributed by "qzr06725 ")
