   Radios Servos & Accessories Digital Servo & Accessories Power HD LW13MG 60g/ 13Kg-cm Waterproofing Digital Servo
SKU:  LW13MG
Browse Power HD

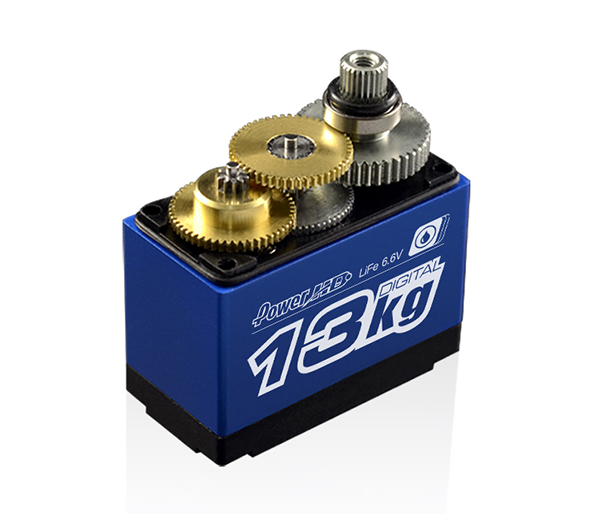

Power HD LW13MG 60g/ 13Kg-cm Waterproofing Digital Servo
Customers rating.
Add To Wish List
Added:2018/12/05
Updated:2018/12/05
Follow Us on:


  Tags: Power  HD  LW13MG  60g  13Kg-cm  Waterproofing  Digital  Servo

Features:

Power HD have introduced their budget-friendly new waterproof HV servo LW-25MG.  It makes use of a CNC-machined all-alloy
case for improved durability, newly wiring outlet structure for enhanced waterproof function, having 36CM wire to compatible
with Traxxas TRX-4 wiring.

It is usable with 6.0V to 8.4V input, offer a torque of up to 25kg-cm at a speed of down to 0.14s.

Specifications:

Power HD LW13MG 60g/ 13Kg-cm Waterproofing Digital Servo


Torque(6.0V): 23.0 kg-cm (319.4 oz/in)


Torque(7.4V): 25.0 kg-cm (347.2 oz/in)


Speed: 0.16 sec (6.0V) │ 0.14 sec (7.4V)


Operating Voltage:6.0 ~ 8.4 DC Volts


Weight: 72 g (2.54 oz)


Bearing Type:Ball Bearing x 2


Motor Type:DC Motor


Gear Type:Copper & Aluminum


Operating Temperature: -20℃~60℃


Working frequence:1520μs / 333hz


Size:40.7 x 20.5 x 38.6 mm ( 1.60 x 0.81 x 1.52 in)
Includes/Requires:
Includes:

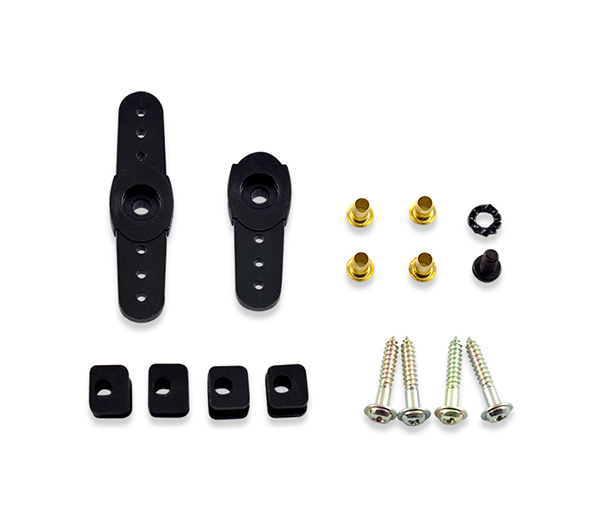

1 x digital servo with servo horns
