   Radios Radio Sets RF Module / Receivers & Accy WFLY 2.4G Futab/Hetic compatible RF module W/WFR09S Receiver
SKU:  WFR09SCB
Browse WFLY

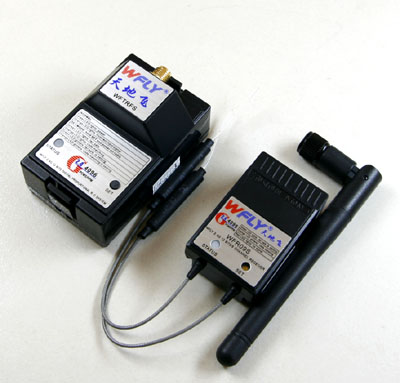

WFLY 2.4G Futab/Hetic compatible RF module W/WFR09S Receiver
Customers rating.
Add To Wish List
Added:2010/06/01
Updated:2010/06/01
Follow Us on:


  Tags: WFLY  2.4G  frequency hopping  spread spectrum  2.4G RF module

Features:
A. Hopping frequency is high Speed.

WFLY 2.4G adopted hopping frequency to DSSS technology and the hopping speed is 4 MS one time.

B. 2.4G receiver outputs high reliable PWM signal to digital servo. Oscilloscope can observe the details with nano second. But other brand receiver PWM signal is not so reliable compared with WFLY 2.4G.

C. High 4096 resolution, high response( with WFT09S and WFT08S transmitter).

D. Recognize PPM, PCMS, 4096 PCMS modulation automatically.

E. With hopping DSSS, WFLY 2.4G is high reliable working with 50 transmitter together.
Specifications:
2.4Ghz SET A (WFTRFS+WFR09S)--2.4GHz module with 9 channel 2.4GHz dual MCU, dual antenna receiver

Module Model: WFTRFS

Application: Airplane, helicopter, glider, car, boat

Band: 2.400GHz-2.4830GHz( varies with different country and region)

Output power: ≤100Mw

Current drain: ≤150mA

Radio frequency working statue checking function

Fail Safe

Modulation: PPM/PCMS 1024 /PCMS 4096

Power: 9.6-12V

Dimension: 59×37×34mm

Weight: 40.9g

Receiver Model: WFR09S

Use in:airplane, helicopter, glider, car, boat

Band:2.400GHz-2.4830GHz ( varies with different country and region)

Receive sensitivity:-97dBm

Fail safe

Modulation:PPM/PCMS 1024/PCMS 4096

Power:4.8-6V

Dimension:44.8×27.9×16.39mm

Weight:14.8g

Range test in ground: more than 900M

Dual MCU, dual antenna receiver: Contains two receivers working independently

Features:

Choose the optimum signal for antenna

More reliable

Quicker response

Better anti-interference

Longer range

Notes:For better preformance, place two antennas in 90 degree
Includes/Requires:
Includes:
1 x RF module 2.4G with antenna WFTRFS
1 x mini receiver 9-channel WFR09S
