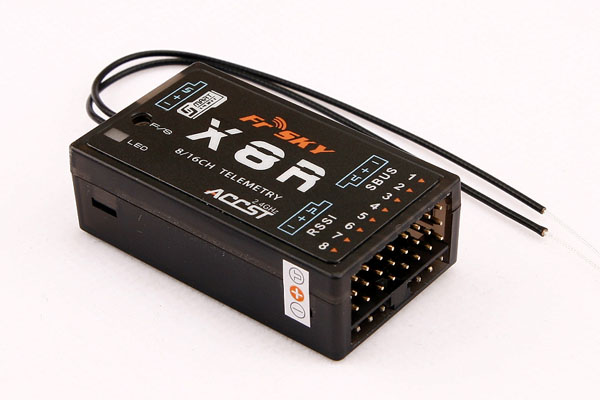

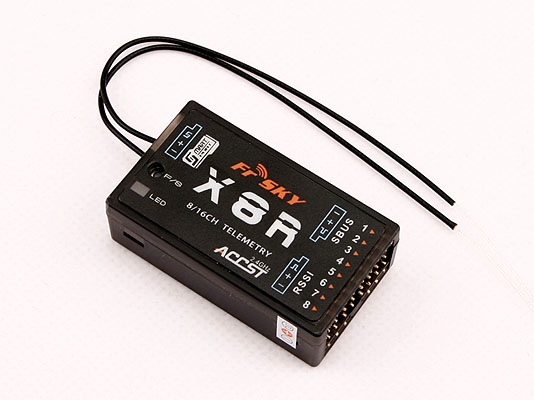

FrSky 2.4G S.Port 8/16ch Telemetry Receiver X8R - Standard Antenna
Customers rating.
Add To Wish List
Added:2013/07/30
Updated:2013/11/27
Follow Us on:


  Tags: FrSky  2.4G  2.4GHZ  two-way  2-way  telemetry  smart port

Features:
THERE ARE TWO VERSIONS OF THIS RECEIVER, ONE WITH STANDARD ANTENNA, ANOTHER WITH PCB TYPE ANTENNA, THE RANGE OF THE PCB VERSION RECEIVER IS ABOUT 20% LONGER THAN THE STANDARD VERSION.

THIS IS THE STANDARD VERSION.

What's New:

- More number of channels: 1~8ch from conventional channel outputs, 1~16ch from SBUS port,
                                                  or combine two X8R to become a 16 channels receiver.
- Parallel two X8R to become a 16 channel receiver.
- With RSSI output: analog voltage output (0~3.3V)
- Smart Port enabled, realizing two-way full duplex transmission.

 Smart Port (S. Port) is a signal wire full duplex digital transmission interface developed by FrSky Electronic Co., Ltd. All products enabled with Smart Port (including XJT module, X8R receiver, new hub-less sensors, new Smart Dashboard,etc), serial port user data and other user input/ output devices can be connected without limitations for numbers or sequences at a high transmission speed.

Specifications:

FrSky 2.4G S.Port 8/16ch Telemetry Receiver X8R - Standard Antenna

Dimension: 46.25×26.6×14.2mm (L × W × H)
Weight: 12.1g
Number of Channels: 16CH (1~8ch from conventional channel outputs, 1~16ch from SBUS port
                                         or combine two X8R to become a 16 channels receiver)
With RSSI output: analog voltage output (0~3.3V)
Operating Voltage Range: 4.0~10V
Operating Current: 100mA@5V
Operating Range: full range (>1.5km)
Firmware Upgradeable Compatibility: FrSky DFT/DJT/DHT/DHT-U in D_mode
                                                                     FrSky Taranis X9D/XJT in D8 mode
                                                                     FrSky Taranis X9D/XJT in D16 mod
Includes/Requires:
Includes:
1 x Receiver
