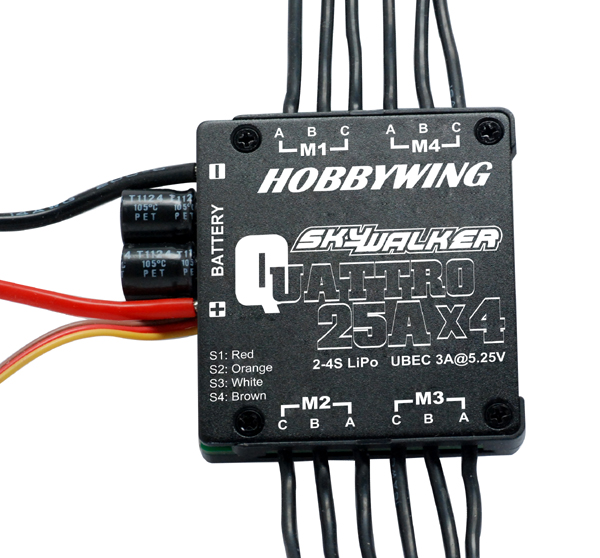

HOBBYWING Skywalker Quattro 25A x 4 4-in-1 Speed Control for Quadcopters

Multi-rotors

Electronic Speed Controller (ESC)

SKU: SW25A4IN1

Browse HOBBYWING

HOBBYWING Skywalker Quattro 25A x 4 4-in-1 Speed Control for Quadcopters

Customers rating.

Manual:

Add To Wish List

Added:2013/03/07
Updated:2017/07/19

Follow @HiModel

Tags: skywalker quattro hobbywing

Features:

4-in-1 ESC from famous manufacturer specially designed for quadcopter application.

Features
1. 4 speed controllers in1board, only 1 pair of battery wire is needed.
2. Powerful switch mode built-in BEC (the BEC voltage outputs from the S3 connector).
3. Multiple protection features: Low voltage cut-off protection / over-heat protection / throttle signal loss protection.
4. The throttle range of each ESC can be calibrated to be suitable for different multi-rotor flying control systems / transmitters.
5. Maximum speed: 210000 RPM (2 poles motor), 70000 RPM (6 poles motor), 35000 RPM (12 poles motor).

Specifications:

MAX PWM input up to 432Hz, and during real test, it works without any problem with flight controls like DJI which claims with max PWM of 500Hz.
